Home /Products/Liquid Filled Pressure Gauge/Stainless Steel 4" Glycerine Manometer with 1/2"BSP Connection

Stainless Steel 4" Glycerine Manometer with 1/2"BSP Connection

100PCS
MOQ
Depends on total quantity
Price
Stainless Steel 4" Glycerine Manometer with 1/2"BSP Connection
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM
Windows: Glass
Range: 0-1000bar
Producing Experience: 10 Years
Factory: Yes,we Are Factory
Feature: Aseismic
Your Idea: Acceptable
Main Market: All Over The World
Service: Complete After-sales Service
Quality: Exceptional Quality
ADVANTAGES: Moisture-proof,Wear Resistant,Eco-friendly,High-durable
Dials Size: 100mm (or Dail Size Made As Demand)
Highlight:

stainless steel glycerine manometer

,

4 inch bottom connection manometer

,

1/2 BSP liquid filled pressure gauge
Basic Infomation
Place of Origin: Qingdao,China
Brand Name: WYYW
Certification: CE & ISO9001
Model Number: YTN-100H
Payment & Shipping Terms
Packaging Details: Inner plastic bag,export carton out side.Pallet optional.
Delivery Time: 5-30days
Payment Terms: TT,LC.Alipay.Western Union
Supply Ability: 30-50k per month
Product Description
Stainless Steel 4" Bottom Connection 1/2"BSP Glycerine Manometer
Glycerine Manometer

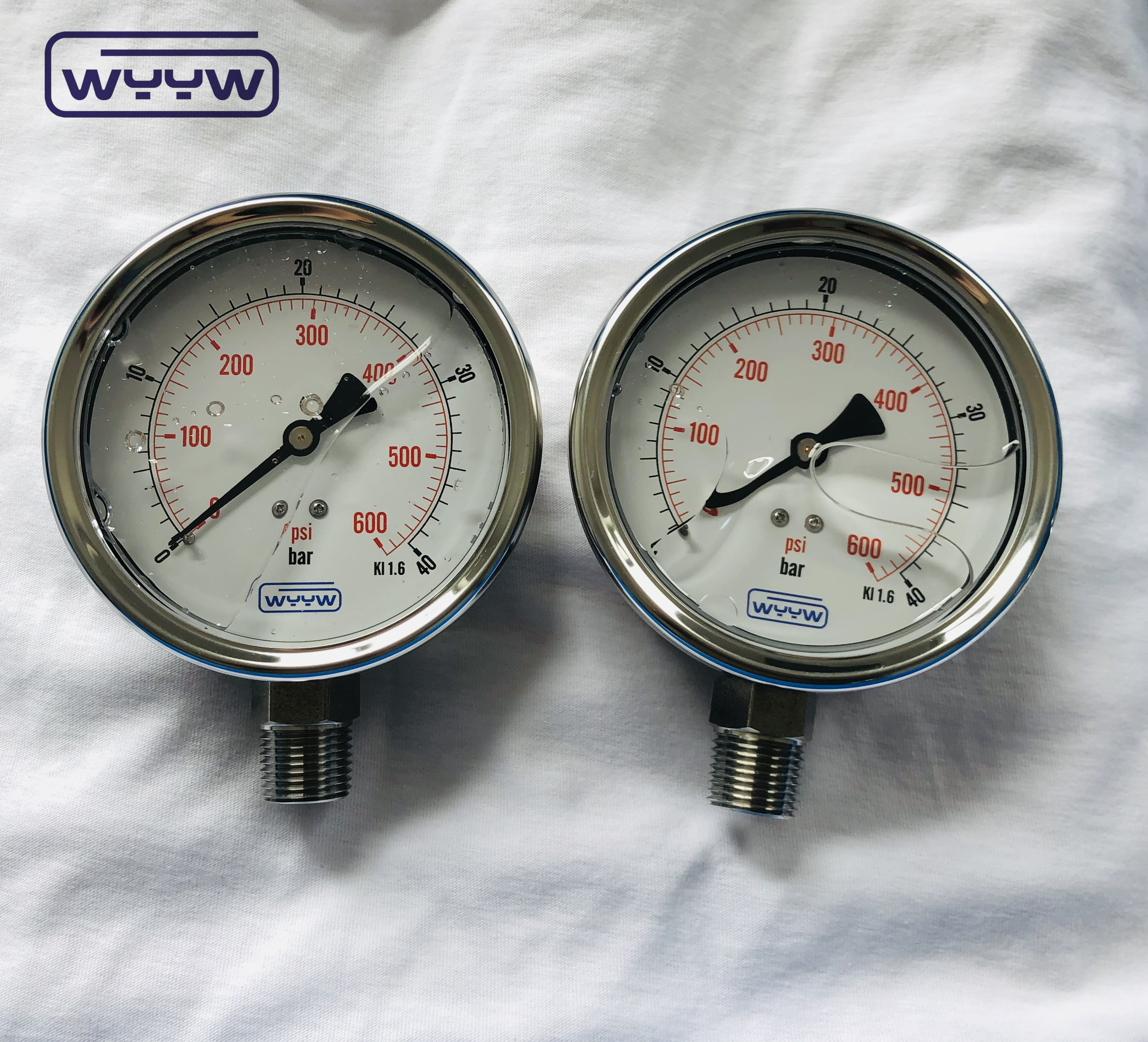

Glycerine manometer product image
Product Specifications
Product specifications diagram
NameAll stainless steel pressure gauge
Dials Size100mm (or dial size made as demand)
CaseStainless steel
PressureMpa, other scale units bar, psi, kg/cm2 etc. optional
RingGasket under the window
MovementStainless steel
SocketStainless steel
Bourdon tubeStainless steel
Dial plate and pointerAluminum
WindowGlass; Plastic
Connection sizes1/8" for 1.5; 1/4 for 2",2.5" case; 1/2 for 4",6"
Connection threadsMetric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
MountingBack
Accuracy1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%
Pressure limitationSteady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value

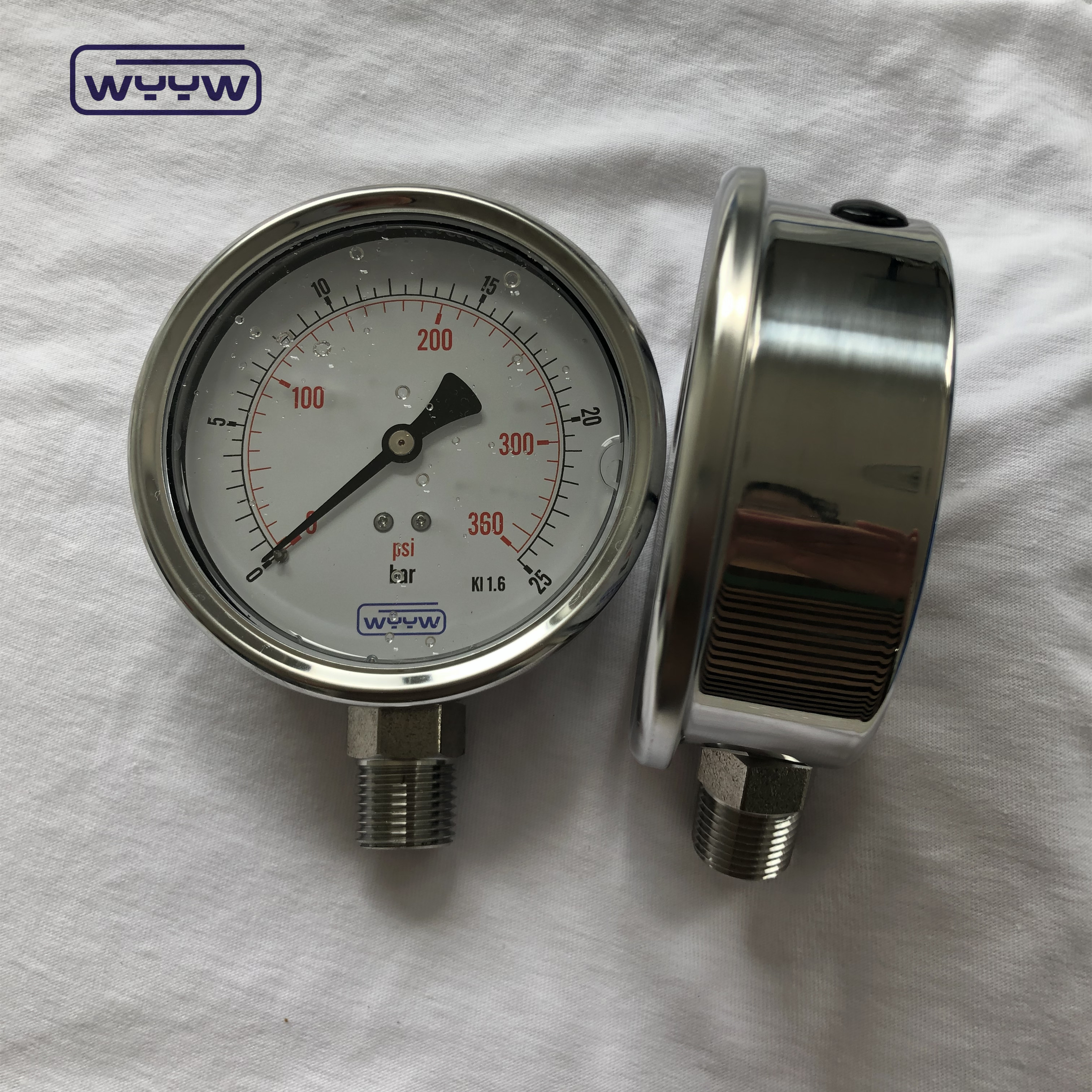

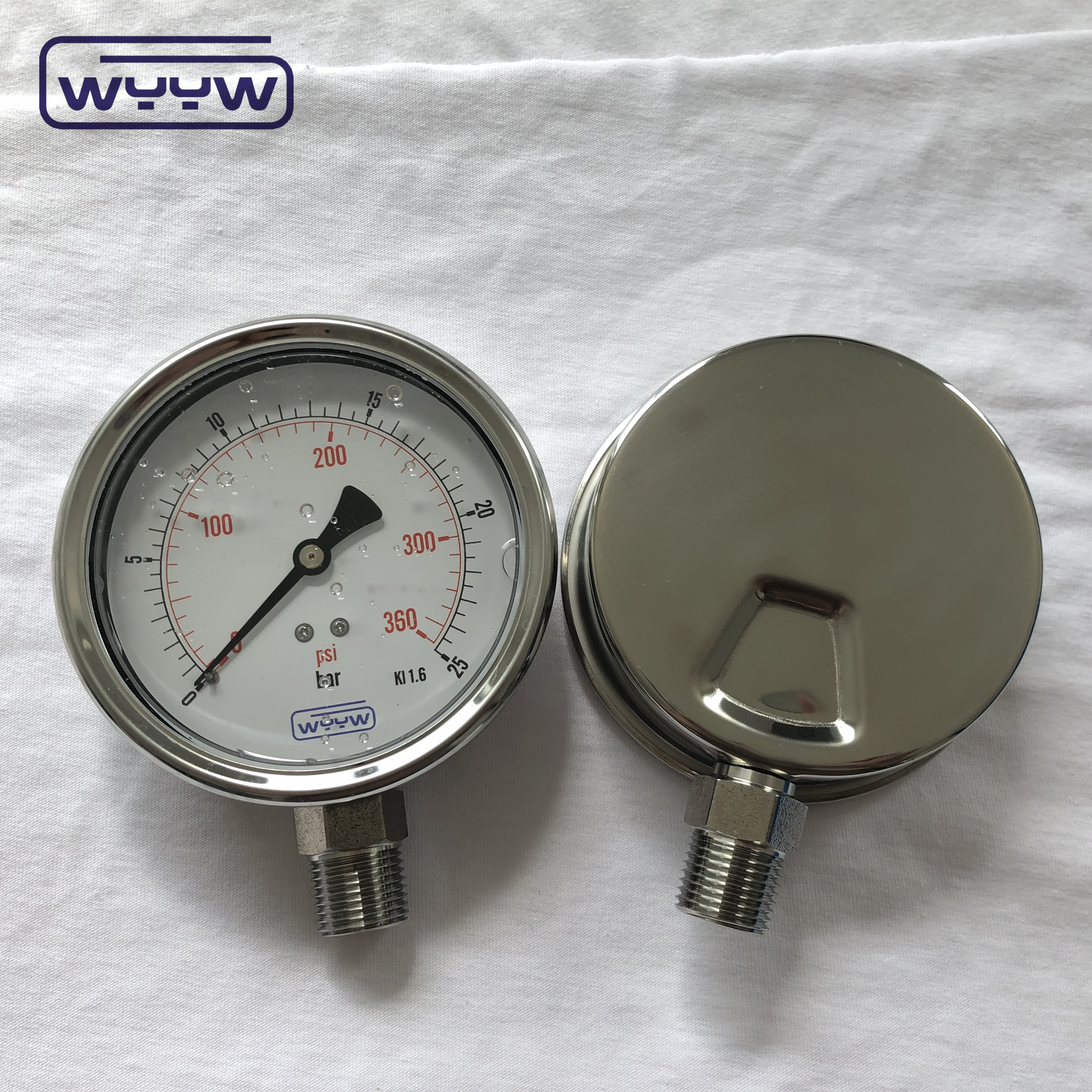

Additional product image Product close-up view Product side view
Product Applications
Product application diagram
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
Company Information
Company facility image
Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.
Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including: pressure gauge, gas regulator, cutting torch and welding torch etc.
Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia, Middle East, America and Australia.
Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.
Manufacturing process image Quality control image
Packaging & Shipping
Packaging and shipping process
Our Advantages
  1. Advance Equipment and Professional Technology: We are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
  2. Best After-sales Service: Our company provide best after-sale service all the time, for our goal is a long trade cooperation term.
  3. Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection, we also have passed ISO9001 and UL certificated.
  4. Quickly Delivery: Our company provides in-time delivery, always satisfy customers needs.
  5. Convenient Purchase and Save Cost: We are skillful manufacturer, so it's convenient for you to purchase. We can provide our high quality products with reasonable price.
  6. OEM Orders: In the past years, we have many OEM orders from very famous company in USA and European market.
Contact Information
Email: sales1@qddzfy.com
WhatsApp and WeChat: +8615153253081
