60mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge

200 pieces
MOQ
$1.98/pieces 200-999 pieces
Price
60mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM
Product Name: Shock Resistant Pressure Gauge
Size: 63mm
Material: Stainless Steel
Accuracy: 2.5%
Pressure Range: 0~250Mpa,bar,mbar,etc
Thread: 1/4''PT/NPT/G/M
Type: Measuring Instruments
Application: Liquid
Case: Stainless Steel
Port: QINGDAO,SHANGHAI,NINGBO
Highlight:

Double Scale SS Pressure Gauge

,

All SS Pressure Gauge

,

Glycerin Filled Pressure Gauge

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Certification: CE
Model Number: YTN-63
Payment & Shipping Terms
Packaging Details: Each gauge packed in one paper box<br>With outer carton box <br>or packed accordiong to client's requirements
Supply Ability: 100000 Piece/Pieces per Month all stainless steel liquid filled glycerin pressure gauge
Product Description

all stainless steel liquid filled glycerin pressure gauge60mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge 0

Product Description

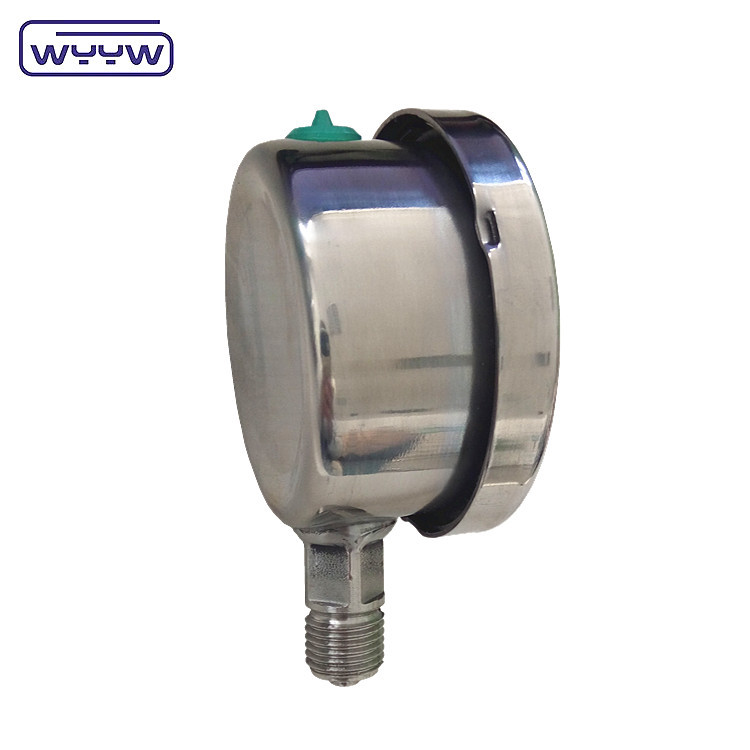

60mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge 1

Name

shock resistant pressure gauge

Dials Size

63mm (or dail size made as demand)

Case

Stainless steel case

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

Gasket under the window

Movement

Stainless steel

Socket

Stainless steel

Bourdon tube

Stainless steel

Dial plate and pointer

Aluminum

Window

Glass; Plastic

Connection sizes

1/8" for 1.5; 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom (Or made as panle, back)

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full scale value
Short time:full scale value

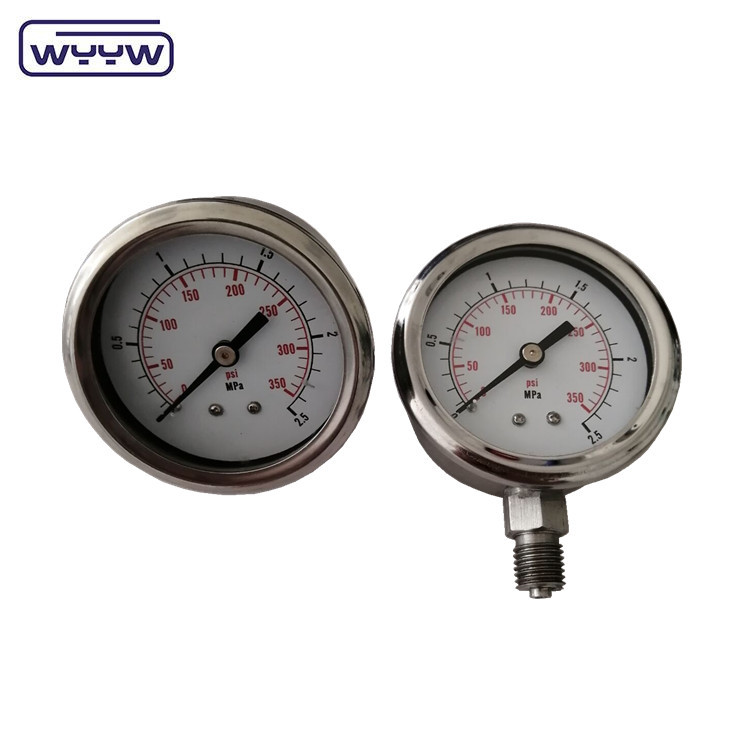

60mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge 2

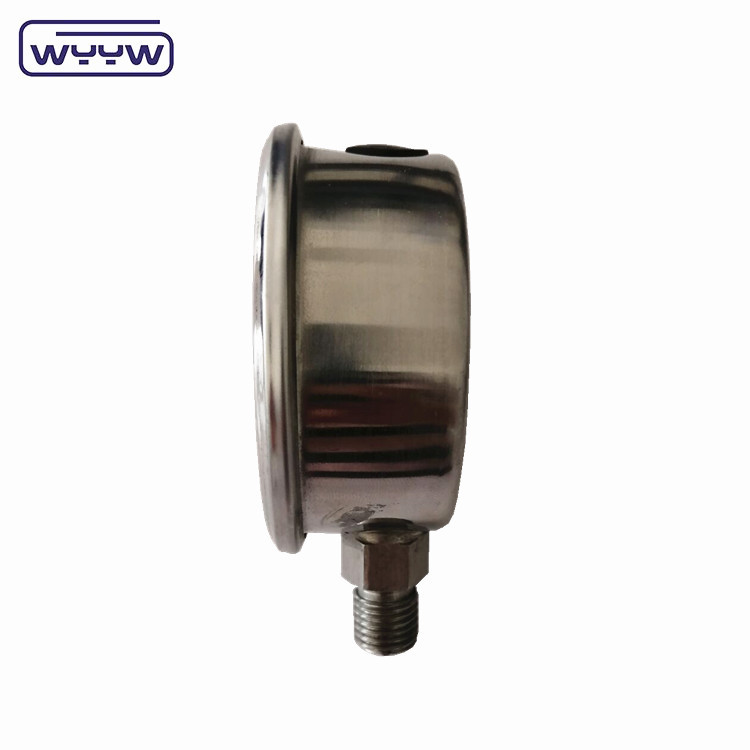

60mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge 3

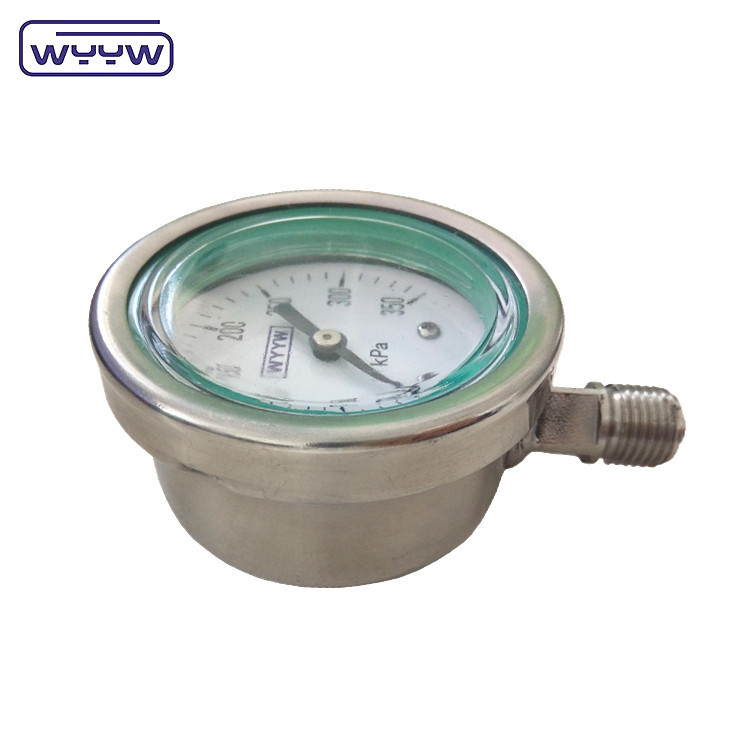

60mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

60mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge 5

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.



Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.



Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

60mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge 660mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge 760mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge 8

Packaging & Shipping

60mm Double Scale All SS Pressure Gauge , Glycerin Filled Pressure Gauge 9

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
