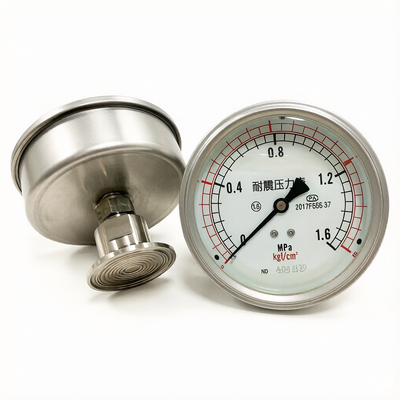

Glass Window High Pressure Regulator Providing Overpressure Protection 150 Percent Of Full Scale Ensuring Stable Pressure Delivery

Product Description:

The High Pressure Gauge is a precision measuring instrument designed to provide accurate and reliable pressure readings in various industrial and commercial applications. Engineered to withstand extreme conditions, this gauge is an essential component for monitoring and controlling high-pressure systems, ensuring safety and efficiency in operations. Whether you are managing hydraulic machinery, gas distribution networks, or other high-pressure environments, this gauge offers dependable performance and durability.

One of the key features of this High Pressure Gauge is its compatibility with multiple port options, including QINGDAO, SHANGHAI, and NINGBO. These ports facilitate seamless integration with different systems and equipment, making the gauge versatile and adaptable for diverse applications. The availability of these ports ensures that users can select the most suitable connection point according to their specific operational requirements and regional preferences.

The gauge is equipped with a robust threading system, offering several thread types such as 1/4'' PT, NPT, G, and M. This variety in thread types enhances the gauge's flexibility and ease of installation, allowing it to fit perfectly with existing piping and instrumentation setups. Additionally, the thread size options of 1/8, 1/4, 3/8, and 1/2 inches provide further customization, accommodating a wide range of pressure measurement needs across different industries.

Designed primarily as a measuring instrument, the High Pressure Gauge excels in delivering precise pressure readings, which are critical for maintaining optimal performance and safety in high-pressure systems. Its analog dial display type offers a clear and straightforward interface for users to monitor pressure levels at a glance. The analog dial is marked with easily readable graduations, enabling quick interpretation of data without the need for digital devices or complex calibration.

In applications involving a High Pressure Regulator, this gauge plays a vital role by providing real-time pressure data that helps in the regulation and control of pressure levels. Accurate pressure measurement is crucial for the effective functioning of a High Pressure Regulator, as it ensures that the pressure does not exceed safe limits, preventing potential damage or hazards. The integration of this High Pressure Gauge with a High Pressure Regulator system enhances overall system stability and reliability, making it an indispensable tool for engineers and technicians.

Durability and quality construction are hallmarks of this High Pressure Gauge. Manufactured with high-grade materials, it is capable of enduring harsh environments, including exposure to corrosive substances and extreme temperatures. This resilience ensures a long service life and consistent performance, reducing the need for frequent replacements and maintenance. Users can trust this gauge to deliver dependable readings over extended periods, even in demanding conditions.

Furthermore, the High Pressure Gauge is designed with user safety and convenience in mind. Its analog dial offers intuitive readability, minimizing the risk of misinterpretation during critical operations. The gauge’s compact size and multiple thread options facilitate easy installation and integration into existing systems, saving time and labor costs.

In summary, the High Pressure Gauge is a versatile and reliable pressure measuring instrument suitable for a wide range of industrial applications. With ports available from QINGDAO, SHANGHAI, and NINGBO, multiple thread types and sizes, and a clear analog dial display, it caters to diverse operational needs. Its essential role in conjunction with a High Pressure Regulator further underscores its importance in maintaining safe and efficient high-pressure systems. For professionals seeking a high-quality, durable, and accurate pressure gauge, this product stands out as an excellent choice.

Features:

• Product Name: High Pressure Gauge
• Thread Standard: NPT, BSP, BSPT
• Warranty: 1 Year
• Pressure Element: Bourdon Tube
• Type: Oil Filled
• Mounting Type: Bottom Mount
• Ideal for use with High Pressure Regulator systems
• Designed to provide accurate readings in High Pressure Regulator applications
• Durable construction suitable for integration with High Pressure Regulator setups

Technical Parameters:

Applications:

The WYYW High Pressure Gauge, model Y-60/100, originating from Qingdao, China, is an essential instrument designed to measure and monitor high pressure levels accurately and reliably. Its robust construction features a Bourdon tube pressure element, ensuring precise readings even under demanding conditions. With an analog dial display, this gauge offers clear and easy-to-read measurements, making it ideal for various industrial and commercial applications.

This high pressure gauge is widely used in conjunction with high pressure regulators to maintain and adjust pressure within safe limits. Whether mounted on the back, bottom, or panel, its versatile mounting options provide flexibility for installation in diverse environments. The gauge’s overpressure protection, rated at 150% of full scale, safeguards the instrument from damage due to sudden pressure spikes, enhancing its durability and longevity.

In industrial settings, such as manufacturing plants, chemical processing, and oil and gas facilities, the WYYW high pressure gauge plays a critical role in monitoring system pressures to ensure safety and operational efficiency. It is often paired with high pressure regulators to precisely control gas or liquid pressures in pipelines, compressors, and hydraulic systems. This combination helps prevent equipment failure and accidents caused by excessive pressure.

Additionally, this high pressure gauge is suitable for use in laboratory environments where accurate pressure measurement is vital for experimental processes and quality control. Its analog dial provides real-time pressure readings, enabling technicians to make timely adjustments using high pressure regulators. The 1-year warranty offered by WYYW assures users of the product’s reliability and quality.

In summary, the WYYW Y-60/100 high pressure gauge is an indispensable tool for any application requiring precise pressure monitoring and control. Its durable Bourdon tube, flexible mounting options, and overpressure protection make it a dependable partner for high pressure regulators across various industries. Whether utilized in industrial, commercial, or laboratory scenarios, this gauge ensures accurate pressure readings and contributes to overall system safety and performance.

Support and Services:

Our High Pressure Gauge is designed to provide precise and reliable pressure measurements in demanding environments. To ensure optimal performance and longevity of your gauge, please follow the installation and maintenance guidelines provided.

Installation:

1. Verify that the gauge specifications match the application requirements, including pressure range and connection type.

2. Use appropriate tools to install the gauge, avoiding excessive force that may damage the instrument.

3. Ensure that the pressure source and gauge are compatible to prevent overpressure situations.

4. Install the gauge in a location that protects it from extreme temperatures, vibrations, and corrosive substances.

Maintenance:

1. Periodically inspect the gauge for signs of damage or wear.

2. Calibrate the gauge regularly to maintain measurement accuracy, following industry standards.

3. Clean the gauge exterior with a soft, damp cloth; avoid using harsh chemicals or solvents.

4. If the gauge exhibits erratic readings or damage, discontinue use and have it serviced by qualified personnel.

Our technical support team is committed to assisting you with any questions or issues related to your High Pressure Gauge. Please refer to the user manual for detailed instructions and troubleshooting tips.

Packing and Shipping:

Our High Pressure Gauge is carefully packaged to ensure maximum protection during transit. Each unit is securely placed in a custom-fitted foam insert within a sturdy corrugated cardboard box to prevent any movement or damage.

To further safeguard the product, the box is sealed with tamper-evident tape and labeled with handling instructions, including “Fragile” and “Handle with Care.”

For shipping, we use reliable carriers that offer tracking and insurance options to guarantee the safe and timely delivery of your High Pressure Gauge.

Bulk orders are packed in reinforced cartons with additional cushioning materials to maintain product integrity throughout the shipping process.

We also offer eco-friendly packaging options upon request to support sustainable shipping practices.
