63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount

100 pieces
MOQ
Depends on total quantity
Price
63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Y
Customized Support: OEM, ODM, OBM
Material: Black Steel Case
Pressure Range: Vacuum / Positive
Bourdon Tube: Bellows
Style: Bottom Mount
Connection Threads: Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Port: Qingdao, Shanghai, Ningbo, Guangzhou
Dial Size: 63/100mm
Highlight:

63mm black steel pressure gauge

,

100mbar capsule pressure gauge

,

bottom mount gas pressure gauge

Basic Infomation
Place of Origin: Qingdao,China
Brand Name: WYYW
Certification: CE & ISO9001
Model Number: YE-63
Payment & Shipping Terms
Packaging Details: Inner plastic bag,export carton out side.Pallet optional.
Delivery Time: 5-30days
Payment Terms: TT,LC.Alipay.Western Union
Supply Ability: 30-50k per month
Product Description
63mm 100mbar 10kPa Capsule Pressure Gauge For Gas
Product Overview

Capsule pressure manometer designed for precise gas pressure measurement applications.

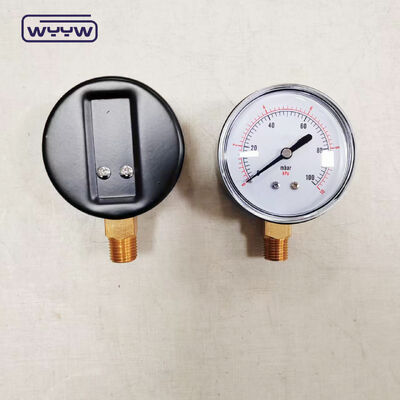

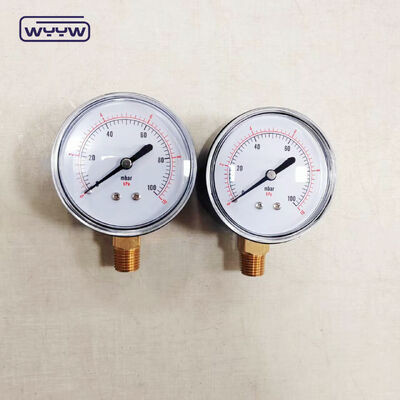

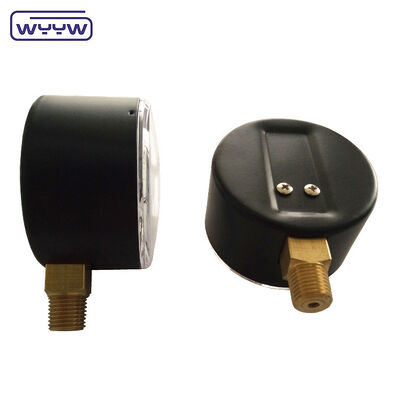

63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount 0 63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount 1
Technical Specifications
Parameter Specification
Name Low pressure / Capsule pressure gauge
Dials Size 63/100mm (or custom size available)
Case Black Steel, Stainless steel
Pressure Mpa, other scale units bar, psi, kg/cm2 etc. (optional)
Ring Gasket under the window
Movement Brass, SS
Socket Brass, SS
Bourdon tube Phosphor Bronze, SS
Dial plate and pointer Aluminum
Window Glass; Safety Glass
Connection sizes 1/8" for 1.5; 1/4 for 2", 2.5" case; 1/2 for 4", 6"
Connection threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom / Back
Liquid Dry, silicone or glycerine filled
Accuracy 2.5% (63mm) - 1.6% (100mm and 150mm)
Pressure limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value
63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount 2 63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount 3 63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount 4
Product Applications
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount 5
Company Information

Qingdao DaZeFengYang is a professional pressure gauge and hardware tools manufacturer, and a member of China National Hardware Association.

Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already obtained ISO9001 and CE certificates for all our products, including pressure gauges, gas regulators, cutting torches and welding torches.

Over the years of development, we now offer an impressive selection of products, both special and standard, with competitive prices and reliable deliveries. Our speedy sales and after-sales service make our company attractive to customers worldwide, especially distributors and importers from Europe, Southeast Asia, Middle East, America and Australia.

Welcome to contact us by phone, email or visit our company. We sincerely hope to create a wonderful future together with you.

63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount 6 63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount 7 63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount 8
Packaging & Shipping
63mm 100mbar Black Steel Case Capsule Pressure Gauge for Gas with Bottom Mount 9
Our Advantages
  • Advanced Equipment and Professional Technology: Committed to offering high-quality gauges with advanced equipment and professional technology for customers worldwide.
  • Best After-sales Service: Providing excellent after-sale service for long-term trade cooperation.
  • Serious Inspection Procedure with Excellent Quality: All pressure gauges undergo 100% inspection, with ISO9001 and UL certification.
  • Quick Delivery: Providing timely delivery to always satisfy customer needs.
  • Convenient Purchase and Cost Savings: As a skilled manufacturer, we offer high-quality products at reasonable prices.
  • OEM Orders: Extensive experience with OEM orders from renowned companies in USA and European markets.
