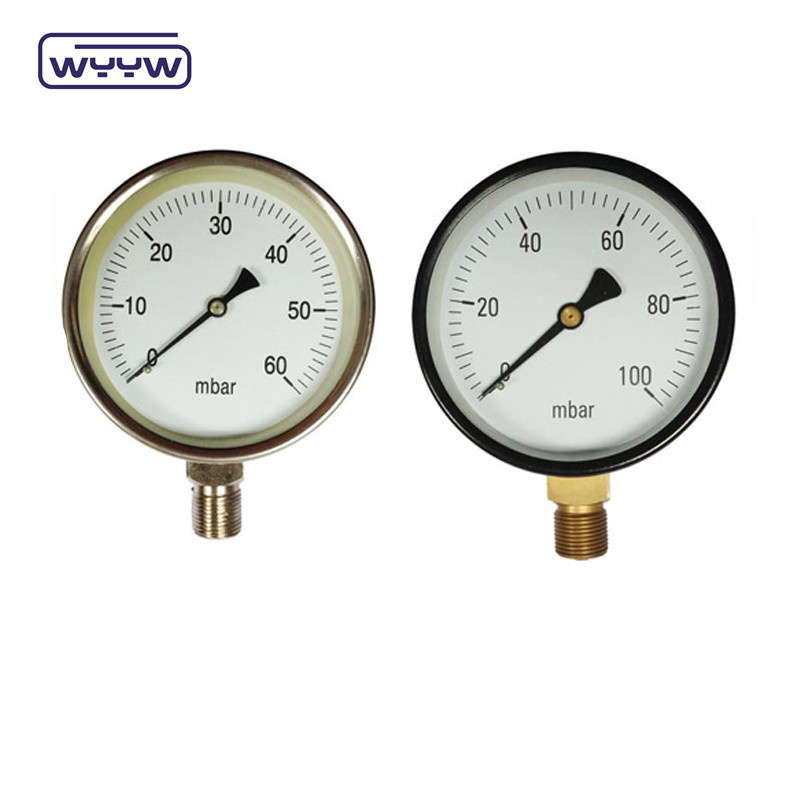

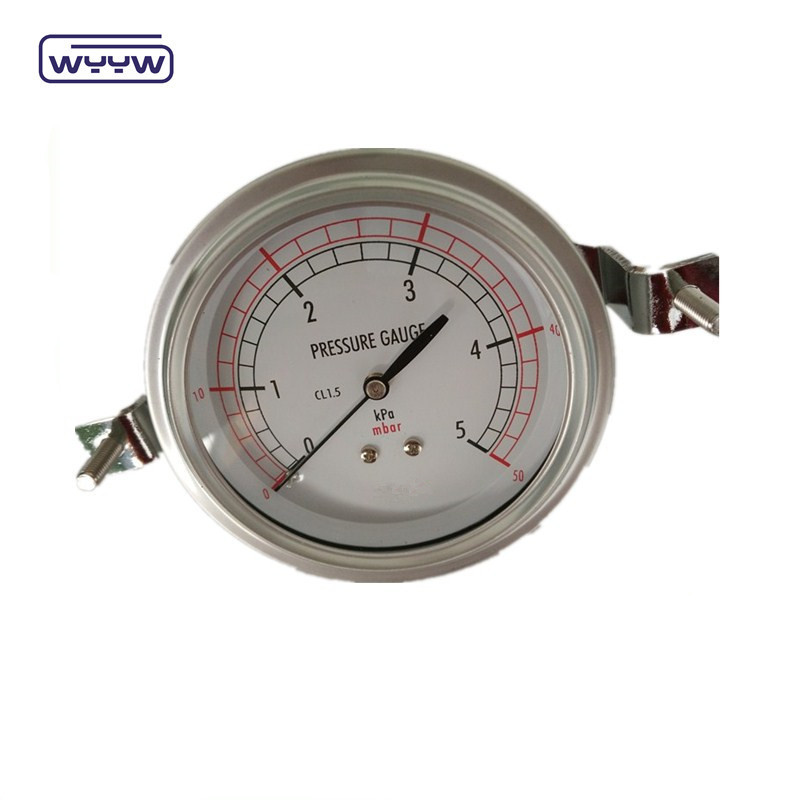

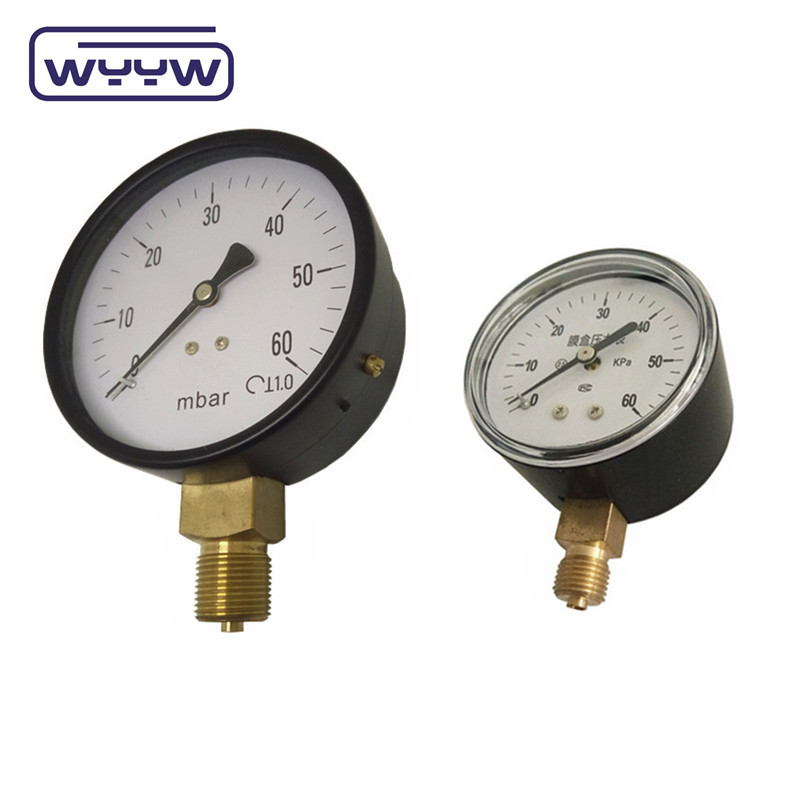

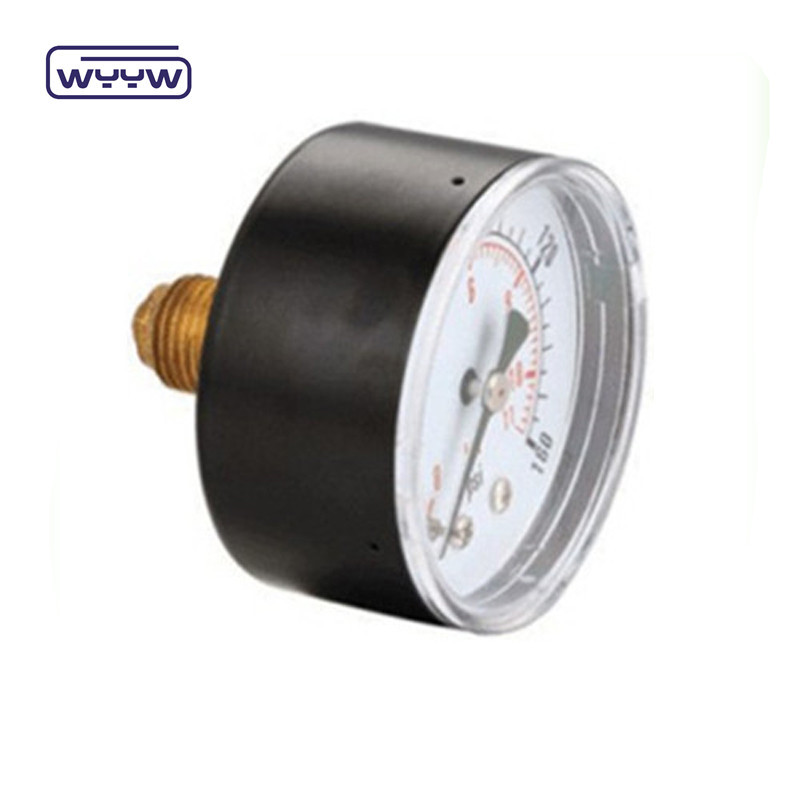

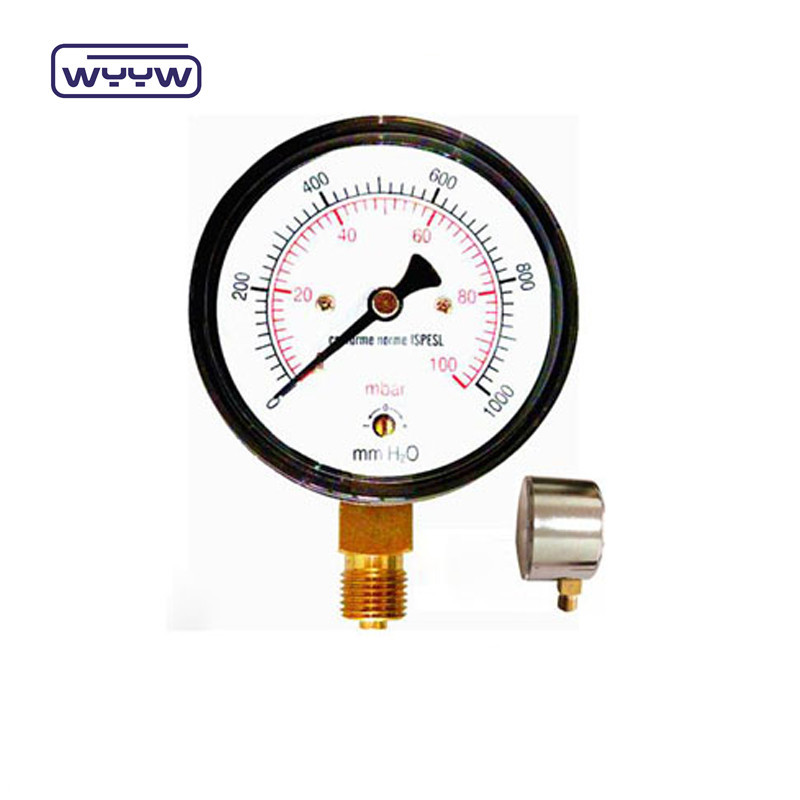

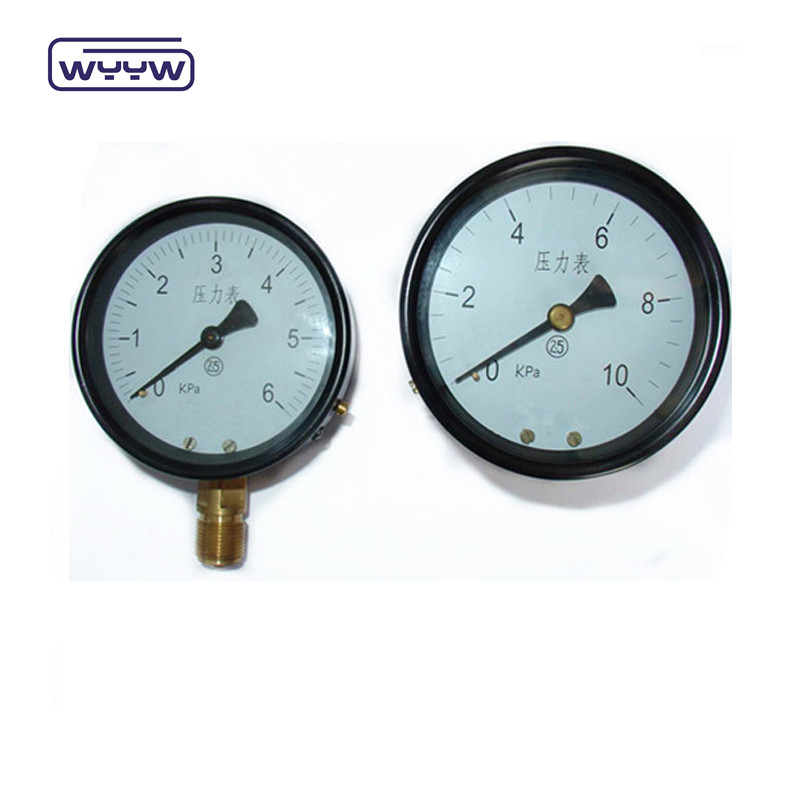

Name: 80mm Kpa Mbar Bellows Pressure Gauge Low Pressure Manometer Radial Connection
Brand: Qingdao Dazefengyang Meter& Welding Instruments Co., Ltd.
SKU: YE-80
Price: 55.00 USD
Availability: InStock

80mm Kpa Mbar Bellows Pressure Gauge Low Pressure Manometer Radial Connection

100 units

MOQ

$11.00/units 100-499 units

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Customized Support: OEM, ODM

Case Size: 80mm

Accuracy: 1.6%

Connection Thread: NPT,BSP(G,PF),BSPT(ZG,PT)1/2"

Warranty: 1 Year

Material: Black Steel Or SS Case ,brass Internals And Connection

Feature: Low Pressure Gauge

Port: Qingdao

Highlight:

Mbar Bellows Pressure Gauge

80mm Bellows Pressure Gauge

Low Pressure Manometer Radial Connection

Basic Infomation

Place of Origin: Shandong, China

Brand Name: WYYW

Certification: CE,ISO

Model Number: YE-80

Payment & Shipping Terms

Packaging Details: 1pc/small box, 30pcs/carton. or as customer's demand.

Supply Ability: 1000000 Unit/Units per Month low pressure manometer

Gallery

80mm Kpa Mbar Bellows Pressure Gauge Low Pressure Manometer Radial Connection

Product Description

Radial Connection Accuracy 1.6% Capsule 80mm Kpa Mbar Bellows Pressure Gauge Low Pressure Manometer

low pressure manometer

Product Description

Dial size	2.5"(63mm),4"(100mm),6"(150mm)
Case	Black steel or SS
Pressure range	0-1.6,2.5,4,6,10,16,25,40,60kpa, mpa available
Ring	Non, roll and bayonet type
Movement	Brass, SS
Socket	Brass, SS
Bellows	Phosphor bronze, SS
Dial plate and pointer	Aluminum
Window	Glass, safe glass
Connection sizes	1/8" for 1.5"case;1/4" for 2",2.5" case; 1/2" & 3/8" for 4" and 6" case
Connection threads	Metric thread, NPT, BSP(G,PF),BSPT(ZG,PT)
Liquid	dry, silicone,glycerine filled
Mounting	Bottom, back
Accuracy	2.5"(63mm)-2.5%; 4"(100mm),6"(150mm)-1.6%
Pressure limitation	Steady: 3/4 x full scale value Fluctuation:2/3 x full scale value Short time: full scale value

More products

Application:

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

Packaging & Shipping

80mm Kpa Mbar Bellows Pressure Gauge Low Pressure Manometer Radial Connection 3

Our service

1.Sample:samples are available,we have a good relationship with DHL,Fedex and other express company,we can decrease your cost for samples

2.Customise service:customise logo and OEM service is available for all clients

3.After service:if any questions about our products,we will not hesitate to solve it with our clients.Over more than 10 years exporting experience,we proved to be professional,reliable and competable.
