Home /Products/High Pressure Gauge/60mm 100mm High Pressure Meter Gauge With Radiating Tube Water

60mm 100mm High Pressure Meter Gauge With Radiating Tube Water

100 units
MOQ
$3.00/units 100-999 units
Price

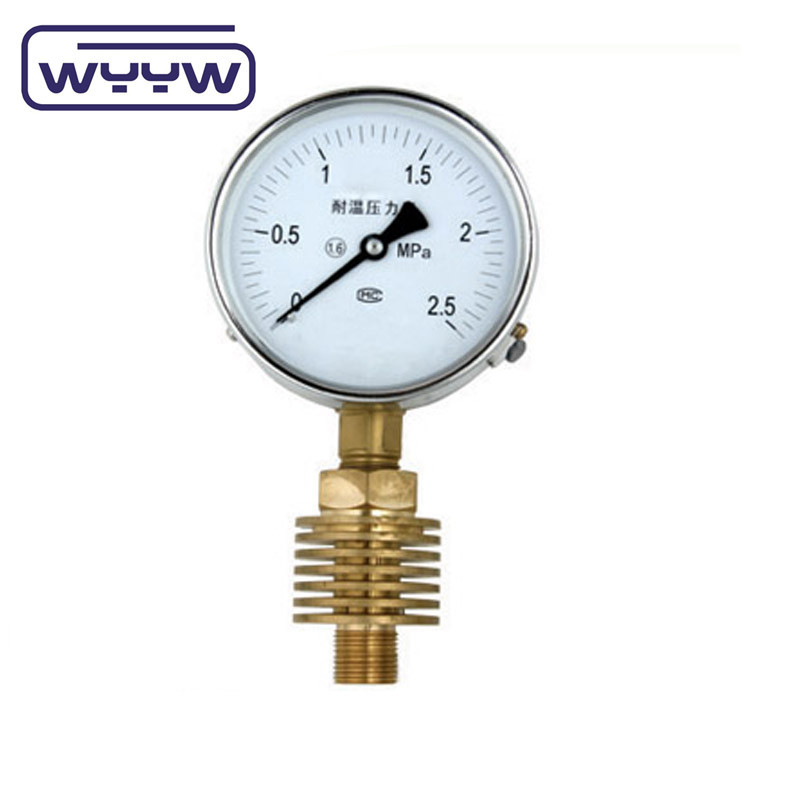

60mm 100mm High Pressure Meter Gauge With Radiating Tube Water
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Material: Steel, Stainless Steel
Accuracy: 1,1.6
Thread Size: 1/8, 1/4, 3/8 And 1/2 Inches
Thread Standard: NPT,BSP,BSPT
Usage: Measuring Instruments
Customized Support: OEM, ODM
Thread: 1/2/ 1/4/ 1/8PT/NPT/G/M
Window: Glass
Size: 60mm 100mm
Port: Qingdao
Highlight:

100mm High Pressure Meter

,

High Pressure Meter Gauge

,

60mm High Pressure Meter
Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Model Number: YCG- series
Payment & Shipping Terms
Packaging Details: each unit is packing in one paper box or packed accordiong to client's requirements
Supply Ability: 100000 Unit/Units per Month high pressure meter
Product Description

High Temperature Pressure Gauge With Radiating Tube Water High Pressure Meter Gauge





 high pressure meter

ORDERING INFORMATION

Model / Nominal size / Scale range / Material / Options



Note: The requirements can be customized



Description



Dials Size 6" 150mm
Pressure range 0-250Mpa,other scales optional
Case  stainless steel, steel
Bezel stainless steel, steel or wihtout
Movement stainless steel, brass
Socket stainless steel, brass
Connection sizes 1/8, 1/4, 3/8 and 1/2 inches
Connection threads NPT, BSP (G, PF), BSPT (ZG, PT)
Connection mounting bottom and back
Connector stainless steel, Brass
Bourdon tube stainless steel, phosphor bronze
Dial and pointer aluminum
Dial plate single and dual scale (psi, kpa,mpa, bar, kg/cm2 avaible
Window tempered glass, polycarbonate
Accuracy range 1%, 1.6%
Working temperture -20°C- 70°C
Filled medium glycerine,Silicone



Production Process

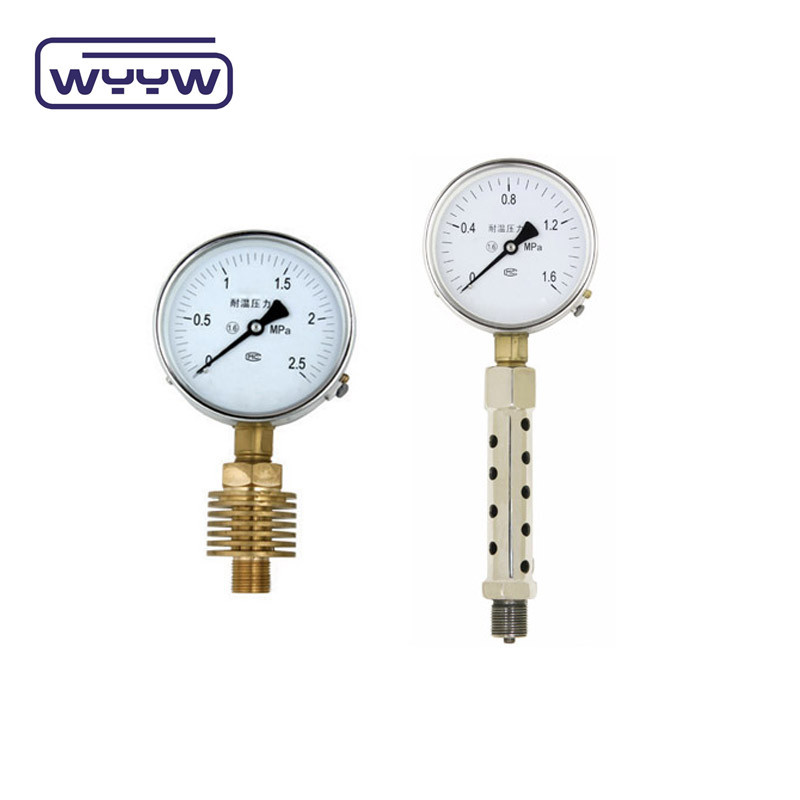

60mm 100mm High Pressure Meter Gauge With Radiating Tube Water 0



Packaging & Shipping

    each unit is packing in one paper box or packed accordiong to client's requirements

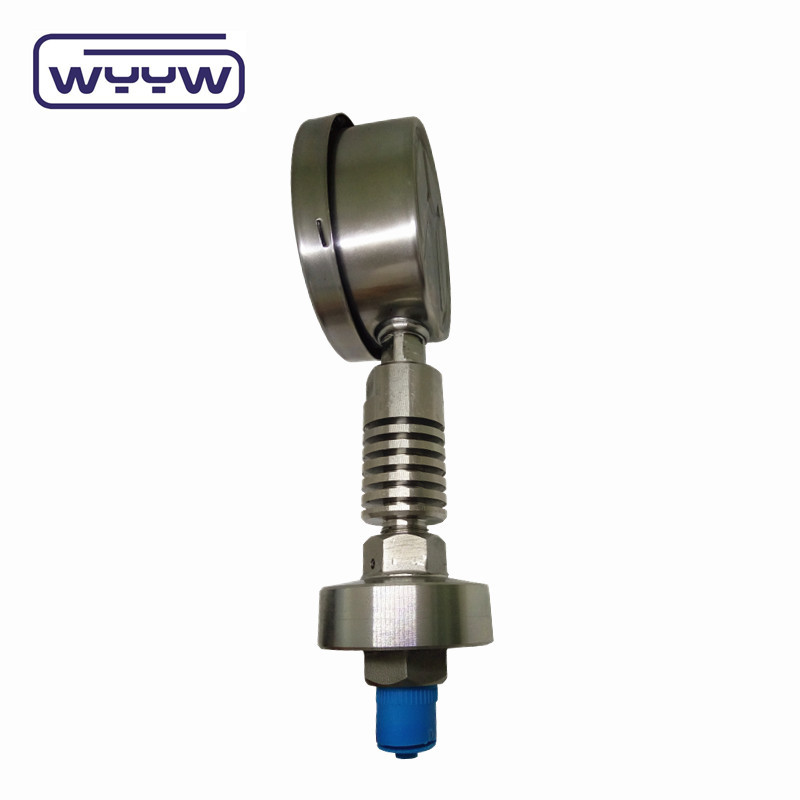

60mm 100mm High Pressure Meter Gauge With Radiating Tube Water 1





Our Services



Warranty: All our products have one year warranty.

*Certificate:ISO9001, CE. SGS

*Small order acceptable

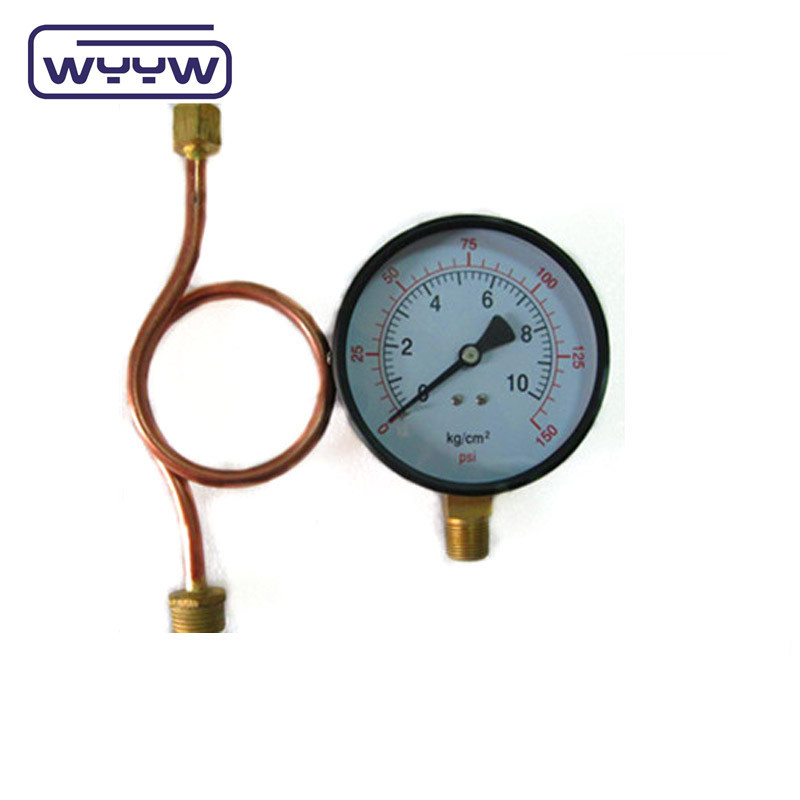

60mm 100mm High Pressure Meter Gauge With Radiating Tube Water 2

Company Information



a). manufacturer in the city of Qingdao , one of the most famous sea port in China.

B). our product ranges: pressure gauge, pressure regulator, cutting&welding torch etc.

60mm 100mm High Pressure Meter Gauge With Radiating Tube Water 3

  Hereby, We sincerely welcome your visit
