Home /Products/Electric Contact Pressure Gauge/60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange

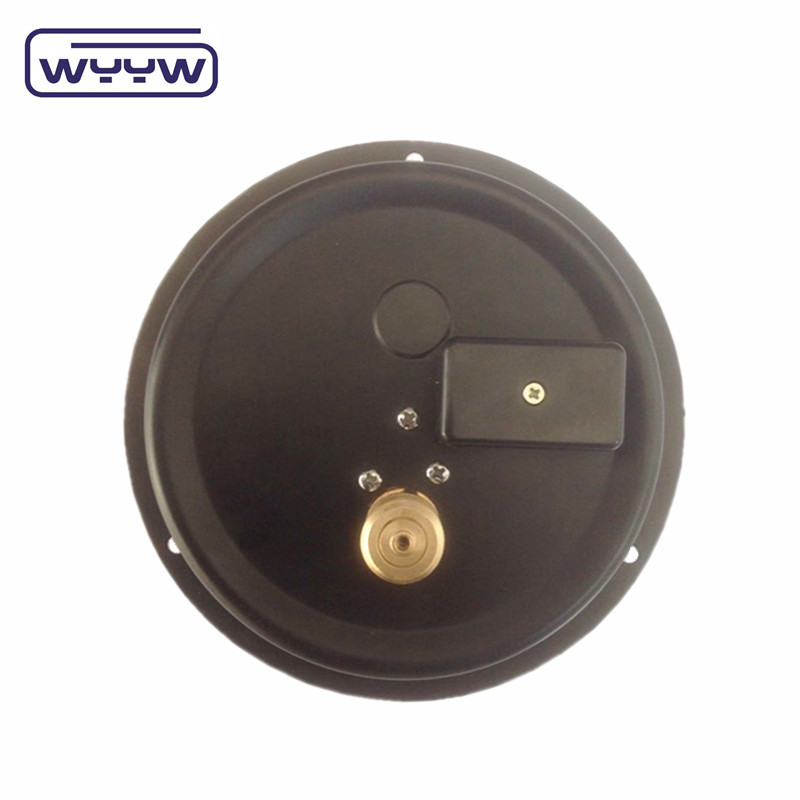

60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange

50 units
MOQ
$20.00/units 50-99 units
Price
60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM
Case Size: 60mm
Pressure Range: 0-250MPa
Accuracy Class: 2.5%
Connection Size: NPT, BSP(G,BF),BSPT(ZG,PT) 1/4"
Mounting: Bttom, Back, Panel
Port: Qingdao
Highlight:

60mm Hydraulic Jack Pressure Gauge

,

Hydraulic Jack Pressure Gauge Manometer
Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Certification: CE,ISO
Model Number: YX-60C
Payment & Shipping Terms
Packaging Details: Seaworthy packing, each one is packed with rubber boot in paper bags, 30 bags in one carton box. or as customer's request.
Supply Ability: 1000000 Unit/Units per Month pressure gauge with back flange
Product Description
pressure gauge with back flange
Product Description



Dials size 2.5"(63mm),4"(100mm),6"(150mm)
Case SS304, black steel
Pressure range 0-100MPa, other scale unites bar, psi, kgf/cm2,ect. opitional
Movement SS, brass
Socket SS, brass
bourdon tube phosphor bronze, SS
Dial plate and pointer Aluminum
Window Glass, safe glass
Connection size 1/4" for 2", 2.5"case, 1/2" & 3/8" for 4" and 6" case
Connection thread Metric thread, NPT, BSP(G,PF),BSPT(ZG,PT)
Liquid Silicone, glycerine or dry
Mounting Bottom, back and panel
Accuracy 2.5"(63mm)-2.5%; 4"(100mm) and 6"(150mm)-1.6%
Control Upper and lower limits contact control
Working voltage AC220V, DC380V and DC24V opitional
Pressure limitation

Steady: 3/4x full scale value

Fluctuation :2/3x full scale value

Short time: full scale value
More products60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange 0
60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange 1
Production process
60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange 2
60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange 3



Packaging & Shipping

 60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange 4





Company Information

 60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange 560mm Hydraulic Jack Pressure Gauge Manometer With Back Flange 660mm Hydraulic Jack Pressure Gauge Manometer With Back Flange 7





Our service

1.Sample:samples are available,we have a good relationship with DHL,Fedex and other express company,we can decrease your cost for samples

2.Customise service:customise logo and OEM service is available for all clients

3.After service:if any questions about our products,we will not hesitate to solve it with our clients.Over more than 10 years exporting experience,we proved to be professional,reliable and competable.



 If you are interested in our products, welcome to send inquiry !
