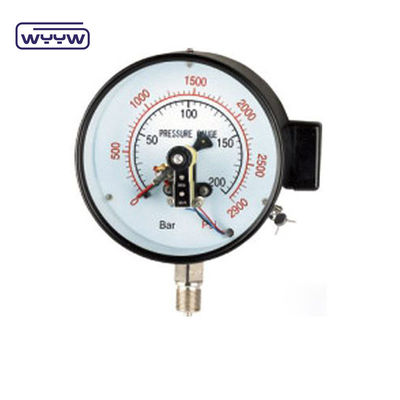

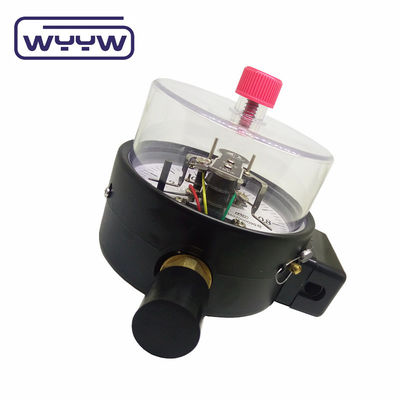

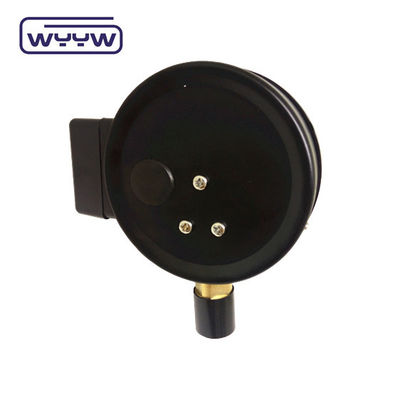

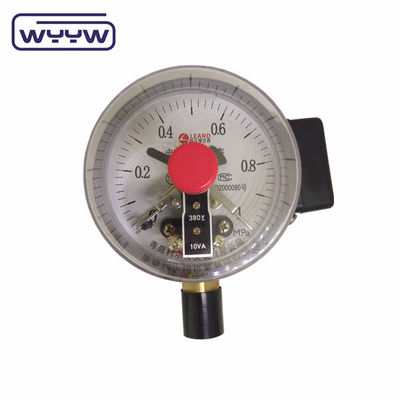

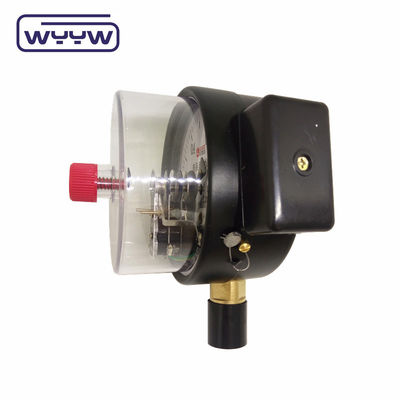

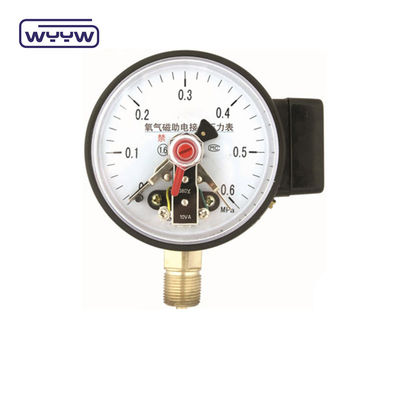

NO+NO Black Steel Case 1.6MPa 100mm 380V Electric Contact Manometer AC Pressure Gauge

100 pieces
MOQ
$8.00/pieces 100-499 pieces
Price
NO+NO Black Steel Case 1.6MPa 100mm 380V Electric Contact Manometer AC Pressure Gauge
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM
Size: 100mm
Payment: Various Payment Methods
Material: Stainless Steel
Keyword: Pressure Gauge
Product Name: Electric Contact Pressure Gauge
Range: As Demands
Accuracy: 1.6%
Highlight:

380V Electric Contact Manometer

,

1.6MPa AC Pressure Gauge

,

100mm AC Pressure Gauge

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Certification: CE,ISO
Model Number: YX-100
Payment & Shipping Terms
Packaging Details: ac pressure gauge<br>Each unit is packed in one paper box, 30 box in one carton . As customer requested.
Supply Ability: 100000 Piece/Pieces per Month ac pressure gauge
Product Description

ac pressure gauge

NO+NO Black Steel Case 1.6MPa 100mm 380V Electric Contact Manometer AC Pressure Gauge 0

Product Description

NO+NO Black Steel Case 1.6MPa 100mm 380V Electric Contact Manometer AC Pressure Gauge 1

Name

pressure gauge

Dials Size

1.5"(40mm), 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)

Case

Black steel, ABS or chrome plated

Pressure range

0 -250Mpa,other scale units bar, psi, kg/cm2 etc.optional

Movement

SS304 and 316

Socket

BSS304 and 316

Bourdon tube

SS304 and 316

Dial plate and pointer

Aluminum

Window

Glass or Plastic

Connection sizes

1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case

Connection threads

NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom,back and panel

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

NO+NO Black Steel Case 1.6MPa 100mm 380V Electric Contact Manometer AC Pressure Gauge 2

NO+NO Black Steel Case 1.6MPa 100mm 380V Electric Contact Manometer AC Pressure Gauge 3

NO+NO Black Steel Case 1.6MPa 100mm 380V Electric Contact Manometer AC Pressure Gauge 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

NO+NO Black Steel Case 1.6MPa 100mm 380V Electric Contact Manometer AC Pressure Gauge 5
