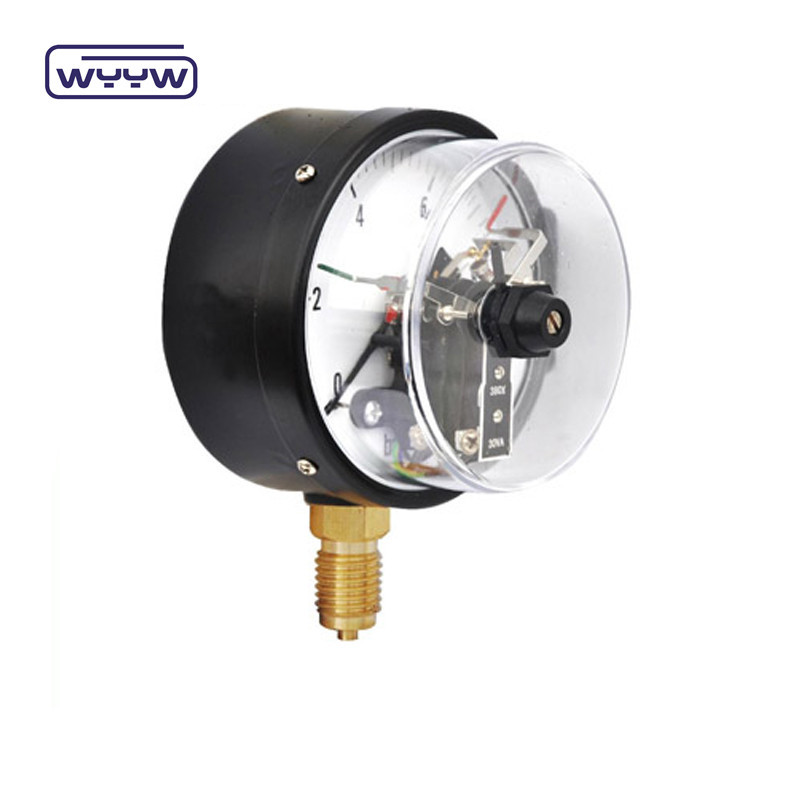

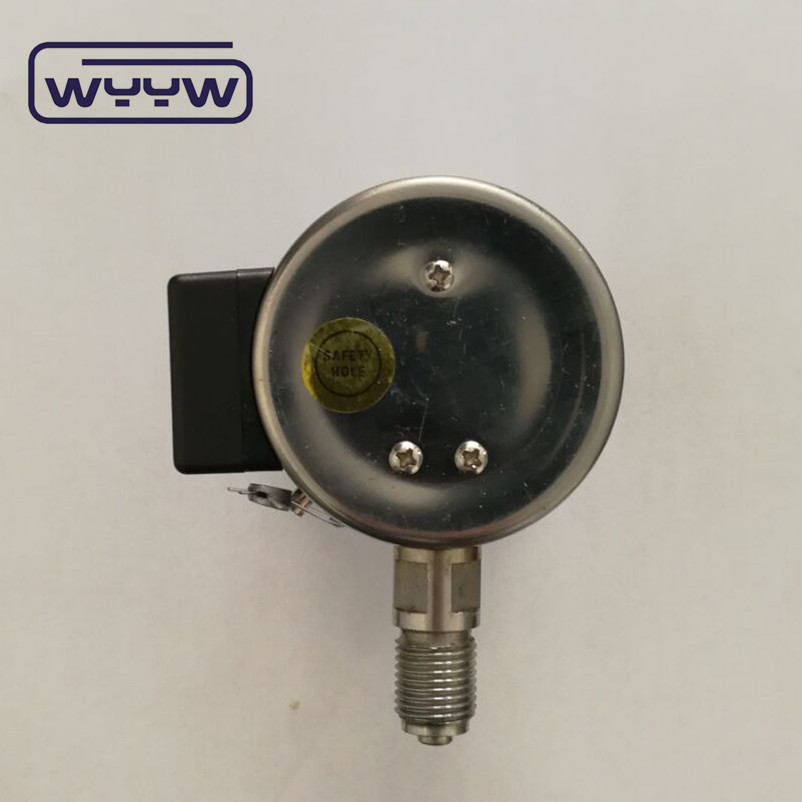

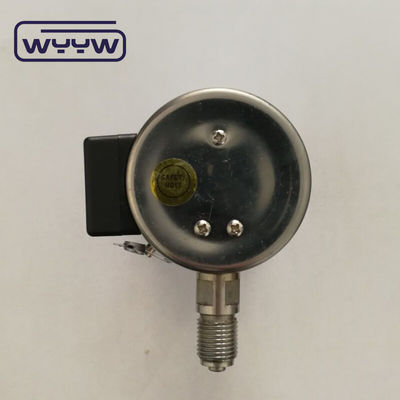

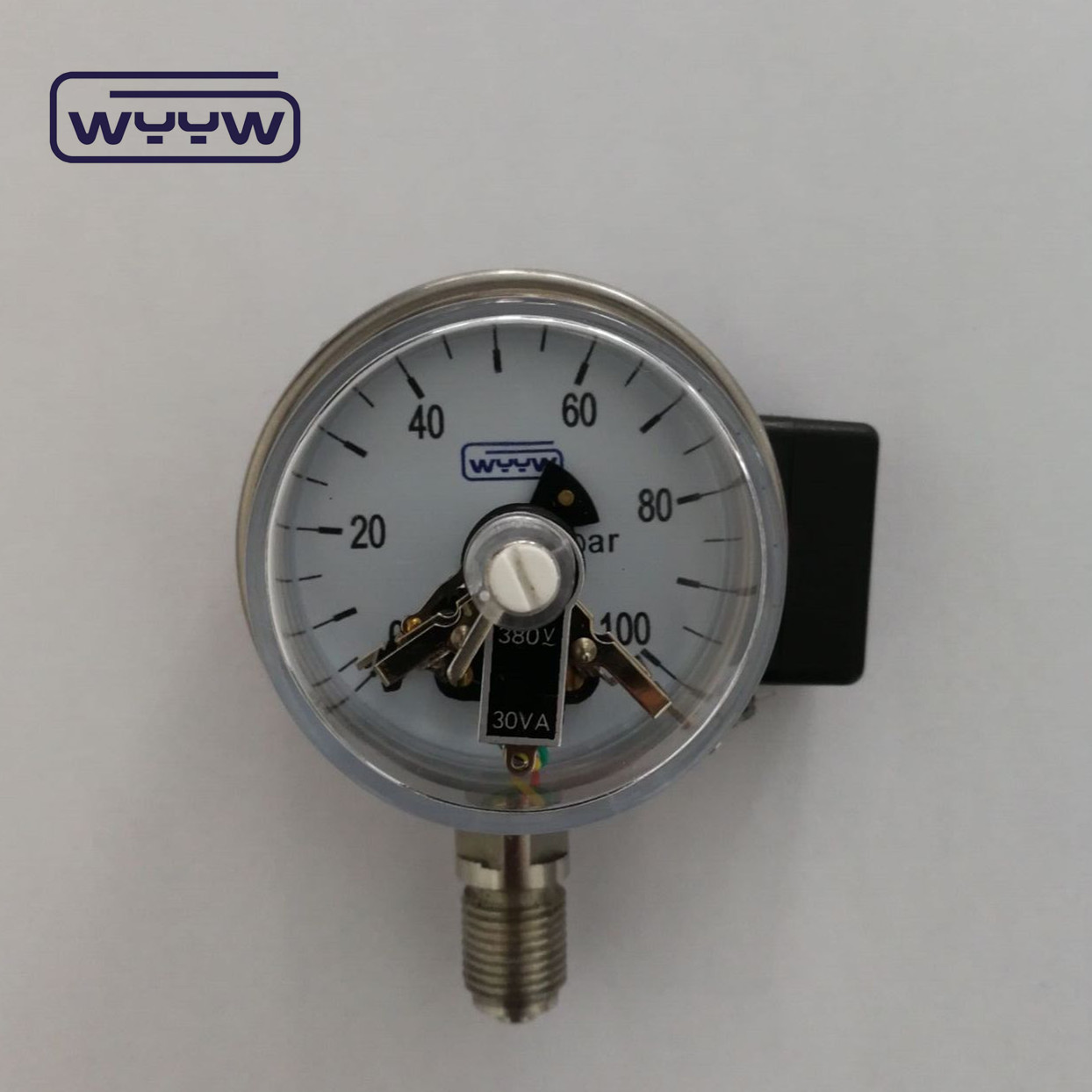

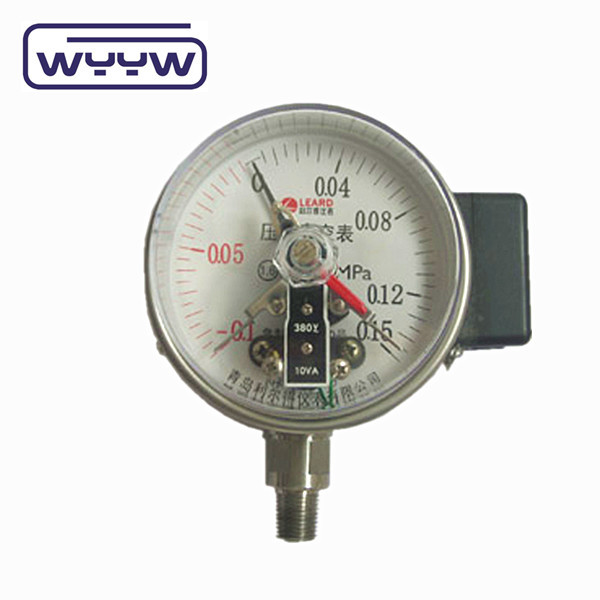

General Steel Electric Contact Pressure Gauge Bottom Mount 60mm

200 pieces
MOQ
$2.10/pieces >=200 pieces
Price
General Steel Electric Contact Pressure Gauge Bottom Mount 60mm
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year, 1 Year
Customized Support: OEM, ODM, OBM
Product Name: Electronic Pressure Gauge
Size: 60mm
Payment: Various Payment Methods
Material: Black Steel
Keyword: Pressure Gauge
Accuracy: 2.5%
Connection Thread: Customized
Window: Plastic Or Glass
Port: Qingdao
Highlight:

General Steel Electric Contact Pressure Gauge

,

Electric Contact Pressure Gauge Bottom Mount

,

Bottom Mount Pressure Gauge 60mm

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Model Number: YX-60
Payment & Shipping Terms
Packaging Details: panel mount pressure gauge<br>Each unit is packed in one paper box, 30 boxes in one carton . As customer requested.
Supply Ability: 100000 Piece/Pieces per Month electronic pressure gauge
Product Description

electronic pressure gaugeGeneral Steel Electric Contact Pressure Gauge Bottom Mount 60mm 0

Product Description

General Steel Electric Contact Pressure Gauge Bottom Mount 60mm 1

Name

electronic pressure gauge

Dials Size

1.5"(40mm), 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)

Case

Black steel, ABS or chrome plated

Pressure range

0 -250Mpa,other scale units bar, psi, kg/cm2 etc.optional

Movement

SS304 and 316

Socket

BSS304 and 316

Bourdon tube

SS304 and 316

Dial plate and pointer

Aluminum

Window

Glass or Plastic

Connection sizes

1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case

Connection threads

NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom,back and panel

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

General Steel Electric Contact Pressure Gauge Bottom Mount 60mm 2

General Steel Electric Contact Pressure Gauge Bottom Mount 60mm 3

General Steel Electric Contact Pressure Gauge Bottom Mount 60mm 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

General Steel Electric Contact Pressure Gauge Bottom Mount 60mm 5

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.



Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.



Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

General Steel Electric Contact Pressure Gauge Bottom Mount 60mm 6

General Steel Electric Contact Pressure Gauge Bottom Mount 60mm 7

General Steel Electric Contact Pressure Gauge Bottom Mount 60mm 8

Packaging & Shipping

General Steel Electric Contact Pressure Gauge Bottom Mount 60mm 9

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
