bottom electronic contact pressure gauge manufacture

500 pieces
MOQ
$2.53/pieces 500-999 pieces
Price
bottom electronic contact pressure gauge manufacture
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1year
Customized Support: OEM, ODM, OBM
Product Name: Electric Contact Pressure Gauge
Pressure Range: 0~100Mpa,bar,mbar,psi Etc
Accuracy: 1.6%
Material: Black Steel
Mounting: Bottom
Window: Glass, Safe Glass
Size: 100mm
Port: QINGDAO,SHANGHAI,NINGBO
Highlight:

bottom contact pressure gauge

,

bottom electronic contact pressure gauge

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Model Number: YX-100
Payment & Shipping Terms
Packaging Details: Each gauge packed in one paper box <br>With outer carton box <br>or packed accordiong to client's requirements
Supply Ability: 100000 Piece/Pieces per Month electric contact pressure gauge
Product Description

electric contact pressure gauge

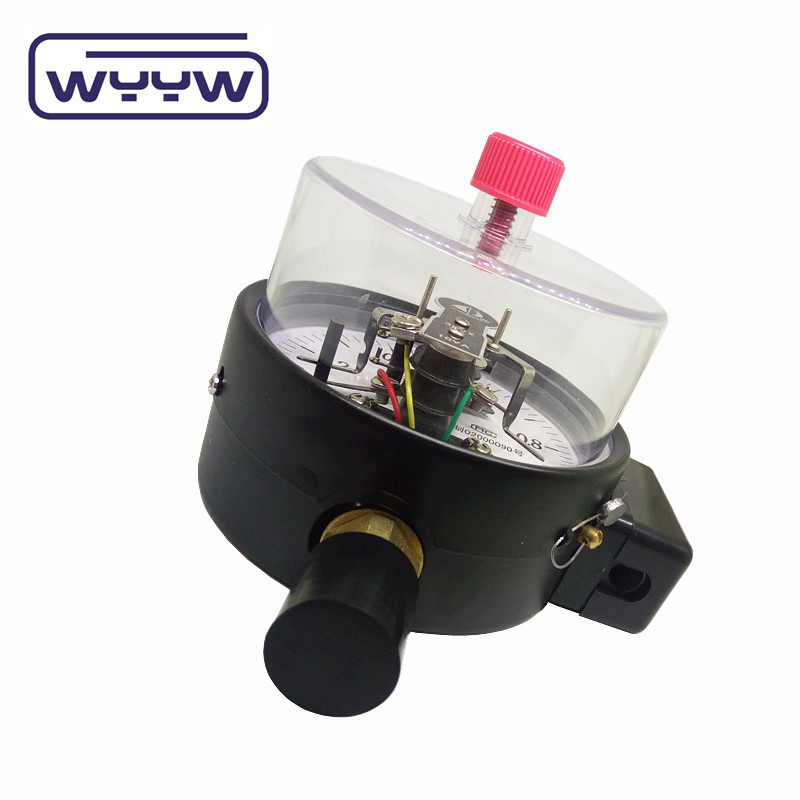

bottom electronic contact pressure gauge manufacture 0

Product Description

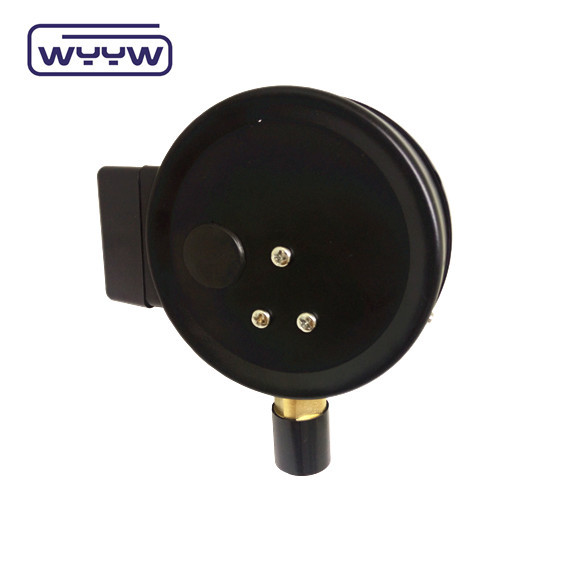

bottom electronic contact pressure gauge manufacture 1

Name

electric contact pressure gauge

Dials Size

1.5"(40mm), 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)

Case

Black steel, ABS or chrome plated

Pressure range

0 -250Mpa,other scale units bar, psi, kg/cm2 etc.optional

Movement

SS304 and 316

Socket

BSS304 and 316

Bourdon tube

SS304 and 316

Dial plate and pointer

Aluminum

Window

Glass or Plastic

Connection sizes

1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case

Connection threads

NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom,back and panel

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

bottom electronic contact pressure gauge manufacture 2

bottom electronic contact pressure gauge manufacture 3

bottom electronic contact pressure gauge manufacture 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

bottom electronic contact pressure gauge manufacture 5

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.



Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.



Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

bottom electronic contact pressure gauge manufacture 6

bottom electronic contact pressure gauge manufacture 7

bottom electronic contact pressure gauge manufacture 8

Packaging & Shipping

bottom electronic contact pressure gauge manufacture 9

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
