25mm Small Pressure Gauge 300bar For PCP Pneumatic Guns

1000 pieces
MOQ
Depends on total quantity
Price
25mm Small Pressure Gauge 300bar For PCP Pneumatic Guns
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Size: 22mm 23mm 25mm 28mm 30mm
Payment: Various Payment Methods
Material: Brass Chromed
Keyword: Pressure Gauge
Thread: G1/8"BSP M10X1
Port: Qingdao
Pressure Range: 0-50Mpa
Highlight:

25mm pressure gauge 300bar

,

small PCP pneumatic gauge

,

mini pressure gauge 300bar

Basic Infomation
Place of Origin: Qingdao,China
Brand Name: WYYW
Certification: CE & ISO9001
Model Number: Y-series
Payment & Shipping Terms
Packaging Details: Inner plastic bag,export carton out side.Pallet optional.
Delivery Time: 5-30days
Payment Terms: TT,LC.Alipay.Western Union
Supply Ability: 30-50k per month
Product Description
Product Overview

The 25mm small pressure gauge is designed for 300bar applications, making it an ideal choice for PCP pneumatic guns and other high-pressure systems. Its compact 1-inch dial delivers reliable pressure readings in demanding environments.

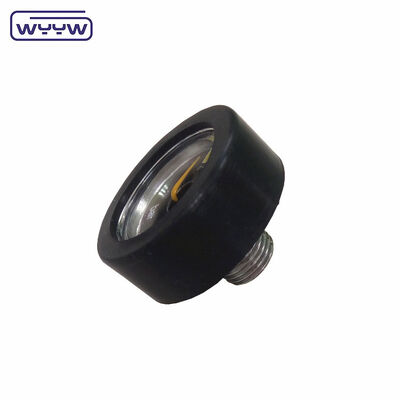

25mm small pressure gauge 300bar for PCP pneumatic guns, front view showing dial face
Product Description

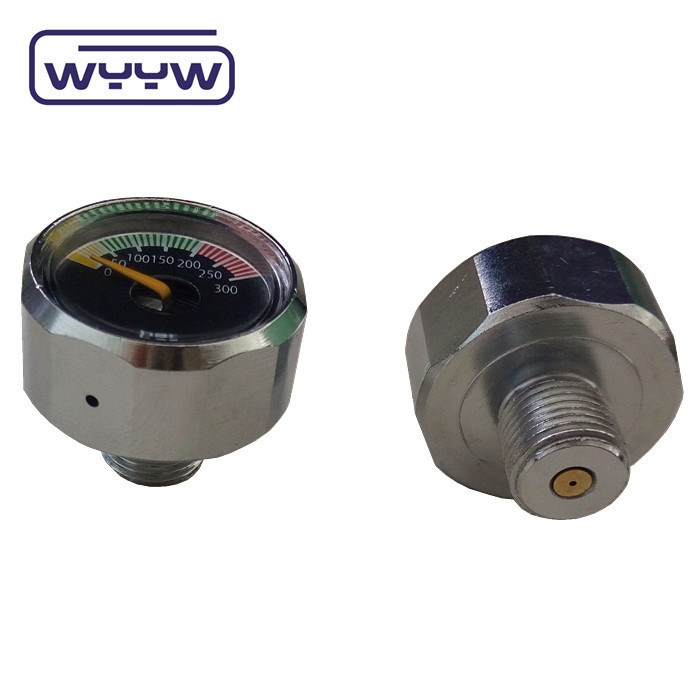

Close-up view of the 25mm pressure gauge showing brass chromed case and dial details
Name 1 inch pressure gauge
Dial Size 22mm, 23mm, 25mm, 28mm, 30mm
Case Brass, chromed
Pressure Range 0–50 MPa; other scale units available: bar, psi, kg/cm², etc.
Ring None
Movement Brass
Socket Brass
Bourdon Tube Brass
Dial Plate & Pointer Aluminum
Window Plastic
Connection Sizes 1/8", M10*1, or others
Connection Threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Back mount
Accuracy 4%
Pressure Limitation Steady: 3/4* full scale value
Fluctuation: 2/3* full scale value
Short time: full scale value

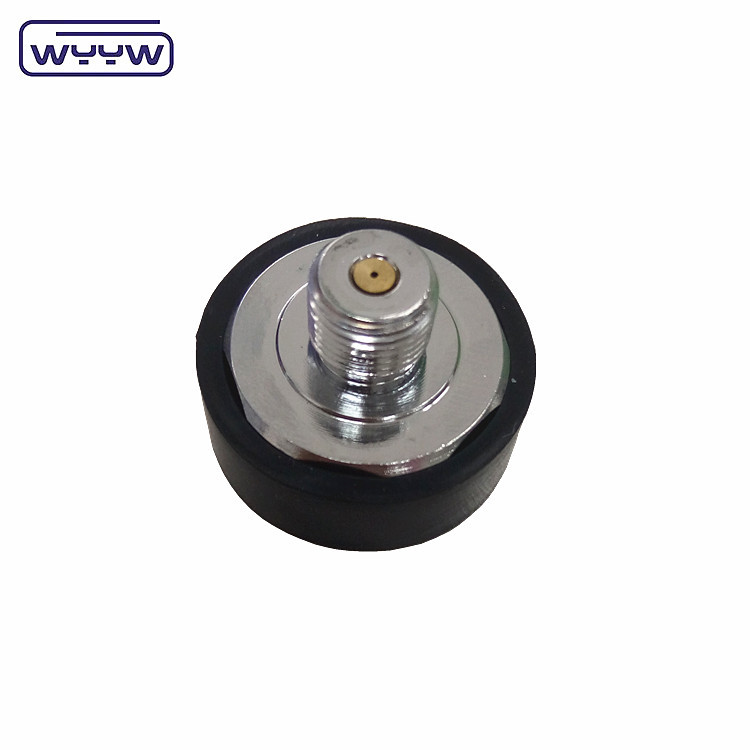

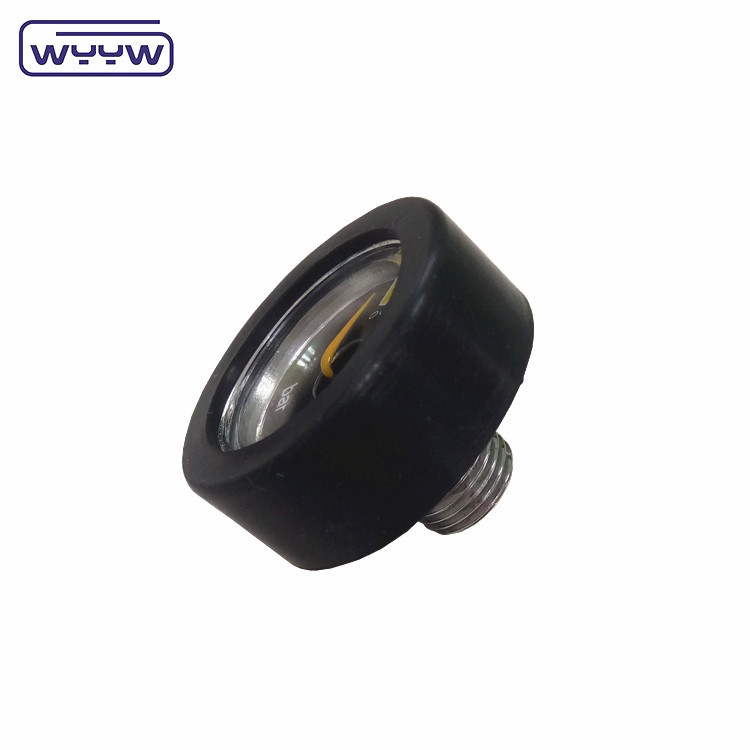

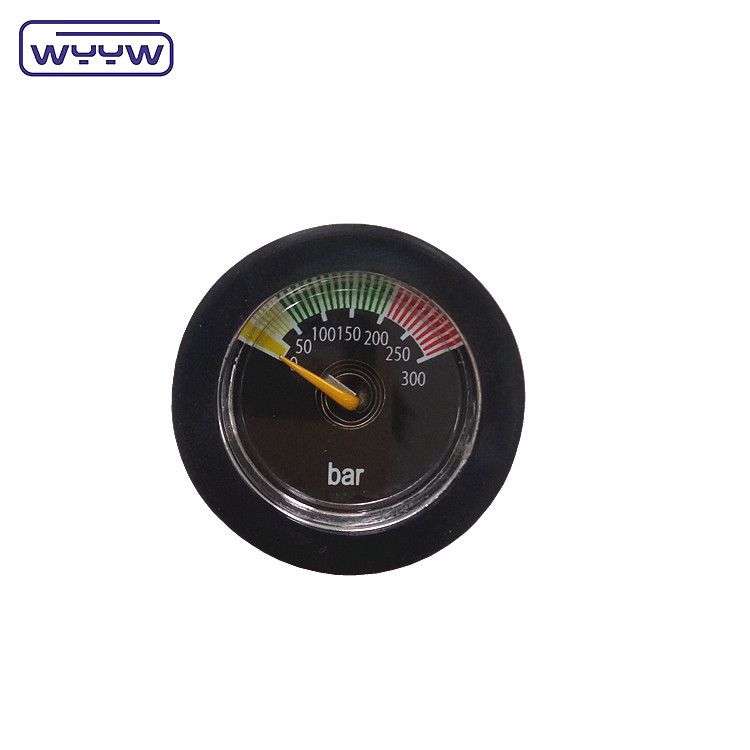

Detailed view of the pressure gauge connection threads and back mount design Pressure gauge dial face showing scale markings and pointer Side profile view of the compact 25mm pressure gauge
Product Application
  1. Outdoor and severe ambient and process conditions
  2. Use where harmful vibration and pulsation are present
  3. Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors, and process systems
Pressure gauge installed in a hydraulic equipment application
Company Information

Qingdao DaZeFengYang is a professional pressure gauge and hardware tools manufacturer, and a member of the China National Hardware Association.

Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauges as per GB/T (Chinese Standard) and International Standards requirements, and have already obtained ISO9001 and CE certification for all our products, including pressure gauges, gas regulators, cutting torches, and welding torches.

Over the years of development, there is now an impressive selection of products, both special and standard, with competitive prices and deliveries. Together with speedy sales and after-sales service, our company is attractive to customers all around the world, especially distributors and importers from Europe, Southeast Asia, the Middle East, America, and Australia.

We welcome every friend to call, email us, and visit our company. We sincerely hope to create a wonderful future together with you.

Qingdao DaZeFengYang factory workshop and production equipment Quality inspection process for pressure gauges at the manufacturing facility Assorted pressure gauge products ready for shipment
Packaging & Shipping
Pressure gauges packed in protective packaging ready for shipping
Our Advantages
  1. Advanced Equipment and Professional Technology: We are committed to offering good quality gauges with advanced equipment and professional technology for customers all over the world.
  2. Best After-sales Service: Our company provides the best after-sales service at all times, with the goal of long-term trade cooperation.
  3. Serious Inspection Procedure with Excellent Quality: Our pressure gauges are 100% inspected, and we have passed ISO9001 and UL certification.
  4. Quick Delivery: Our company provides in-time delivery, always satisfying customer needs.
  5. Convenient Purchase and Cost Savings: As a skillful manufacturer, it is convenient for you to purchase. We can provide our high-quality products at reasonable prices.
  6. OEM Orders: Over the past years, we have received many OEM orders from very famous companies in the USA and European markets.
