Economy Pressure Gauge constructed with components to ensure long service life and pressure measurement in industrial environments

500PCS
MOQ
Depends on total quantity
Price
Economy Pressure Gauge constructed with components to ensure long service life and pressure measurement in industrial environments
Features Gallery Product Description Chat Now
Features
Specifications
Dial Size: 40/50/60/100/150/160mm
Highlight:

Economy Pressure Gauge industrial use

,

Pressure Gauge long service life

,

Economy Pressure Gauge industrial environments

Basic Infomation
Place of Origin: Qingdao,China
Brand Name: WYYW
Certification: CE & ISO9001
Model Number: Y-40
Payment & Shipping Terms
Packaging Details: Inner plastic bag,export carton out side.Pallet optional.
Delivery Time: 5-30days
Payment Terms: TT,LC.Alipay.Western Union
Supply Ability: 30-50k per month
Product Description
Economy Pressure Gauge

Constructed with high-quality components to ensure long service life and reliable pressure measurement in demanding industrial environments.

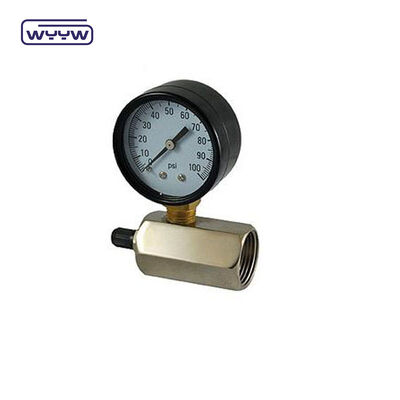

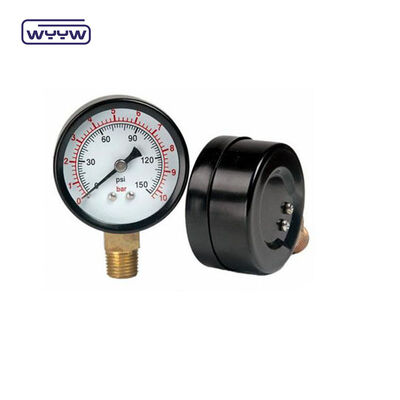

Economy pressure gauge with black steel case and aluminum dial face

Technical Specifications
Technical diagram showing general pressure gauge dimensions and construction
Name General pressure gauge
Dial Sizes 40 / 50 / 60 / 100 / 150 mm / 160 mm (custom sizes available)
Case Black steel case
Pressure Units MPa; other scale units available: bar, psi, kg/cm², etc.
Movement Brass
Socket Brass
Bourdon Tube Bronze
Dial Plate & Pointer Aluminum
Window Glass
Connection Sizes 1/8" for 1.5" case; 1/4" for 2" and 2.5" case; 1/2" for 4" and 6" case
Connection Threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom (panel and bottom mounting available)
Accuracy 1.5" (40 mm), 2" (50 mm), 2.5" (63 mm): ±2.5%
4" (100 mm) and 6" (150 mm): ±1.6%
Pressure Limitation Steady: 3/4 × full scale value
Fluctuation: 2/3 × full scale value
Short time: full scale value
Exploded view showing internal construction details of the pressure gauge
Close-up view of pressure gauge dial and pointer assembly Pressure gauge connected to a system demonstrating pressure measurement

Applications
  • Outdoor and severe ambient and process conditions
  • Environments with harmful vibration and pulsation
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors, and process systems
Pressure gauges installed in industrial process systems and equipment

Manufacturer Information

Qingdao DaZeFengYang is a professional pressure gauge and hardware tools manufacturer, and a member of the China National Hardware Association.

Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauges as per GB/T (Chinese Standard) and International Standards requirements. We have already obtained ISO9001 and CE certification for all our products, including pressure gauges, gas regulators, cutting torches, and welding torches.

Over the years of development, there is now an impressive selection of products — both special and standard — with keen prices and deliveries. Together with our speedy sales and after-sales service, our company is attractive to customers all around the world, especially distributors and importers from Europe, Southeast Asia, the Middle East, America, and Australia.

We welcome every friend to call, email us, and visit our company. We sincerely hope to create a wonderful future together with you.

Overview of manufacturing facility and production equipment Quality control process for pressure gauge inspection and testing Company operations and warehouse facility

Packaging & Shipping
Pressure gauge product packaging and shipping methods

Our Advantages
  • Advanced Equipment and Professional Technology: We are committed to offering good quality gauges with advanced equipment and professional technology for customers worldwide.
  • Best After-sales Service: Our company provides the best after-sales service at all times, with the goal of long-term trade cooperation.
  • Serious Inspection Procedure with Excellent Quality: Our pressure gauges undergo 100% inspection, and we have passed ISO9001 and UL certification.
  • Quick Delivery: Our company provides in-time delivery, always satisfying customer needs.
  • Convenient Purchase and Cost Savings: As a skillful manufacturer, it is convenient for you to purchase. We provide high-quality products at reasonable prices.
  • OEM Orders: Over the past years, we have fulfilled many OEM orders from very famous companies in the USA and European markets.
