Home /Products/Diaphragm Pressure Gauge/Diaphragm Seal Pressure Gauge Featuring Easy Installation and Maintenance for Industrial Pressure Measurement Needs

Diaphragm Seal Pressure Gauge Featuring Easy Installation and Maintenance for Industrial Pressure Measurement Needs

10 pieces
MOQ
Depends on total quantity
Price
Diaphragm Seal Pressure Gauge Featuring Easy Installation and Maintenance for Industrial Pressure Measurement Needs
Features Gallery Product Description Chat Now
Features
Specifications
Dials Size: 1.5"(40mm), 2"(50mm), 2.5"(63mm), 4"(100mm) And 6" (150mm)
Highlight:

Diaphragm seal pressure gauge industrial

,

Easy installation diaphragm pressure gauge

,

Maintenance-free diaphragm seal gauge
Basic Infomation
Place of Origin: Qingdao,China
Brand Name: WYYW
Certification: CE & ISO9001
Model Number: YTPN-60HMC
Payment & Shipping Terms
Packaging Details: Inner plastic bag,export carton out side.Pallet optional.
Delivery Time: 5-30days
Payment Terms: TT,LC.Alipay.Western Union
Supply Ability: 30-50k per month
Product Description
Diaphragm Seal Pressure Gauge Featuring Easy Installation and Maintenance
Professional industrial pressure measurement solution designed for reliable performance in demanding applications.

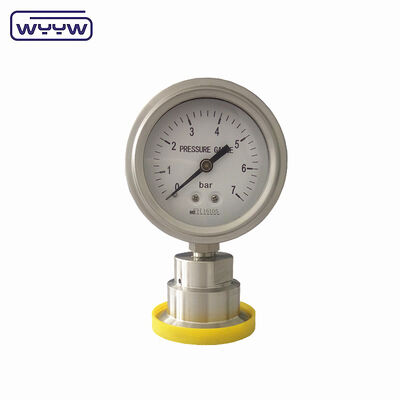

Diaphragm Seal Pressure Gauge product overview Detailed product specifications diagram
Technical Specifications
Specification Details
Dial Sizes 1.5" (40mm), 2" (50mm), 2.5" (63mm), 4" (100mm) and 6" (150mm)
Case Stainless steel
Pressure Range 0 - 100Mpa, other scale units bar, psi, kg/cm² etc. optional
Ring Ring or bayonet
Movement Stainless steel
Socket Stainless steel
Bourdon Tube Stainless steel
Dial Plate and Pointer Aluminum
Window Glass or Plastic
Connection Sizes 1/8" for 1.5" case; 1/4" for 2", 2.5" case; 3/8" & 1/2" for 4", 6" case
Connection Threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom, back
Accuracy 1.5" (40mm), 2" (50mm), 2.5" (63mm) - 2.5%
4" (100mm) and 6" (150mm) - 1.6%
Pressure Limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value

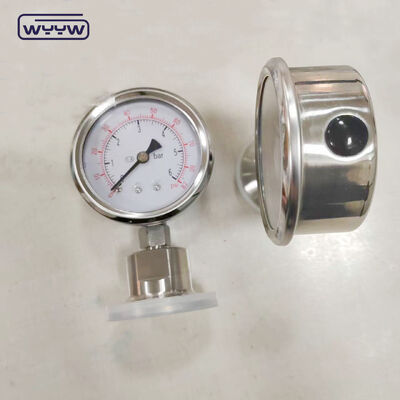

Pressure gauge installation example Pressure gauge close-up view
Application Areas
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
Manufacturing facility overview
Manufacturer Profile
Qingdao DaZeFengYang is a professional pressure gauge and hardware tools manufacturer, and a member of China National Hardware Association.
Our highly skilled technical experts ensure quality pressure gauges that meet GB/T (Chinese Standard) & International Standards requirements. We hold ISO9001 and CE certificates for all our products, including pressure gauges, gas regulators, cutting torches and welding torches.
Through years of development, we offer an impressive selection of both special and standard products with competitive pricing and reliable deliveries. Our speedy sales and after-sales service make us attractive to customers worldwide, particularly distributors and importers from Europe, Southeast Asia, Middle East, America and Australia.
We welcome inquiries and visits to our company, and look forward to building successful partnerships.
Quality control process Product testing facility Shipping and logistics
Packaging & Shipping
Product packaging example
Key Advantages
  • Advanced Equipment and Professional Technology: Committed to delivering high-quality gauges using advanced equipment and professional technology
  • Best After-sales Service: Comprehensive after-sale service focused on long-term trade cooperation
  • Rigorous Quality Control: 100% inspection with ISO9001 and UL certification
  • Quick Delivery: In-time delivery to satisfy customer needs
  • Cost-Effective Solutions: Direct manufacturer pricing with high quality products
  • OEM Capabilities: Extensive experience serving major companies in USA and European markets
