Home /Products/Pressure Gauge Manometer/60mm Axial Flange Electric Contact Pressure Gauge -0.05~0.25 MPa 10VA Dry‑Type

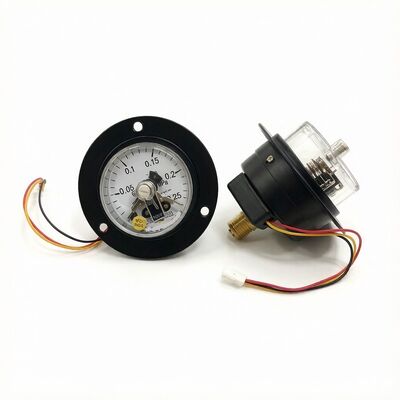

60mm Axial Flange Electric Contact Pressure Gauge -0.05~0.25 MPa 10VA Dry‑Type

60mm Axial Flange Electric Contact Pressure Gauge -0.05~0.25 MPa 10VA Dry‑Type
Features Gallery Product Description Chat Now
Features
Specifications
Basic Infomation
Payment & Shipping Terms
Product Description
60mm panel‑mount electric contact pressure gauge, range ‑0.05‑0.25MPa, 10VA contact load, axial back connection with front flange, pre‑wired connector, factory wholesale, custom logo available.



Product Overview

This 60 mm flange‑mount electric‑contact pressure gauge is a multifunctional measuring and control instrument.

Besides displaying real‑time pressure value, it can send out an electrical signal once pressure hits the preset threshold, to realize automatic pressure control, pump start‑stop and over‑pressure / low‑pressure alarm.

Measuring range: ‑0.05 MPa ~ 0.25 MPa, contact power rating:10VA.

Axial rear connection with front mounting flange, pre‑assembled wire & plug‑in connector for quick wiring. Dry‑type structure, black painted steel housing, designed for panel / cabinet installation.

60mm Axial Flange Electric Contact Pressure Gauge -0.05~0.25 MPa 10VA Dry‑Type



Main Features

    • Dial diameter: 60 mm
    • Measuring range: -0.05 MPa ~ 0.25 MPa
    • Contact capacity: 10VA
    • Mounting: Axial back connection, front flange (panel‑mount)
    • Dry‑type, no oil filling
    • Black steel case
    • Pre‑wired cable with plug connector
    • Visual pressure reading + electric switch‑out signal
    • Easy to install on control panel or equipment cabinet
    • Custom logo service supported


60mm Axial Flange Electric Contact Pressure Gauge -0.05~0.25 MPa 10VA Dry‑Type

Applications

The electric contact pressure gauge is widely used on air compressors, vacuum systems, water tank pressure control, pneumatic automation equipment, packaging machinery and general industrial equipment for pressure monitoring & automatic alarm‑control.



Wholesale Information

We are a professional pressure instrument manufacturer. We accept bulk orders, custom‑printed logo and customized pressure ranges. Stable production lead‑time and competitive factory‑direct price.

Please contact us for complete datasheet and wholesale quotation.
