Features

Specifications

Dial Diameter: 80mm, 100mm, 150mm

Installation Style: Axial Straight Stem

Connection Type: Fixed Thread Mounting

Material: Full Stainless Steel

Accuracy Grade: Class 1.5

Temperature Ranges: 0~100°C, 0~300°C, 0~550°C

Basic Infomation

Payment & Shipping Terms

Gallery

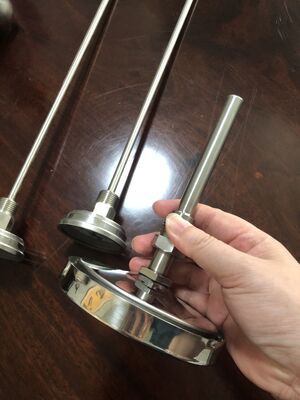

WSS Bimetallic Thermometer with All Stainless Steel Build, No Power Needed, and Multiple Dial Sizes

Product Description

WSS Series Bimetallic Thermometer

The WSS Series represents the standard industrial model for bimetallic thermometers in China, widely exported globally for heating, boiler, pipeline, and process equipment temperature detection.

Product Overview

This mechanical temperature measuring instrument operates on the bimetallic strip thermal expansion principle, requiring no power supply, batteries, or wiring. The entire construction—including dial case and insertion stem—is crafted from stainless steel for superior rust and corrosion resistance. Available in various dial diameters, customizable probe lengths, and multiple temperature scales to suit diverse industrial applications.

WSS Model Code Definition

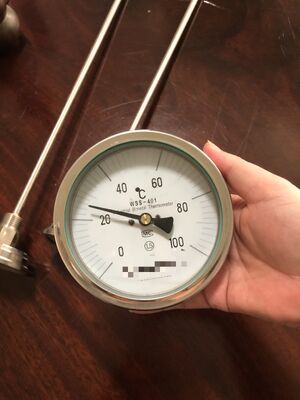

Standard Example: WSS-401

Code Segment	Description
WSS	Fixed series code for bimetallic thermometer
1st Digit	Dial diameter (3=80mm, 4=100mm, 5=150mm)
2nd Digit	Installation style (0 = axial straight stem)
3rd Digit	Connection type (1 = fixed thread mounting)

Main Technical Parameters

Parameter	Specification
Material	Full stainless steel case & temperature sensing stem
Working Mode	Mechanical bimetallic induction, power-free operation
Accuracy Grade	Class 1.5
Standard Temperature Ranges	0~100°C, 0~300°C, 0~550°C
Customizable Options	Stem insertion length, thread specification, temperature range, dial printing
Mounting	Male thread connection for easy installation on pipes, tanks, and furnaces

Core Product Features

No Electricity Required: Pure mechanical structure ensures stable performance in high-temperature and humid environments with nearly zero maintenance cost, ideal for unattended boiler and heating rooms.
Anti-Corrosion Stainless Steel Structure: Complete stainless steel construction prevents rust and adapts to water, steam, and mild corrosive gas medium measurement.
Highly Customizable Design: Adjustable probe depth and measuring range to fit hot water pipelines, steam boilers, baking ovens, and food processing equipment.
Clear Large Dial Display: Celsius-marked dial enables easy and quick on-site reading for workshop personnel.
Economical Durable Spare Part: Long service lifespan with cost-effective bulk procurement for global distributors.

Application Fields

Industrial steam boilers, central heating pipeline networks, hot water storage tanks, industrial baking ovens, food processing machinery, HVAC heating systems, chemical light industry equipment, and oil & gas pipeline temperature measurement.

Wholesale Inquiry

Common specifications are always in stock for fast shipment. We accept OEM custom dial logos, thread standards, and special temperature ranges for bulk orders. Please share your company information and application scenarios, and we will provide an official quotation sheet, dimension drawings, and detailed technical specifications promptly.
