2.5" Glycerin Filled Back Connection With Flange Hydraulic Pressure Test Gauge

200PCS
MOQ
Depends on total quantity
Price
2.5" Glycerin Filled Back Connection With Flange Hydraulic Pressure Test Gauge
Features Gallery Product Description Chat Now
Features
Specifications
Customized Support: OEM, ODM, OBM
Dial Size: 63mm
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Mount: Panel
Warranty: 1Y
Quality: 1 Year
Material: Stainless Steel Case
Accuracy: 2.5%
Port: QingDao,ShangHai,TianJin,NingBo
ADVANTAGES: Moisture-proof,Wear Resistant,Eco-friendly,High-durable
Basic Infomation
Place of Origin: Qingdao,China
Brand Name: WYYW
Certification: CE & ISO9001
Model Number: YTN-63Z
Payment & Shipping Terms
Packaging Details: Inner plastic bag,export carton out side.Pallet optional.
Delivery Time: 5-30days
Payment Terms: TT,LC.Alipay.Western Union
Supply Ability: 30-50k per month
Product Description
2.5" Glycerin Filled Back Connection With Flange Hydraulic Pressure Test Gauge
Product Overview

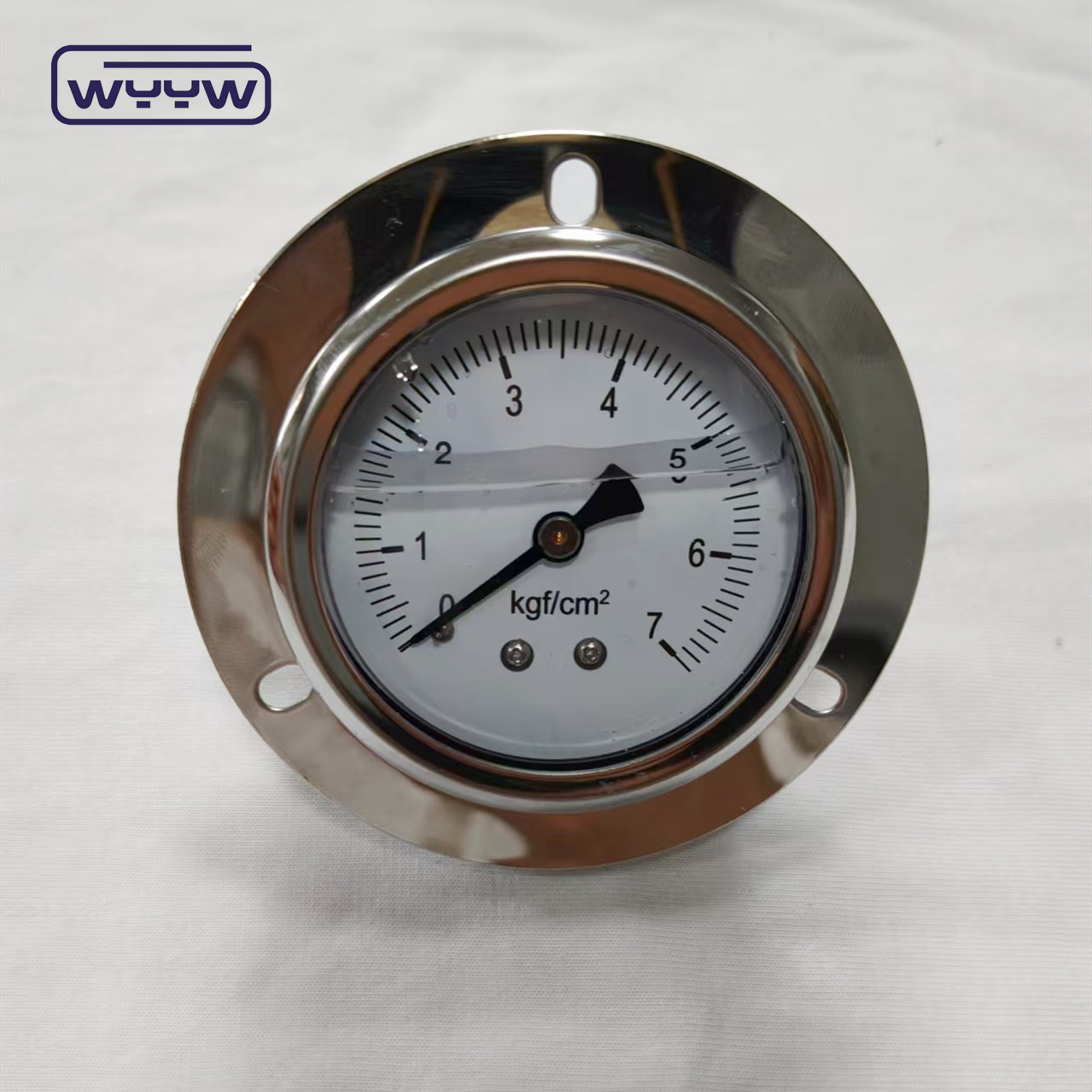

Hydraulic Pressure Test Gauge product image
Hydraulic Pressure Test Gauge designed for reliable pressure measurement in demanding industrial applications.

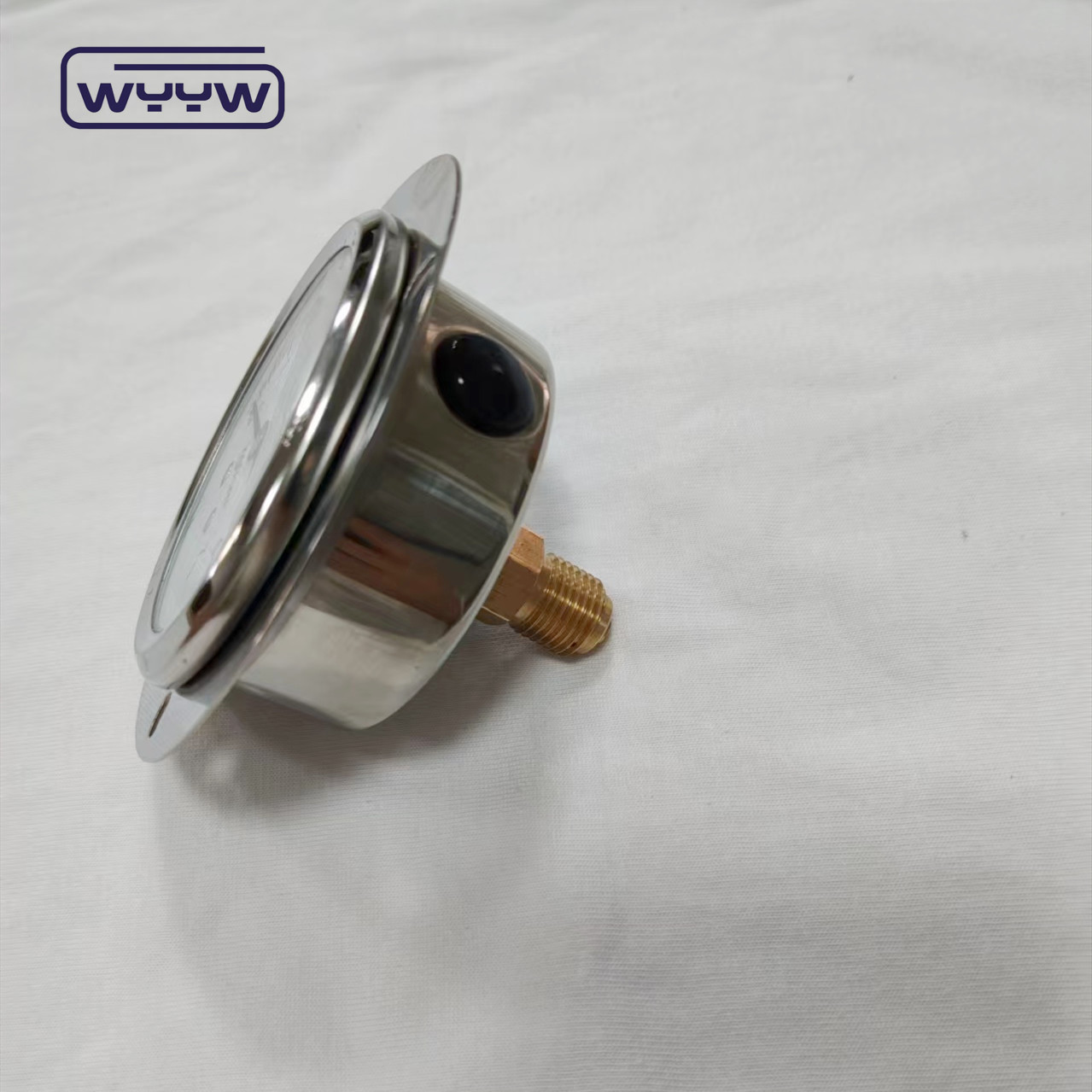

Detailed view of oil filled pressure gauge
Technical Specifications
Parameter Specification
Name Oil filled pressure gauge
Dial Size 40/50/63/100/150mm (or custom sizes available)
Case Stainless steel case
Pressure Units Mpa, bar, psi, kg/cm² (optional)
Movement Brass
Socket Brass
Bourdon Tube Bronze
Dial Plate & Pointer Aluminum
Window Acrylic / Plastic
Connection Sizes 1/8" for 1.5", 1/4 for 2", 2.5" case; 1/2 for 4", 6"
Connection Threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom/Back and panel
Accuracy 1.5"(40mm), 2"(50mm), 2.5(63mm) - 2.5%
4"(100mm) and 6"(150mm) - 1.6%
Pressure Limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value

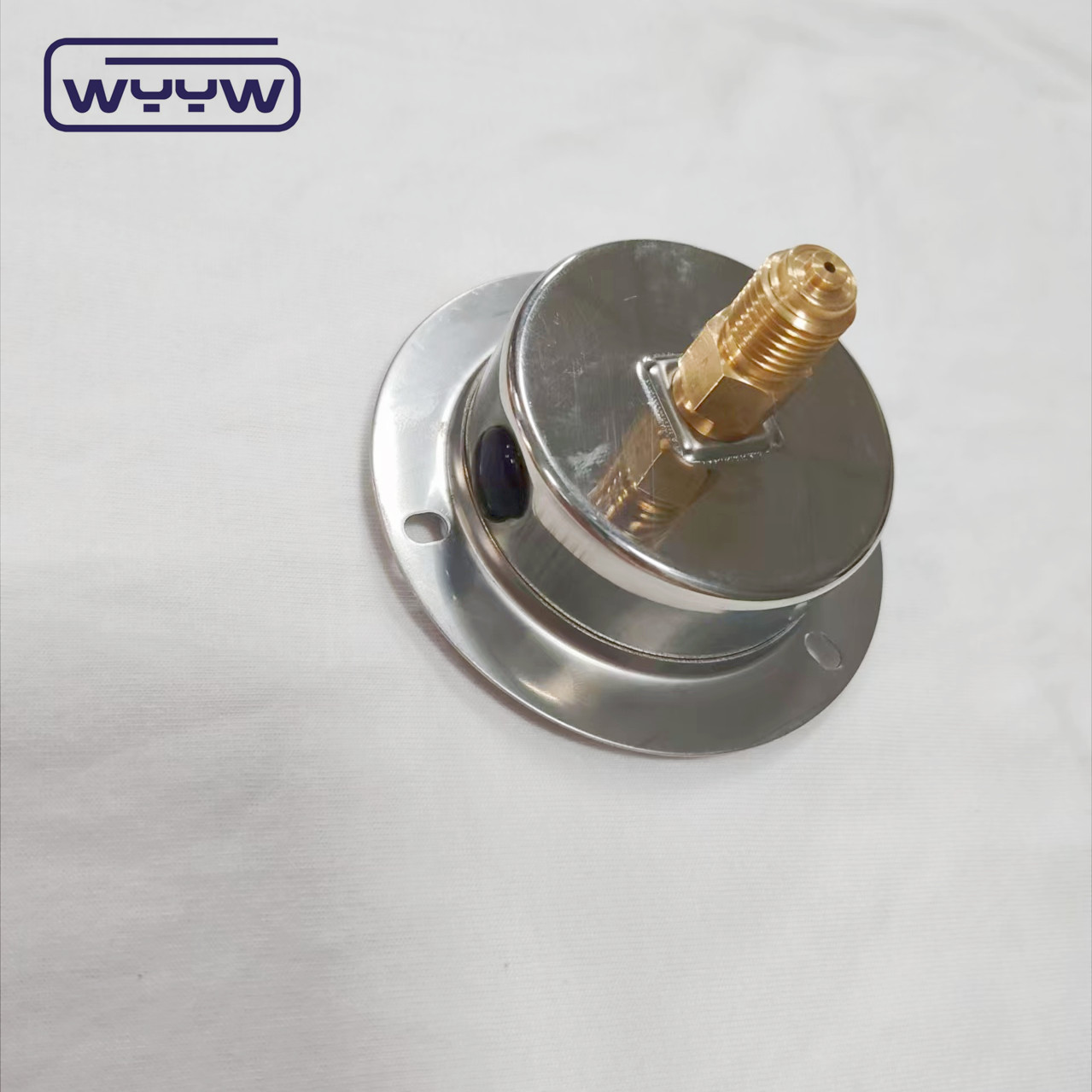

Pressure gauge technical diagram Pressure gauge side view Pressure gauge close-up view
Product Applications
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment
  • Pumps, compressors and process systems
Pressure gauge in industrial application
Company Information
Qingdao DaZeFengYang is a professional pressure gauge and hardware tools manufacturer, and a member of China National Hardware Association.
Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already obtained ISO9001 and CE certificates for all our products, including pressure gauges, gas regulators, cutting torches and welding torches.
Over the years of development, we now offer an impressive selection of products, both special and standard, with competitive prices and reliable deliveries. Our speedy sales and after-sales service make our company attractive to customers worldwide, especially distributors and importers from Europe, Southeast Asia, Middle East, America and Australia.
Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.
Company facility overview Manufacturing process Quality control inspection
Packaging & Shipping
Product packaging example
Our Advantages
Advanced Equipment & Professional Technology
We are committed to offering high-quality gauges with advanced equipment and professional technology for customers worldwide.
Best After-sales Service
Our company provides excellent after-sale service, aiming for long-term trade cooperation.
Rigorous Quality Control
All pressure gauges undergo 100% inspection. We have passed ISO9001 and UL certification.
Quick Delivery
We provide timely delivery to always satisfy customer needs.
Cost-Effective Solutions
As a skilled manufacturer, we offer high-quality products at reasonable prices.
OEM Capabilities
We have extensive experience with OEM orders from renowned companies in USA and European markets.
Contact Us
Contact information and details
