Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection

50PCS
MOQ
Depends on total quantity
Price
Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM, ODM, OBM
Material: Shock Resistant Pressure Gauge
Original Place: Made In China
Dial Size: 100mm
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Mount: Bottom Mount
Oil Filled: Glycerin Or Silicon
Quality: 1 Year
Warranty: 1Y
Producing Experience: 11 Years
Connection Thread: G/M/BSP/NPT
Range: Customized
Port: QingDao,ShangHai,Ningbo, Guangzhou
ADVANTAGES: Moisture-proof,Wear Resistant,Eco-friendly,High-durable
Highlight:

stainless steel pressure gauge

,

shock resistant pressure manometer

,

bayonet connection pressure gauge

Basic Infomation
Place of Origin: Qingdao,China
Brand Name: WYYW
Certification: CE & ISO9001
Model Number: YTN-60
Payment & Shipping Terms
Packaging Details: Inner plastic bag,export carton out side.Pallet optional.
Delivery Time: 5-30days
Payment Terms: TT,LC.Alipay.Western Union
Supply Ability: 30-50k per month
Product Description
Stainless Steel Bayonet Bottom Connection 4" Shock Resistant Pressure Gauge OEM Available

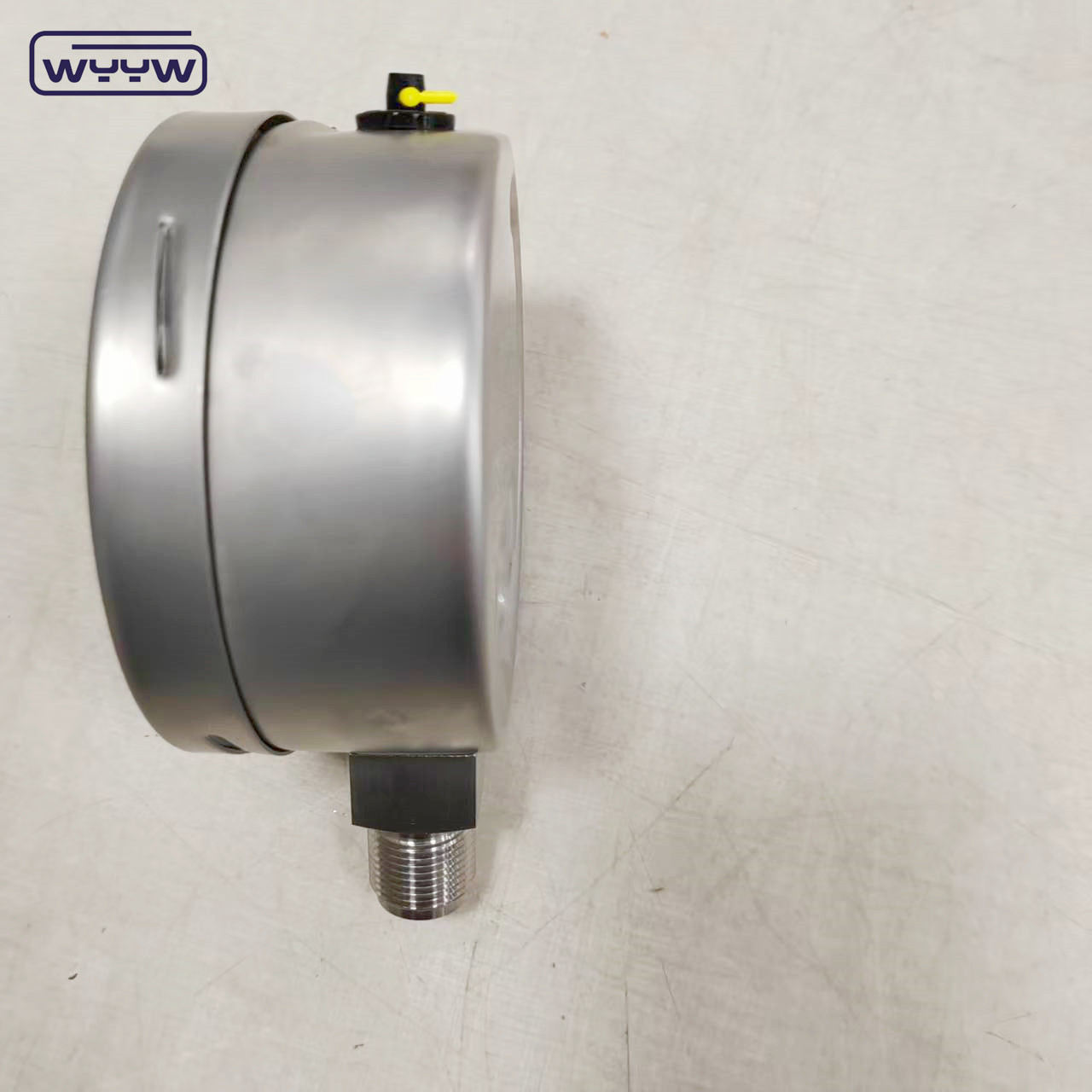

Shock resistant pressure gauge designed for demanding industrial applications.Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 0
Product Specifications

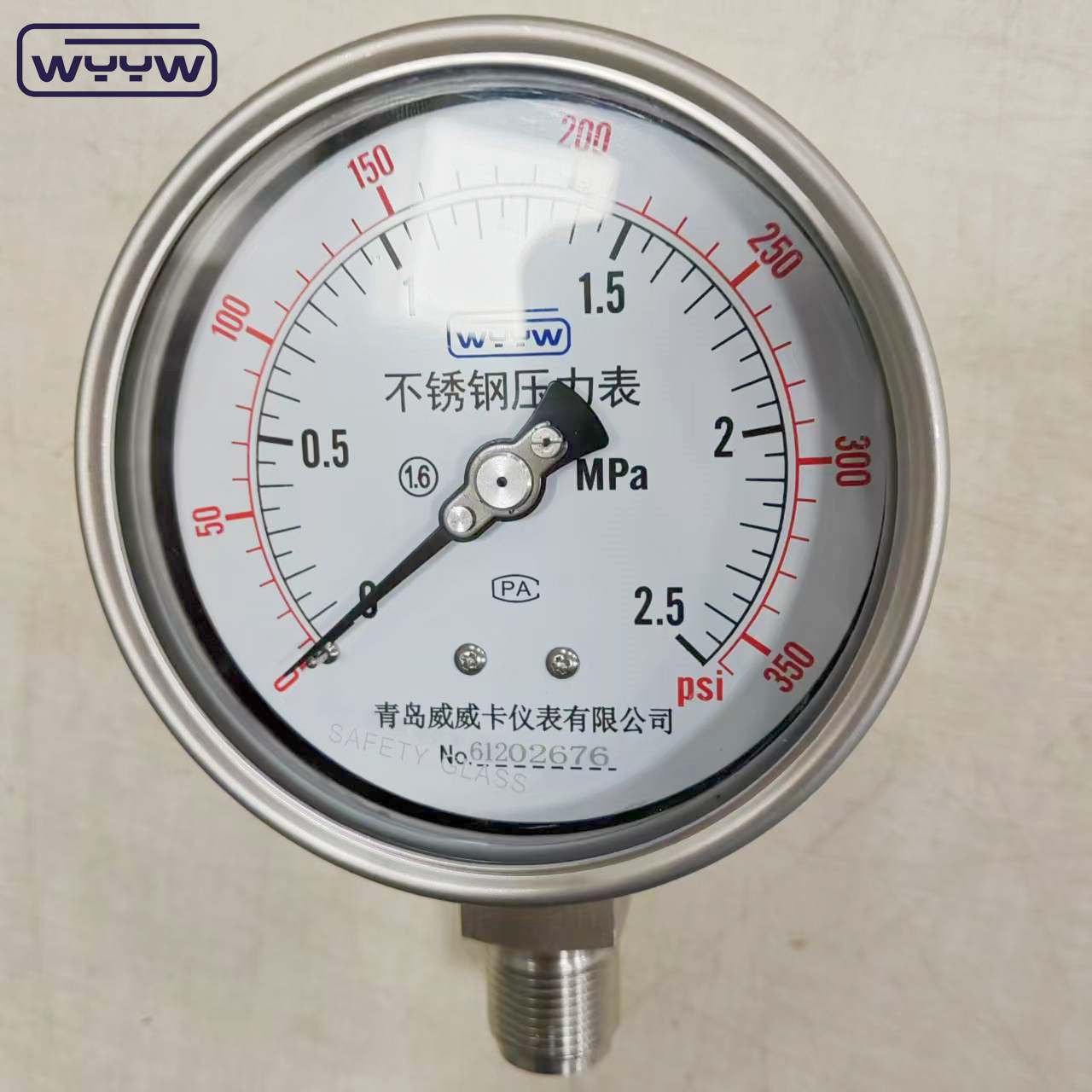

Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 1
Specification Details
Dials Size 60mm (or dial size made as demand)
Case Stainless steel case
Pressure Mpa, other scale units bar, psi, kg/cm2 etc. optional
Ring Gasket under the window
Movement Brass
Socket Brass
Bourdon tube Phosphor Bronze
Dial plate and pointer Aluminum
Window Glass
Connection sizes 1/8" for 1.5", 1/4 for 2", 2.5" case; 1/2 for 4", 6"
Connection threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom (Or made as panel, back)
Accuracy 1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%
Pressure limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value

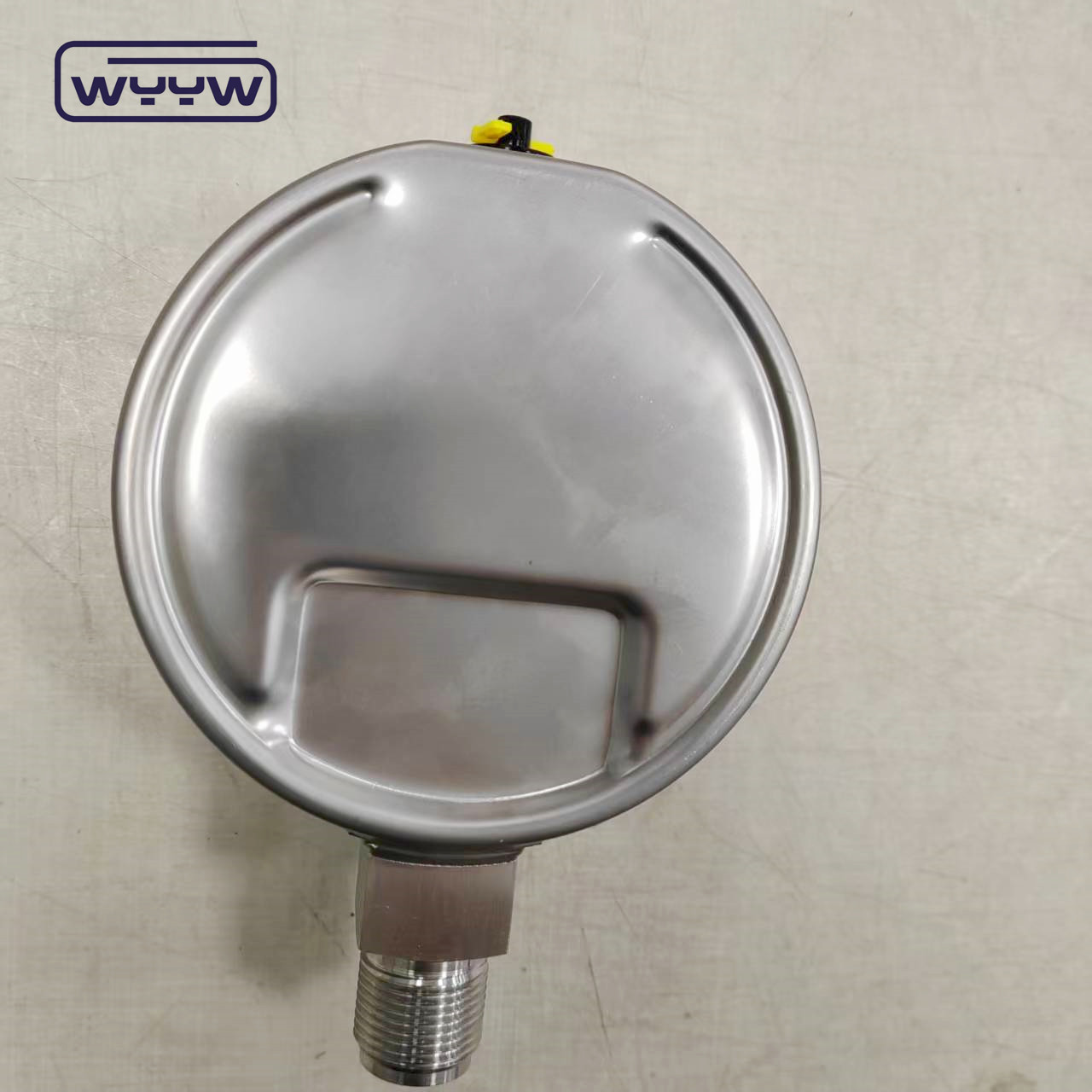

Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 2 Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 3 Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 4 Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 5
Product Applications
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 6
Company Information
Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association. Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including: pressure gauge, gas regulator, cutting torch and welding torch etc. Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia, Middle East, America and Australia. Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.
Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 7 Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 8 Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 9
Packaging & Shipping
Stainless Steel Shock Resistant Pressure Gauge with Customizable Range and Bayonet Bottom Connection 10
Advantages
  • Advance Equipment and Professional Technology: we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
  • Best After-sales Service: Our company provide best after-sale service all the time, for our goal is a long trade cooperation term.
  • Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection, we also have passed ISO9001 and UL certificated.
  • Quickly Delivery: Our company provides in-time delivery, always satisfy customers needs.
  • Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase. We can provide our high quality products with reasonable price.
  • OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market.
