4-inch (100mm) Air Receiver Tank Pressure Gauge with 0-1.6MPa Range and Color-Coded Safety Zones

4-inch (100mm) Air Receiver Tank Pressure Gauge with 0-1.6MPa Range and Color-Coded Safety Zones
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

4-inch (100mm) Dial Pressure Gauge

,

0-1.6MPa Range Manometer

,

Color-Coded Safety Zones Air Receiver Tank Gauge
Basic Infomation
Payment & Shipping Terms
Product Description
4" 100mm Air Receiver Tank Pressure Gauge | 0-1.6MPa with Green Zone Indicator
Safety-First Air Tank Pressure Monitoring
Our 4-inch (100mm) Air Receiver Tank Pressure Gauge is specifically designed for compressed air systems, featuring intuitive color-coded safety zones for instant status assessment. With a 0-1.6MPa range and dry black steel case, this specialized air tank pressure gauge provides clear visual warning of system conditions. The 3/8" NPT lower mount ensures easy installation on compressor receivers, making it an essential safety component for any compressed air system.
4-inch (100mm) Air Receiver Tank Pressure Gauge with 0-1.6MPa Range and Color-Coded Safety Zones 0
Key Features & Benefits
  • Instant Safety Assessment: The color-coded dial with green, white, and red zones allows operators to immediately identify safe operating conditions, potential leaks, or dangerous overpressure situations at a single glance.
  • Optimized for Air Receivers: Specifically configured as an air receiver tank pressure gauge, it provides the range and readability needed for compressor system monitoring.
  • Durable Dry Construction: The dry black steel case requires no maintenance and performs reliably across a wide temperature range without fluid leakage concerns.
  • Standard Industrial Mounting: The 3/8" NPT lower mount ensures compatibility with most compressor receiver tanks and industrial fittings.
  • Clear Zone Definitions:
    • Green Zone (0.4-1.6MPa): Ideal operating range for stored pressure
    • White Low Zone (0-0.4MPa): Check for leaks or incomplete pressurization
    • Red Zone (DANGER): Immediately relieve pressure and investigate cause

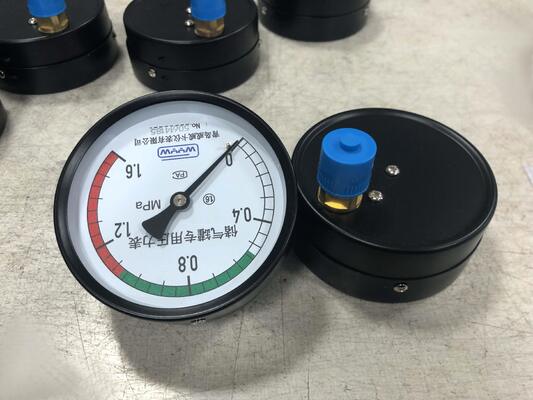

4-inch (100mm) Air Receiver Tank Pressure Gauge with 0-1.6MPa Range and Color-Coded Safety Zones 1
Technical Specifications
Specification Detail
Dial Size 4 inches / 100 mm
Pressure Range 0-1.6MPa
Case Type Dry / Non-Filled
Case Material Black Steel
Mounting Lower Mount
Connection Thread 3/8" NPT
Dial Design Color-Coded Safety Zones (Green/White/Red)
Accuracy Class ±1.6% FS
Understanding the Color-Coded Safety Zones
This air tank pressure gauge is engineered for immediate visual safety communication:
Zone Pressure Range Status Required Action
White Zone 0-0.4 MPa Low Pressure Check for system leaks, verify compressor operation, ensure proper pressurization
Green Zone 0.4-1.6 MPa Ideal Operating Range Normal operation--system pressure within safe, stored energy parameters
Red Zone Above 1.6 MPa DANGER - Overpressure IMMEDIATELY relieve pressure, shut down system, investigate cause before resuming operation

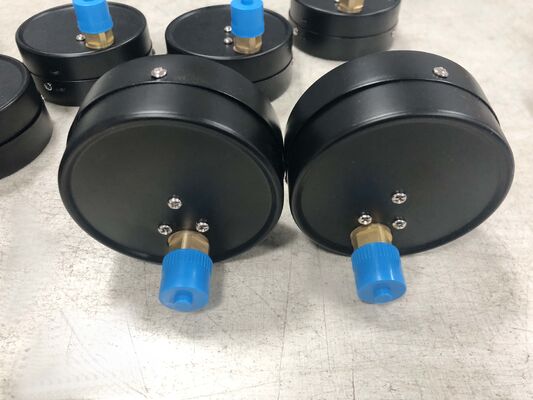

4-inch (100mm) Air Receiver Tank Pressure Gauge with 0-1.6MPa Range and Color-Coded Safety Zones 2
Why Every Air Receiver Needs a Properly Zoned Gauge
An air receiver tank pressure gauge is more than just a measuring instrument--it's a critical safety device:
  • Leak Detection: Pointer consistently in white zone indicates system cannot maintain pressure
  • Overpressure Prevention: Red zone warning prevents dangerous vessel over-pressurization
  • Operational Efficiency: Green zone confirms system is operating within design parameters
  • Maintenance Scheduling: Pressure trends help predict maintenance needs
Typical Applications
  • Air Compressor Receivers: Primary pressure monitoring on compressor tanks
  • Industrial Air Systems: Main header pressure indication
  • Pneumatic Control Systems: Supply pressure verification
  • Garage & Workshop Compressors: Safety monitoring for service equipment
  • Manufacturing Facilities: Plant air system pressure status
4-inch (100mm) Air Receiver Tank Pressure Gauge with 0-1.6MPa Range and Color-Coded Safety Zones 3
Installation Safety Notes
  1. Always install with an isolation valve between tank and gauge for safe removal
  2. Use thread sealant appropriate for compressed air service
  3. Position gauge for easy visibility during normal operations
  4. Verify pressure range matches your system's maximum operating pressure
Ordering & Technical Support
For assistance selecting the right air tank pressure gauge for your compressor system, contact our technical support team.
