40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems

200PCS
MOQ
Depends on total quantity
Price
40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM, ODM, OBM
Original Place: Made In China
Dial Size: 40mm, Or Made As Requirements
Warranty: 1Y
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Mount: Back
Material: Stainless Steel Case
Quality: 1 Year
Accuracy: 2.5%
Port: QingDao,ShangHai,TianJin,NingBo
ADVANTAGES: Moisture-proof,Wear Resistant,Eco-friendly,High-durable
Highlight:

40mm Dial Pressure Gauge

,

Glycerine Filled Manometer

,

2500kPa Oil Filled Pressure Gauge
Basic Infomation
Place of Origin: Qingdao,China
Brand Name: WYYW
Certification: CE & ISO9001
Model Number: YTN-40Z
Payment & Shipping Terms
Packaging Details: Inner plastic bag,export carton out side.Pallet optional.
Delivery Time: 5-30days
Payment Terms: TT,LC.Alipay.Western Union
Supply Ability: 30-50k per month
Product Description

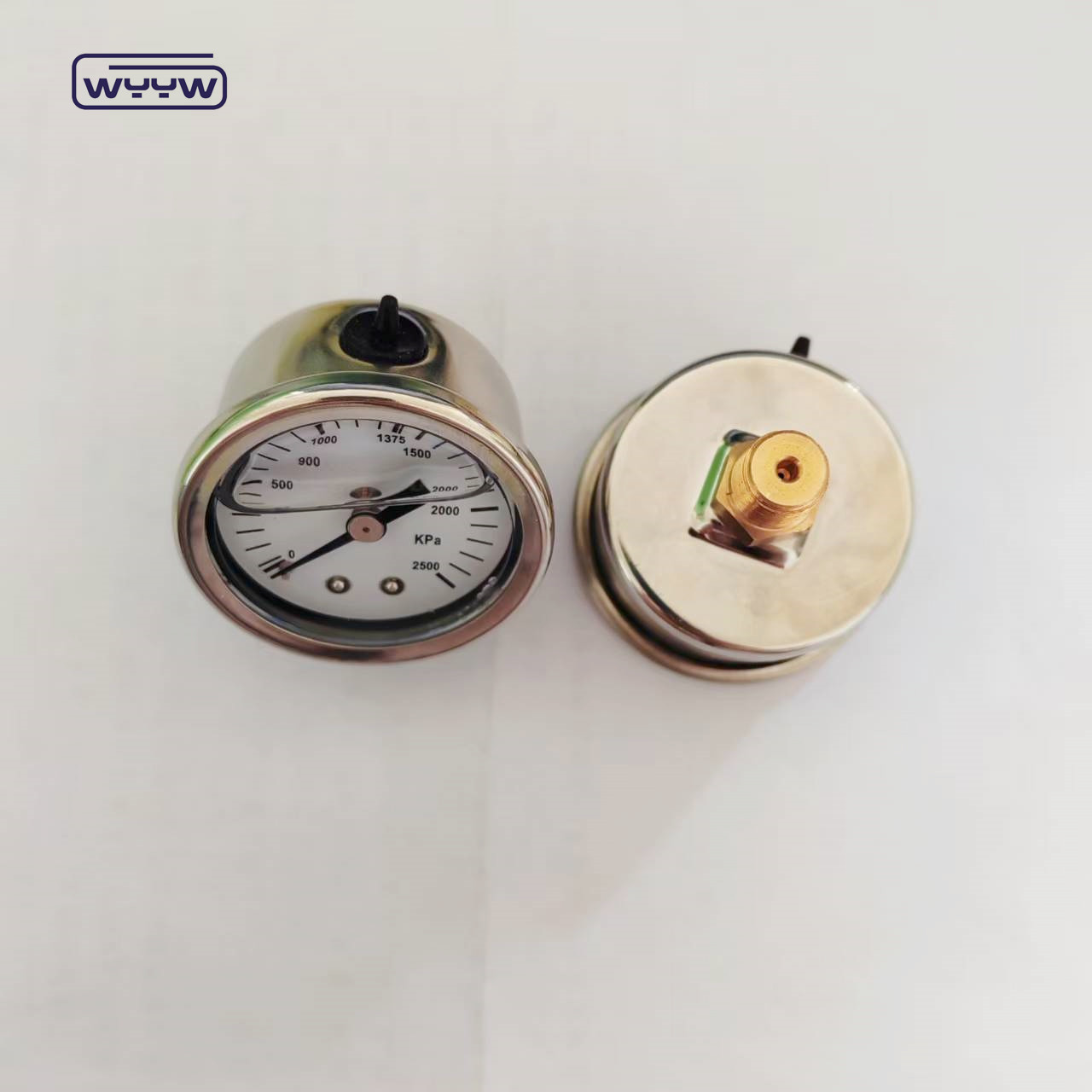

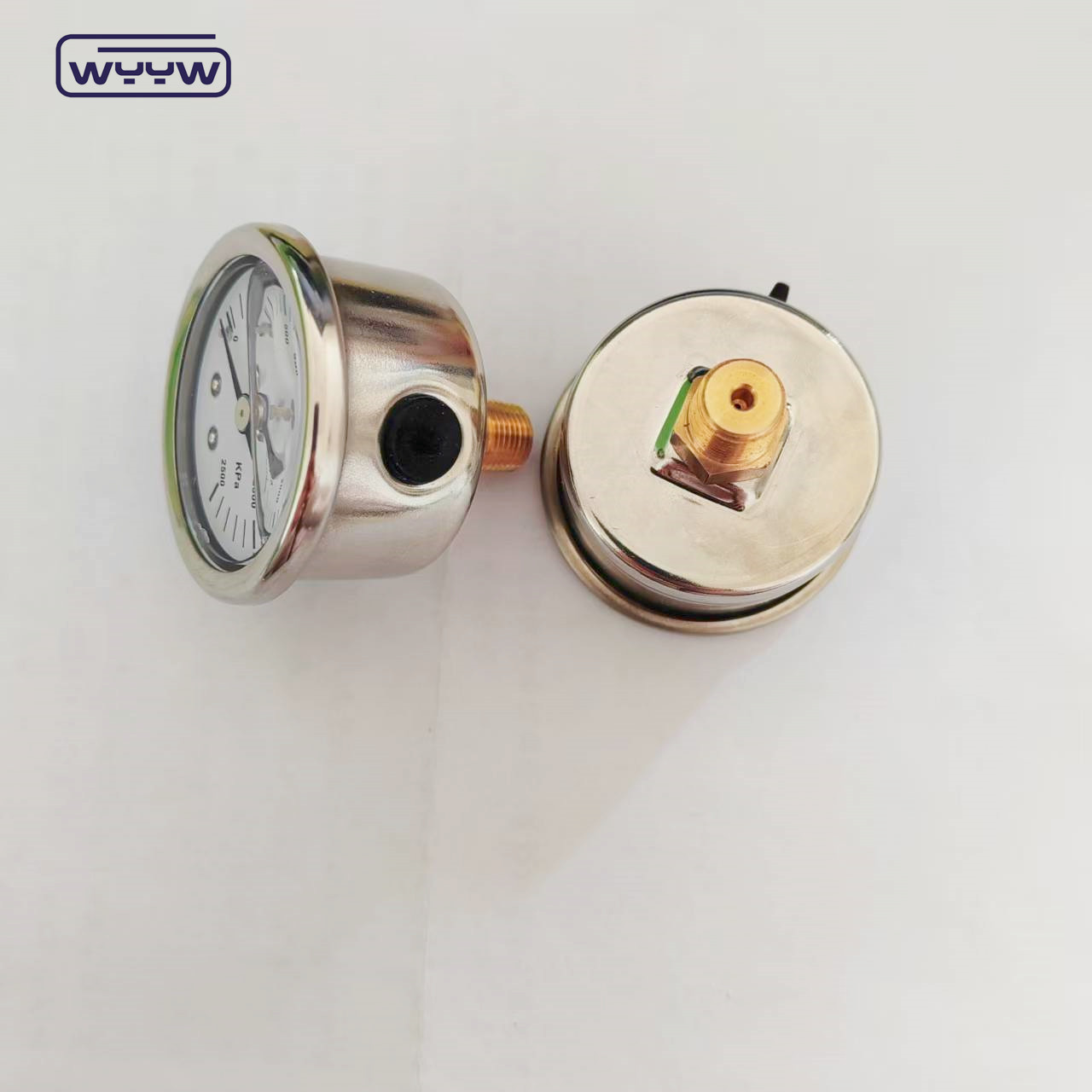

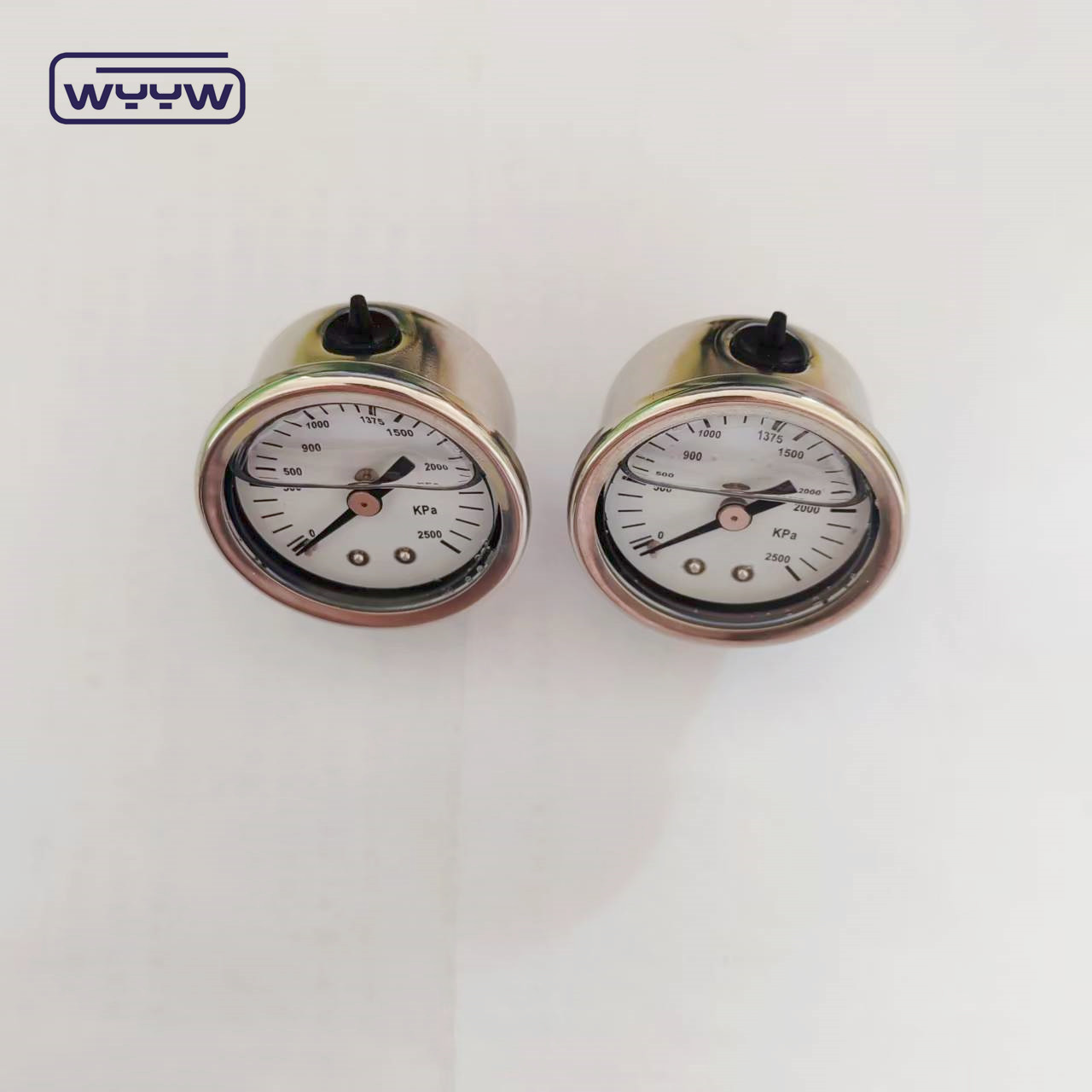

40mm Glycerine Filled Pressure Gauge 2500kPa For Fire Extinguishing System
40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems 0 40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems 1
Product Specifications
Name Oil filled pressure gauge
Dials Size 40/50/63/100/150mm (or custom sizes available)
Case Stainless steel case
Pressure Mpa, other scale units bar, psi, kg/cm2 etc. optional
Ring None
Movement Brass
Socket Brass
Bourdon tube Bronze
Dial plate and pointer Aluminum
Window Acrylic / Plastic
Connection sizes 1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"
Connection threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom/Back and panel
Accuracy 1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%
Pressure limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value
40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems 2 40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems 3 40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems 4
Product Applications
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems 5
Company Information
Qingdao DaZeFengYang is a professional pressure gauge and hardware tools manufacturer, and a member of China National Hardware Association.
Together with our highly skilled technical experts, we have put significant effort into meeting quality standards for pressure gauges as per GB/T (Chinese Standard) & International Standards requirements. We have obtained ISO9001 and CE certification for all our products, including pressure gauges, gas regulators, cutting torches, and welding torches.
Through years of development, we now offer an impressive selection of products, both special and standard, with competitive prices and reliable deliveries. Our speedy sales and after-sales service make our company attractive to customers worldwide, especially distributors and importers from Europe, Southeast Asia, Middle East, America, and Australia.
We welcome every friend to call, email, or visit our company. We sincerely hope to create a wonderful future together with you.
40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems 6 40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems 7 40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems 8
Packaging & Shipping
40mm Glycerine Filled Pressure Gauge 2500kPa for Fire Extinguishing Systems 9
Quality Advantages
  • Advanced Equipment and Professional Technology: We are committed to offering high-quality gauges with advanced equipment and professional technology for customers worldwide.
  • Best After-sales Service: Our company provides excellent after-sale service, aiming for long-term trade cooperation.
  • Rigorous Inspection Procedure with Excellent Quality: Our pressure gauges undergo 100% inspection, and we have passed ISO9001 and UL certification.
  • Quick Delivery: We provide timely delivery that always satisfies customer needs.
  • Convenient Purchase and Cost Savings: As a skilled manufacturer, we make purchasing convenient and offer high-quality products at reasonable prices.
  • OEM Orders: Over the years, we have fulfilled many OEM orders for well-known companies in the USA and European markets.
