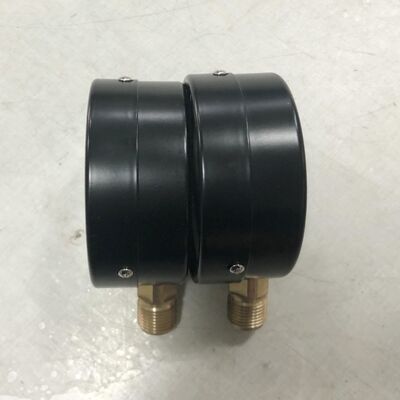

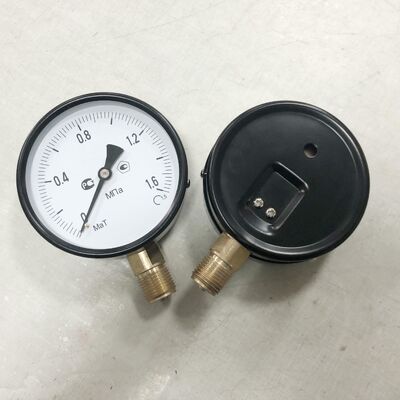

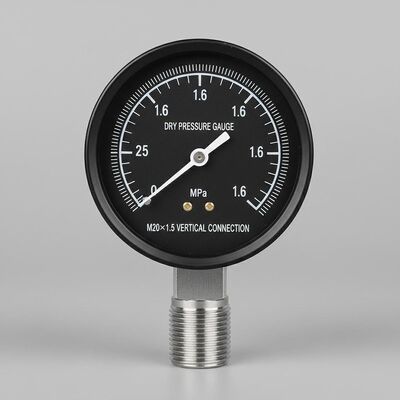

4-inch (100mm) Black Steel Case Dry Pressure Gauge with 0-1.6MPa Range and M20×1.5 Vertical Connection

Product Description

4" 100mm Black Steel Dry Pressure Gauge | 0-1.6MPa | M20×1.5 Vertical

Product Overview: Reliable Dry Pressure Measurement

Our 4-inch (100mm) Black Steel Pressure Gauge is a robust, cost-effective solution for general industrial pressure monitoring. Featuring a durable black steel case with brass internals and thread, this dry pressure gauge provides accurate readings without the need for liquid fill. With a 0-1.6MPa range and M20 ×1.5 vertical connection, this versatile pressure gauge meter is ideal for air, water, and hydraulic systems where simplicity and reliability are key.

Key Features & Benefits

Durable Black Steel Construction: The robust black steel case protects internal components from physical damage while providing long-lasting performance in standard industrial environments.
Precision Brass Internals: High-quality brass internals and thread ensure reliable operation and corrosion resistance for compatibility with air, water, oil, and non-corrosive gases.
Dry Gauge Design: As a true dry pressure gauge, it contains no fill fluid—perfect for static pressure applications and environments where liquid fill is not required or desired.
Clear 4-Inch Readability: The 100mm dial provides excellent visibility for at-a-glance pressure monitoring, making it an ideal pressure gauge meter for control panels and equipment.
Standard Vertical Connection: The M20 ×1.5 vertical (bottom) connection allows for straightforward installation on pipes, panels, and machinery.

Technical Specifications

Specification	Detail
Dial Size	4 inch / 100 mm
Gauge Type	Dry Pressure Gauge (Non-liquid filled)
Case Material	Black Steel
Internal Components	Brass
Connection Thread	M20×1.5
Connection Type	Vertical (Bottom Mount)
Pressure Range	0-1.6MPa
Accuracy Class	±1.6% FS
Window	Polycarbonate or Safety Glass

Typical Applications

This versatile pressure gauge meter is widely used for:

Compressed Air Systems: Monitoring air pressure in compressors, receivers, and distribution lines
Water Pumps & Hydraulics: Pressure indication on water pumps and hydraulic systems
Industrial Machinery: General pressure monitoring on production equipment
HVAC Systems: Air and water pressure in heating and cooling systems
Process Lines: Non-corrosive gas and liquid monitoring

Ordering & Technical Support

For technical specifications, pricing, or custom configuration assistance, please contact our technical support team.
