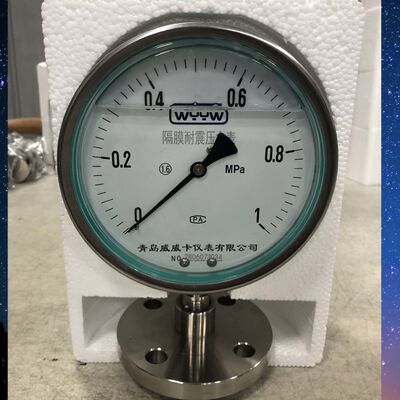

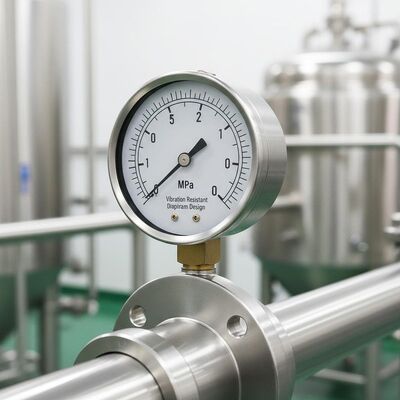

6-inch 150mm Sanitary Pressure Gauge with Flange | 0-1MPa Range | Vibration Resistant Diaphragm Design

Product Description

6" 150mm Sanitary Diaphragm Pressure Gauge | 0-1MPa | Vibration Resistant with Flange

Hygienic Pressure Measurement for Sensitive Processes

Our 6-inch (150mm) Sanitary Pressure Gauge represents the pinnacle of hygienic industrial instrumentation. Featuring a diaphragm seal type design with a flush-mounted sanitary flange, this all-stainless steel gauge is specifically engineered for applications where cleanliness, corrosion resistance, and easy cleaning are paramount. With a 0-1MPa range and built-in vibration resistance, this pressure gauge with flange is the optimal solution for food & beverage, pharmaceutical, biotechnology, and chemical processing industries.

Key Features & Benefits

Sanitary Diaphragm Seal Design: Features a flexible diaphragm that isolates the gauge mechanism from process media, preventing clogging and enabling thorough cleaning without damaging internal components.
Hygienic Flange Connection: Standard tri-clamp or flange connections enable quick installation, removal, and cleaning—essential for CIP and SIP processes.
Full Stainless Steel Construction: Entirely constructed from 316L/304 stainless steel for complete corrosion resistance and sanitary standards compliance.
Excellent Vibration Resistance: Diaphragm seal design and robust construction dampen process pulsation and vibration for stable, readable indications.
Superior Readability: Large 6-inch (150mm) dial allows for clear, precise readings from a distance in production facilities.

Technical Specifications

Specification	Detail
Dial Size	6 inches / 150 mm
Pressure Range	0-1MPa (Other ranges available)
Gauge Type	Diaphragm Seal Type Pressure Gauge
Connection	Sanitary Flange (Tri-Clamp, DIN, SMS, etc.)
Flange Size	1.5", 2", 3" Standard
Material (Wetted)	316L Stainless Steel
Material (Case)	304 Stainless Steel
Accuracy Class	±1.6% FS
Diaphragm Material	316L SS, Hastelloy, or Tantalum

Why Choose a Diaphragm Gauge with Flange?

Unlike standard pressure gauge with flange designs that merely add a mounting plate, our diaphragm seal type pressure gauge offers distinct advantages for demanding industries:

Process Isolation: Protects the sensitive Bourdon tube from corrosive, viscous, or high-temperature media.
Zero Process Dead Leg: Flush diaphragm design eliminates areas where product can accumulate, preventing bacterial growth.
Easy Maintenance: Gauge can be removed for calibration without draining the process line, with replaceable diaphragm if damaged.
Enhanced Safety: Contains process media safely behind the diaphragm, even in case of overpressure.

Typical Applications

This specialized gauge is essential for:

Food & Beverage Processing: Dairy, brewing, sauce production
Pharmaceutical & Biotechnology: Fermenters, bioreactors, purification systems
Cosmetics & Personal Care: Mixing vessels, filling lines
Chemical Processing: Corrosive or abrasive fluid handling
Pulp & Paper Industry: Chemical additive systems

Ordering & Configuration Support

Proper selection of diaphragm material, flange type, and process connections is crucial for optimal performance. Our engineering team provides expert configuration support for technical specifications, material compatibility, and sanitary standards compliance.
