Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range

200PCS
MOQ
Depends on total quantity
Price
Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Original Place: Made In China
Dial Size: 60mm, Or Made As Requirements
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Mount: Back
Quality: 1 Year
Producing Experience: 11 Years
Type: Vaccum / Negative Pressure
Port: QingDao,ShangHai,Ningbo, Guangzhou
ADVANTAGES: Moisture-proof,Wear Resistant,Eco-friendly,High-durable
Highlight:

Stainless Steel Vacuum Pressure Gauge

,

2" Dial Vacuum Gauge

,

Custom Pressure Range Negative Pressure Gauge
Basic Infomation
Place of Origin: Qingdao,China
Brand Name: WYYW
Certification: CE & ISO9001
Model Number: YZ-60Z
Payment & Shipping Terms
Packaging Details: Inner plastic bag,export carton out side.Pallet optional.
Delivery Time: 30days
Payment Terms: TT,LC.Alipay.Western Union
Supply Ability: 30-50k per month
Product Description
2" Vacuum Gauge - Stainless Steel Case (-30inHg-0/-76cmHg-0)

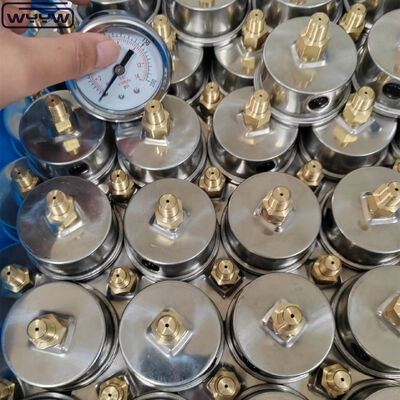

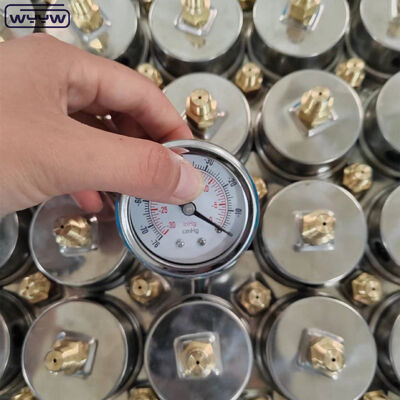

Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range 0 Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range 1
Specification Details
Product Name Vacuum Pressure Gauge
Dial Sizes 40/50/60/100/150mm (custom sizes available)
Case Material Black Steel Case
Pressure Units MPa, bar, psi, kg/cm² (other units optional)
Movement Material Brass
Socket Material Brass
Bourdon Tube Phosphor Bronze
Dial Plate & Pointer Aluminum
Window Material Glass
Connection Sizes 1/8" for 1.5", 1/4" for 2", 2.5" case; 1/2" for 4", 6"
Connection Threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Options Bottom (panel or back mounting available)
Accuracy 1.5"(40mm), 2"(50mm), 2.5"(63mm) - 2.5%
4"(100mm) and 6"(150mm) - 1.6%
Pressure Limitations Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value
Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range 2 Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range 3 Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range 4
Product Applications
  • Outdoor and severe ambient and process conditions
  • Applications with harmful vibration and pulsation
  • Hydraulic equipment and pressure washers
  • Oil field equipment, pumps, and compressors
  • Industrial process systems
Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range 5
Company Information
Qingdao DaZeFengYang is a professional pressure gauge and hardware tools manufacturer, and a member of China National Hardware Association. Our highly skilled technical experts ensure quality pressure gauges that meet GB/T (Chinese Standard) & International Standards requirements. We hold ISO9001 and CE certificates for all our products, including pressure gauges, gas regulators, cutting torches, and welding torches. Through years of development, we offer an impressive selection of standard and special products with competitive pricing and reliable deliveries. Our responsive sales and after-sales service make us a preferred partner for distributors and importers worldwide, particularly in Europe, Southeast Asia, Middle East, America, and Australia. We welcome inquiries, visits, and collaboration opportunities to build successful partnerships.
Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range 6 Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range 7 Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range 8
Packaging & Shipping
Stainless Steel Vacuum Pressure Gauge with 2" Dial Size and Custom Pressure Range 9
Our Advantages
  • Advanced Equipment & Professional Technology: Committed to delivering high-quality gauges using modern equipment and expertise
  • Superior After-sales Service: Dedicated to long-term trade partnerships with comprehensive support
  • Rigorous Quality Control: 100% inspection with ISO9001 and UL certification
  • Timely Delivery: In-time shipping to meet customer requirements
  • Cost-Effective Solutions: Direct manufacturer pricing for high-quality products
  • OEM Capabilities: Extensive experience serving major companies in USA and European markets
