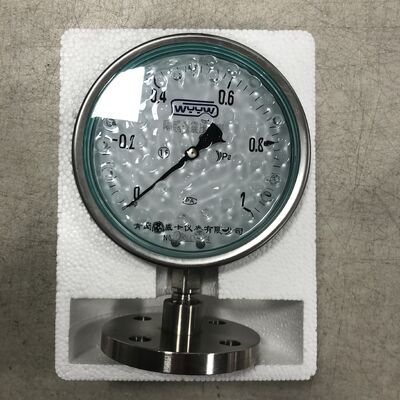

DN25 Flange Size Diaphragm Pressure Gauge with Bottom Mount and Bourdon Tube Configuration for Industrial Applications

1-200PCS
MOQ
DN25 Flange Size Diaphragm Pressure Gauge with Bottom Mount and Bourdon Tube Configuration for Industrial Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Keyword: Pressure Gauge
Customized Support: OEM, ODM, OBM
Connection Location: Bottom
Thread Standard: NPT, BSP (G, PF), BSPT (ZG, PT)
Over Pressure: 1.5×FS
Size: 2.5"
Connection Size: 1/2 Inch NPT
Flange Size: DN25 (can Be Customized For Other Size)
Highlight:

DN25 flange diaphragm pressure gauge

,

bottom mount diaphragm pressure gauge

,

industrial Bourdon tube pressure gauge
Basic Infomation
Brand Name: WYYW
Certification: CE ISO9001
Model Number: YTN100
Payment & Shipping Terms
Product Description
DN25 Membrane Pressure Gauge with Clamp Sizes 50.5mm/64mm
This industrial-grade diaphragm pressure gauge delivers precise pressure measurement across demanding applications. Engineered with a diaphragm seal system, it effectively isolates the pressure-sensing element from corrosive, viscous, or particulate-laden process media, ensuring long-term reliability and consistent performance.
Key Features
  • Product Name: Diaphragm Pressure Gauge
  • Clamp Size: 50.5mm / 64mm for pressure gauge tri-clamp connections
  • Connection Size: 1/2 Inch NPT for secure standard fittings
  • Mounting Type: Bottom Mount for easy installation and reading
  • OEM Available: Yes, supporting customized production needs
  • Customized Support: OEM, ODM, OBM services available
  • Diaphragm seal design ensures accurate and reliable measurements
  • Ideal for applications requiring sensitive pressure detection
Technical Specifications
Over Pressure 1.5×FS
Clamp Size 50.5mm/64mm
Connection Location Bottom
Flange Size DN25 (Customizable for other sizes)
OEM Yes
Customized Support OEM, ODM, OBM
Mounting Type Bottom Mount
Configuration Bourdon Tube
Industrial Applications
The WYYW YTN100 Diaphragm Pressure Gauge excels in chemical processing, food and beverage, pharmaceutical, water treatment, oil and gas, and HVAC systems. Its tri-clamp connection design is particularly suitable for sanitary applications requiring easy cleaning and maintenance.
Quality Certifications
CE Certified ISO9001 Certified
Manufactured in Qingdao, China with international quality standards compliance.
Customization Services
We offer comprehensive customization including various thread standards (NPT, BSP, BSPT), alternative flange sizes, and OEM branding. Minimum order quantities range from 1 to 200 pieces to accommodate both small and large projects.
Technical Support & Services
Our technical support team provides calibration, repair, and replacement services to ensure optimal performance. Regular maintenance and calibration are recommended to extend instrument lifespan and maintain measurement accuracy.
