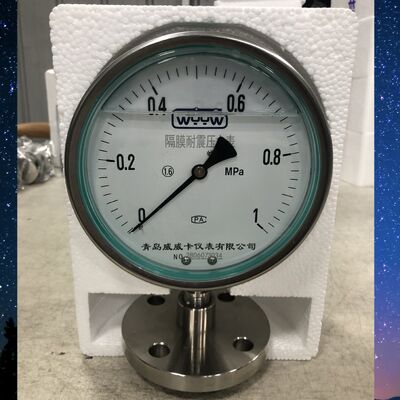

Customized Support OBM Diaphragm Pressure Gauge Bottom Connection 1/2 Inch NPT Heavy Duty Pressure Detection Instrument

Product Description:

The Diaphragm Pressure Gauge is a highly reliable and versatile instrument designed to measure pressure with exceptional accuracy and durability. Engineered to meet the demanding requirements of various industrial applications, this diaphragm type pressure gauge offers superior performance and longevity. One of the standout features of this product is its robust diaphragm sensing element, which ensures precise pressure readings while protecting the internal components from corrosive or viscous media, making it ideal for use in harsh environments.

This pressure gauge tri clamp model features a convenient bottom connection location, facilitating easy installation and integration into existing systems. The bottom connection design is particularly advantageous for applications where space is limited or where the gauge needs to be mounted on horizontal pipes or vessels. With a clamp size available in both 50.5mm and 64mm options, it offers flexibility to fit a range of tri clamp fittings, ensuring a secure and leak-proof seal. This adaptability makes the diaphragm pressure gauge tri clamp an excellent choice for industries such as food and beverage, pharmaceuticals, chemical processing, and more.

Durability and safety are paramount in the design of this diaphragm type pressure gauge. It is engineered to withstand over pressure up to 1.5 times the full scale (FS), providing an extra margin of safety and preventing damage under unexpected pressure spikes. This feature contributes to the longevity of the gauge and reduces maintenance requirements, minimizing downtime and operational costs. The gauge’s robust construction and reliable performance make it suitable for continuous use in critical pressure monitoring applications.

Customization is a key advantage of this product. The manufacturer offers comprehensive support for OEM (Original Equipment Manufacturer), ODM (Original Design Manufacturer), and OBM (Own Brand Manufacturer) services. This means customers can request tailored designs, branding, and specifications to perfectly match their unique operational needs. Whether you require specific pressure ranges, dial configurations, or special materials for the diaphragm and housing, the customized support ensures that the pressure gauge tri clamp you receive is precisely aligned with your requirements.

Another significant benefit of this diaphragm pressure gauge is the included warranty. With a 1-year warranty covering parts and workmanship, users can have confidence in the quality and reliability of the product. This warranty reflects the manufacturer’s commitment to customer satisfaction and product excellence. Should any issues arise within the warranty period, prompt support and service are available to address and resolve them efficiently.

In summary, the Diaphragm Pressure Gauge with tri clamp connection is an exceptional instrument combining accuracy, durability, and customization. Its diaphragm type sensing mechanism ensures precise pressure measurement even in challenging environments, while the bottom connection and multiple clamp size options provide installation flexibility. The capability to withstand over pressure up to 1.5×FS adds an important layer of protection and reliability. Supported by a 1-year warranty and extensive OEM, ODM, and OBM customization services, this pressure gauge tri clamp model stands out as a dependable choice for industrial pressure monitoring needs. Whether for food processing, pharmaceutical production, chemical plants, or other industrial sectors, this diaphragm pressure gauge guarantees performance, safety, and adaptability.

Features:

• Product Name: Diaphragm Pressure Gauge
• Type: Diaphragm seal type pressure gauge
• Size: 2.5 inches
• Application: Suitable for corrosive and viscous media
• Mounting Type: Bottom mount
• Customized Support: OEM, ODM, OBM available
• Designed as a diaphragm pressure gauge for accurate and reliable measurements
• Ideal for use in environments requiring a diaphragm seal type pressure gauge

Technical Parameters:

Applications:

The WYYW YTN100 diaphragm type pressure gauge is a highly reliable and durable instrument designed for precise pressure measurement in challenging environments. Manufactured in Qingdao, China, this product boasts CE and ISO9001 certifications, ensuring compliance with international quality standards. Its robust construction and specialized configuration make it an ideal choice for various industrial applications involving corrosive and viscous media.

This diaphragm pressure gauge features a Bourdon tube configuration with a 1/2 inch NPT bottom connection, facilitating easy installation and compatibility with standard piping systems. The gauge is equipped with a DN25 flange size, which can be customized to suit other flange dimensions, providing flexibility for diverse operational requirements. Such adaptability makes it particularly valuable in industries where precise pressure monitoring is critical.

One of the primary application occasions for the WYYW YTN100 is in sanitary environments where hygiene and contamination control are paramount. As a sanitary pressure gauge, it is frequently used in food and beverage processing, pharmaceutical manufacturing, and biotechnology sectors. Its diaphragm design prevents direct contact between the pressure-sensitive components and the process medium, protecting the gauge from damage and ensuring accurate readings even with aggressive substances.

Additionally, this chemical pressure gauge excels in handling corrosive and viscous media, such as acids, alkalis, oils, and slurries. It is widely employed in chemical plants, petrochemical industries, water treatment facilities, and other sectors requiring robust pressure measurement solutions resistant to harsh chemicals. The diaphragm type pressure gauge’s ability to isolate the sensing element from the process fluid extends its lifespan and reduces maintenance needs, resulting in cost-effective operation.

The WYYW YTN100 is suitable for both small-scale installations and large industrial setups, with a minimum order quantity ranging from 1 to 200 pieces, making it accessible for various project sizes. Whether used for routine pressure monitoring, safety control, or process optimization, this diaphragm pressure gauge delivers reliable performance under demanding conditions, affirming its place as a trusted instrument in the field of pressure measurement.

Customization:

WYYW offers comprehensive product customization services for the YTN100 diaphragm pressure gauge, designed specifically for applications involving corrosive and viscous media. As a trusted brand originating from Qingdao, China, our diaphragm seal type pressure gauge ensures reliable performance and durability.

Our diaphragm pressure gauge types can be tailored to meet your exact specifications, including a 2.5" size and bottom connection location. We provide full customized support through OEM, ODM, and OBM services to accommodate your unique requirements.

Certified with CE and ISO9001, the YTN100 diaphragm pressure gauge guarantees high quality and compliance with international standards. Whether you need a single unit or bulk orders ranging from 1 to 200 PCS, WYYW is ready to deliver precision-engineered pressure gauges that fit your needs perfectly.

Choose WYYW for dependable diaphragm pressure gauge solutions that combine advanced technology with customizable options, ensuring optimal performance in challenging environments.

Support and Services:

Our Diaphragm Pressure Gauge is designed to provide accurate and reliable pressure measurements for a variety of industrial applications. For technical support, please ensure the gauge is installed correctly according to the user manual, with proper orientation and connection to the pressure source.

Before installation, verify that the pressure range of the gauge matches the system requirements to avoid damage or inaccurate readings. Use appropriate sealing materials to prevent leaks and ensure system integrity.

Regular maintenance includes periodic inspection for any signs of diaphragm wear, corrosion, or mechanical damage. Clean the gauge with a soft cloth and avoid using harsh chemicals that may degrade the diaphragm material.

If you encounter any performance issues such as erratic readings or physical damage, discontinue use immediately and consult the troubleshooting section of the product manual. Replacement parts and accessories are available to maintain optimal functionality.

For optimal performance, avoid exposing the diaphragm pressure gauge to pressures exceeding its maximum rated limit, extreme temperatures, or corrosive environments beyond the specified compatibility.

Our technical support team is ready to assist with installation guidance, troubleshooting, calibration services, and product customization to meet specific application needs.

We recommend periodic calibration to ensure measurement accuracy, which can be performed in-house with appropriate equipment or through our certified calibration services.

For detailed service procedures and technical documentation, please refer to the product manual or our online resources.
