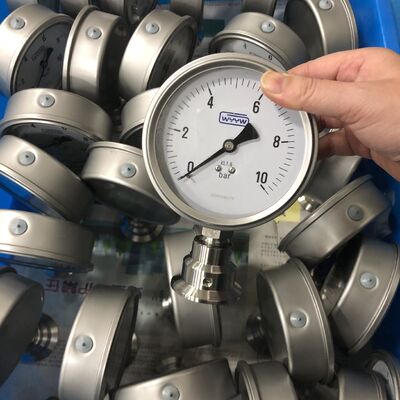

Over Pressure 1.5×FS Diaphragm Pressure Gauge OEM Customized Support Provides and Accurate Pressure Data for Industrial

Product Description:

The Diaphragm Pressure Gauge is a highly reliable and precise instrument designed for accurate pressure measurement in various industrial applications. Featuring a diaphragm pressure gauge diaphragm seal, this product ensures optimal protection of the sensing element from corrosive, viscous, or high-temperature media, extending the lifespan and maintaining the accuracy of the gauge. This makes it an ideal choice for industries such as chemical processing, pharmaceuticals, food and beverage, and petrochemical sectors where contamination or media compatibility is a concern.

One of the key highlights of this diaphragm seal type pressure gauge is its robust construction combined with a sensitive membrane pressure gauge mechanism. The diaphragm acts as a barrier, isolating the pressure-sensing element from the process fluid, which prevents clogging, corrosion, or damage. This design feature is particularly beneficial when measuring pressure in harsh environments or with aggressive fluids, ensuring consistent and reliable readings over time.

This diaphragm pressure gauge comes with a connection size of 1/2 Inch NPT, providing a standardized and secure method for installation into various pipelines and process systems. The 1/2 Inch NPT connection facilitates easy integration with existing equipment, making it suitable for both new installations and retrofitting projects. Additionally, the gauge is available with clamp sizes of 50.5mm and 64mm, offering flexibility to accommodate different mounting requirements and ensuring a tight, leak-free fit.

Designed with durability in mind, this diaphragm seal type pressure gauge can withstand overpressure conditions up to 1.5 times the full scale (FS) rating. This overpressure tolerance safeguards the instrument against potential damage from sudden pressure spikes or surges, enhancing its reliability and reducing maintenance costs. Users can confidently deploy this gauge in demanding environments, knowing it will maintain performance even under challenging conditions.

The size of the gauge itself is 2.5 inches, providing a compact yet easily readable display. This dimension strikes a balance between visibility and space efficiency, making it suitable for installations where panel space is limited but clear pressure indication is necessary. The gauge dial is designed for quick and precise reading, minimizing the risk of operator error and improving overall process control.

Moreover, the Diaphragm Pressure Gauge supports OEM customization, allowing manufacturers and end-users to tailor the product to their specific requirements. This flexibility includes options for different diaphragm materials, ranges, and connection configurations, ensuring compatibility with a wide variety of industrial processes. OEM availability means that this pressure gauge diaphragm seal can be seamlessly integrated into bespoke systems or branded solutions, enhancing its versatility and appeal.

In summary, this diaphragm seal type pressure gauge offers a perfect combination of durability, accuracy, and adaptability. Its membrane pressure gauge design with a diaphragm protection system ensures long-term reliability, even in harsh or corrosive environments. The 1/2 Inch NPT connection and clamp sizes of 50.5mm and 64mm provide easy installation and secure fitting, while the overpressure capacity of 1.5×FS guarantees resilience against pressure fluctuations. Compact and easy to read at 2.5 inches, it suits a wide range of industrial applications. With OEM customization available, this diaphragm pressure gauge diaphragm seal is an excellent choice for those seeking a dependable and customizable pressure measurement solution.

Features:

• Product Name: Diaphragm Pressure Gauge
• Connection Size: 1/2 Inch NPT
• Mounting Type: Bottom Mount
• Over Pressure Capacity: 1.5×FS
• Customized Support: OEM, ODM, OBM available
• Suitable for tri clamp pressure gauge applications
• Designed as a diaphragm seal pressure gauge for enhanced durability
• Ideal for autoclave pressure gauge usage
• Accurate and reliable pressure measurement

Technical Parameters:

Applications:

The WYYW YTN100 diaphragm pressure gauge is a highly reliable and versatile instrument designed for accurate pressure measurement in various industrial and commercial applications. Manufactured in Qingdao, China, this diaphragm seal type pressure gauge boasts CE and ISO9001 certifications, ensuring top-notch quality and compliance with international standards. Its robust construction and precise measurement capabilities make it an ideal choice for monitoring pressure in environments where traditional gauges might fail due to corrosive media or sanitary requirements.

The diaphragm pressure gauge types, including the YTN100 model, are specifically engineered to handle challenging conditions such as corrosive fluids, viscous substances, and high-purity applications. The diaphragm seal acts as a barrier between the pressure-sensing element and the process media, preventing damage and maintaining accuracy. This feature makes the WYYW diaphragm pressure gauge perfect for use in chemical processing, pharmaceuticals, food and beverage industries, and water treatment plants where hygiene and safety are paramount.

The compact 2.5" size and bottom connection location of the YTN100 model allow for easy installation in tight spaces and integration into existing systems. Its ability to withstand overpressure up to 1.5 times the full scale (FS) ensures durability and reliability even under fluctuating pressure conditions. The gauge supports customized solutions with OEM, ODM, and OBM services, catering to specific client requirements and applications.

In practical scenarios, the diaphragm pressure gauge is widely used for monitoring pressure in pipelines, tanks, and vessels containing aggressive or sensitive fluids. It is essential in industries such as petrochemical, power generation, and environmental monitoring, where precise and stable pressure readings are critical for safety and operational efficiency. Additionally, its adaptability makes it suitable for laboratory and research settings where accurate pressure measurement is necessary.

With a minimum order quantity ranging from 1 to 200 pieces, WYYW accommodates both small-scale projects and large industrial orders. The diaphragm pressure gauge types offered by WYYW, especially the YTN100, combine advanced engineering with customizable options, making them a preferred solution for diverse pressure measurement challenges worldwide.

Customization:

WYYW offers customized product solutions for the YTN100 diaphragm pressure gauge, designed to meet diverse industrial requirements. This diaphragm type pressure gauge is ideal for applications involving corrosive and viscous media, ensuring reliable performance and durability. Manufactured in Qingdao, China, the product is certified with CE and ISO9001 standards, guaranteeing high quality and safety.

Customers can choose from various thread standards including NPT, BSP (G, PF), and BSPT (ZG, PT), with a bottom mount and bottom connection to suit specific installation needs. The pressure gauge diaphragm seal is engineered to provide precise measurement and protection against harsh environments, making it an excellent choice for chemical pressure gauge applications.

With a minimum order quantity ranging from 1 to 200 pieces, WYYW accommodates both small and large scale orders. The YTN100 model comes with a 1-year warranty, reflecting the brand's commitment to quality and customer satisfaction. Trust WYYW’s customized diaphragm type pressure gauge solutions for accurate and reliable pressure measurement in challenging chemical environments.

Support and Services:

Our Diaphragm Pressure Gauge is designed to provide accurate and reliable pressure measurement in various industrial applications. For technical support, please refer to the product manual for installation, calibration, and maintenance guidelines to ensure optimal performance and longevity of the gauge.

If you encounter any issues with the diaphragm pressure gauge, verify that the device is installed correctly and that the pressure ranges are within the specified limits. Ensure that the diaphragm is not exposed to corrosive substances beyond its material compatibility, as this could affect accuracy and durability.

Regular maintenance includes periodic inspection of the diaphragm for signs of wear or damage, cleaning the gauge to prevent contamination, and recalibrating the device as recommended. Avoid subjecting the gauge to excessive mechanical shock or vibration to prevent damage to internal components.

For service and repair, only authorized technicians should handle the diaphragm pressure gauge to maintain warranty and product integrity. Replacement parts and accessories are available to support ongoing operation and to customize the gauge for specific application needs.

Our technical support team is committed to assisting with troubleshooting, product selection, and application advice to help you maximize the benefits of your diaphragm pressure gauge.
