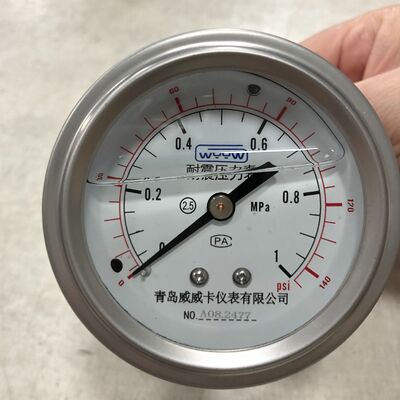

Bottom Mount Diaphragm Pressure Gauge 2.5 Inch Diameter Featuring Over Pressure Capacity 1.5 Times Full Scale for Accurate Measurement

Product Description:

The Diaphragm Pressure Gauge is a highly reliable and versatile instrument designed to measure pressure accurately in a variety of industrial applications. Featuring a robust 2.5-inch dial size, this pressure gauge ensures clear and precise readings, making it an essential tool for monitoring pressure levels in critical systems. Its compact yet durable design allows for easy installation and maintenance, providing consistent performance in demanding environments.

One of the standout features of this pressure gauge is its connection size, which is 1/2 inch NPT. This standard connection size ensures compatibility with a wide range of piping and equipment, facilitating seamless integration into existing systems. The gauge is equipped with a bottom connection, which is ideal for specific installation requirements where space constraints or orientation preferences exist. This bottom connection design also contributes to the gauge’s ease of use and accessibility during routine checks and adjustments.

The thread standard of this diaphragm pressure gauge is versatile, supporting multiple threading options including NPT, BSP (G, PF), and BSPT (ZG, PT). This flexibility allows it to be used globally, accommodating various regional threading standards without the need for additional adapters. Whether you are working on systems that require National Pipe Taper (NPT) threads or British Standard Pipe (BSP) threads, this gauge offers reliable compatibility and secure connections.

A key component of this pressure gauge is the diaphragm seal, which plays a critical role in protecting the gauge’s internal mechanism from corrosive, viscous, or high-temperature media. The pressure gauge diaphragm seal acts as a barrier, isolating the sensing element from the process fluid while transmitting pressure accurately through the diaphragm. This feature significantly extends the life span of the gauge by preventing damage and contamination, making it ideal for harsh industrial environments such as chemical processing, pharmaceuticals, and food production.

In applications requiring sterilization or high cleanliness standards, such as autoclaves, the diaphragm seal pressure gauge proves to be indispensable. The autoclave pressure gauge variant is specifically designed to withstand high temperatures and steam exposure, ensuring reliable pressure monitoring during sterilization cycles. Its diaphragm seal construction prevents fluid ingress and maintains the integrity of the gauge under extreme conditions, providing operators with confidence in the accuracy and durability of their pressure measurements.

Moreover, this diaphragm seal pressure gauge is engineered for ease of installation and maintenance. The modular design allows for quick replacement of the diaphragm seal or gauge without disrupting the entire system, reducing downtime and operational costs. The materials used in construction are carefully selected to resist corrosion and wear, further enhancing the gauge’s longevity and performance.

Overall, the Diaphragm Pressure Gauge with a 1/2 inch NPT connection, 2.5-inch size, and bottom connection offers a comprehensive solution for pressure measurement needs across various industries. Its compatibility with multiple thread standards (NPT, BSP (G, PF), BSPT (ZG, PT)) ensures it fits seamlessly into diverse systems worldwide. The inclusion of a diaphragm seal not only protects the gauge but also enables its use in challenging applications such as autoclave pressure monitoring and other critical processes requiring hygienic and reliable pressure measurement.

Whether you need a pressure gauge diaphragm seal for corrosive fluids, an autoclave pressure gauge for sterilization environments, or a diaphragm seal pressure gauge for sensitive industrial applications, this product delivers precision, durability, and versatility. It stands out as a dependable instrument that enhances safety, efficiency, and accuracy in pressure monitoring tasks, making it an excellent choice for engineers, technicians, and plant operators alike.

Features:

• Product Name: Diaphragm Pressure Gauge
• Mounting Type: Bottom Mount
• Warranty: 1 Year
• Thread Standard: NPT, BSP (G, PF), BSPT (ZG, PT)
• Flange Size: DN25 (can be customized for other sizes)
• Suitable for various diaphragm pressure gauge types
• Ideal as a chemical pressure gauge for accurate measurement
• Designed for reliable performance in chemical pressure gauge applications

Technical Parameters:

Applications:

The WYYW YTN100 Diaphragm Pressure Gauge is a highly reliable and versatile instrument designed for precise pressure measurement in various industrial applications. Originating from Qingdao, China, this product is manufactured with strict adherence to CE and ISO9001 certifications, ensuring the highest quality and performance standards. With a minimum order quantity ranging from 1 to 200 pieces, the YTN100 model accommodates both small-scale and large-scale procurement needs.

This membrane pressure gauge features a bottom mount connection and is available with thread standards including NPT, BSP (G, PF), and BSPT (ZG, PT), providing compatibility with a wide range of piping systems. The gauge is equipped with a diaphragm element, making it ideal for applications that require sanitary pressure measurement, where contamination prevention and easy cleaning are critical. The flange size is DN25, but customization options are available to meet specific installation requirements.

The WYYW sanitary pressure gauge is widely used in industries such as food and beverage, pharmaceuticals, chemical processing, and water treatment, where maintaining hygienic conditions is paramount. Its diaphragm design allows for accurate measurement of corrosive, viscous, or particulate-laden fluids without damaging the sensing element. This makes it especially useful in scenarios involving harsh media or where traditional bourdon tube gauges might fail.

Installation occasions for the YTN100 diaphragm pressure gauge include sanitary pipelines, tanks, reactors, and filtration systems. Its bottom mount and customizable flange size facilitate easy integration into existing systems, ensuring seamless monitoring of pressure levels. The gauge is also suitable for cleanroom environments and applications requiring frequent sterilization, thanks to its sanitary design.

With a warranty of one year, the WYYW YTN100 provides users with confidence in its durability and long-term performance. Whether used in food processing plants to monitor steam pressure, in pharmaceutical manufacturing for aseptic processes, or in chemical plants handling aggressive fluids, this sanitary pressure gauge delivers precise and reliable readings. Its robust construction and membrane technology make it an indispensable tool for maintaining system safety and efficiency across various pressure measurement scenarios.

Customization:

WYYW offers customized Product Customization Services for the Diaphragm Pressure Gauge, model YTN100, originating from Qingdao, China. Our diaphragm type pressure gauge is designed with a Bourdon tube configuration to ensure precise and reliable pressure measurement.

The pressure gauge features a flange size of DN25, which can be customized to other sizes based on your requirements. It supports over pressure up to 1.5×FS and is compatible with various thread standards including NPT, BSP (G, PF), and BSPT (ZG, PT).

Certified with CE and ISO9001, our pressure gauge tri clamp solutions guarantee quality and durability. Whether you need a single unit or a bulk order ranging from 1 to 200PCS, we can accommodate your minimum order quantity efficiently.

Our tri clamp pressure gauge variants are ideal for applications requiring sanitary connections and easy maintenance. Trust WYYW for high-quality, customizable pressure gauge tri clamp products tailored to your specifications.

Support and Services:

Our Diaphragm Pressure Gauge is designed to provide accurate and reliable pressure measurement for a variety of industrial applications. To ensure optimal performance, please follow these guidelines for installation, operation, and maintenance.

Installation: Mount the gauge securely in a location that is easily accessible for reading and maintenance. Avoid placing the gauge near sources of vibration, extreme temperature fluctuations, or corrosive environments unless it is specifically designed for such conditions. Use appropriate fittings to connect the gauge to the pressure source, ensuring no leaks.

Operation: Before use, verify that the gauge’s pressure range matches the application requirements. Gradually apply pressure to avoid damaging the diaphragm. Monitor the gauge regularly to ensure it is functioning correctly and providing accurate readings.

Maintenance: Regularly inspect the gauge for signs of wear, damage, or corrosion. Clean the gauge face and diaphragm with a soft cloth and mild detergent if necessary. Avoid using solvents or abrasive materials. Calibrate the gauge periodically according to the manufacturer’s recommendations to maintain accuracy.

Troubleshooting: If the gauge shows erratic or no readings, check for blockages or leaks in the pressure line. Ensure the diaphragm is not damaged or deformed. Replace the gauge if it fails to respond correctly after troubleshooting.

For any technical support or service inquiries, please refer to the product manual or contact your authorized service center.
