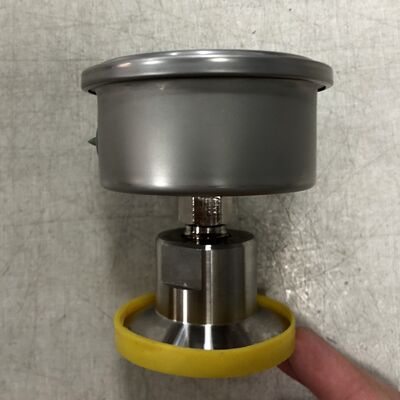

Oem Chemical Pressure Gauge Clamp Size 505mm and 64mm Instrument for Pressure Measurement in Harsh Chemical Environments

Product Description:

The Diaphragm Pressure Gauge is a highly reliable and versatile instrument designed for accurate pressure measurement in a wide range of industrial applications. Featuring a Bourdon Tube configuration, this gauge provides precise readings by converting pressure into mechanical displacement, ensuring consistent performance and durability. The Bourdon Tube mechanism is well-known for its robustness and sensitivity, making this diaphragm pressure gauge an ideal choice for environments where pressure monitoring is critical.

This pressure gauge is equipped with a diaphragm seal type pressure gauge design, which enhances its functionality by isolating the measuring element from the process fluid. This feature is particularly beneficial when dealing with corrosive, viscous, or high-temperature media, as it prevents damage to the internal components and extends the service life of the gauge. The diaphragm seal also ensures that the pressure readings remain accurate and stable, even under challenging conditions.

One of the standout features of this product is its flange size of DN25, which provides a robust and secure connection to the process line. The DN25 flange size is standard for many industrial applications, but the gauge also supports customization for other flange sizes to meet specific installation requirements. This flexibility allows the diaphragm pressure gauge to be seamlessly integrated into various systems, accommodating different piping configurations and process demands.

The mounting type of this diaphragm pressure gauge is bottom mount, which offers practical advantages for ease of installation and readability. Bottom mount gauges are commonly used in vertical pipe setups or panel installations, enabling users to view the readings clearly without obstructing the process flow. The compact size of 2.5 inches makes this gauge suitable for installations where space is limited, without compromising the visibility or accuracy of the measurements.

In addition to its technical specifications, this diaphragm pressure gauge supports comprehensive customization options, including OEM (Original Equipment Manufacturer), ODM (Original Design Manufacturer), and OBM (Own Brand Manufacturer) services. This means that customers can tailor the product according to their specific branding, design, and functional requirements. Whether you need a tri clamp pressure gauge variant for sanitary applications or a membrane pressure gauge for delicate process fluids, this product can be adapted to suit your needs.

The tri clamp pressure gauge configuration is particularly valuable in industries such as food and beverage, pharmaceuticals, and biotechnology, where hygiene and ease of cleaning are paramount. The tri clamp connection ensures a secure, leak-proof seal that can be quickly disassembled for maintenance or cleaning, reducing downtime and enhancing operational efficiency. This feature, combined with the diaphragm seal type pressure gauge design, makes the product highly suitable for sterile and sanitary environments.

Overall, the Diaphragm Pressure Gauge offers a combination of precision, durability, and adaptability. Its Bourdon Tube configuration guarantees reliable pressure measurement, while the diaphragm seal protects the instrument from harsh process conditions. The DN25 flange size with customizable options, bottom mounting type, and compact 2.5-inch size provide installation flexibility. Furthermore, the availability of OEM, ODM, and OBM customization ensures that this pressure gauge can meet diverse industrial requirements.

Whether used as a tri clamp pressure gauge in sanitary processes or as a membrane pressure gauge in sensitive applications, this diaphragm pressure gauge is engineered to deliver exceptional performance and long-term reliability. It is an excellent choice for industries that demand accurate pressure monitoring combined with robust construction and flexible installation options.

Features:

• Product Name: Diaphragm Pressure Gauge
• Configuration: Bourdon Tube
• Size: 2.5"
• Over Pressure: 1.5×FS
• Flange Size: DN25 (can be customized for other sizes)
• Mounting Type: Bottom Mount
• Suitable for various diaphragm pressure gauge types
• Designed as a sanitary pressure gauge for hygienic applications
• Also known as a membrane pressure gauge for accurate pressure measurement

Technical Parameters:

Applications:

The WYYW YTN100 diaphragm pressure gauge is a versatile and reliable instrument designed to measure pressure accurately in a variety of industrial applications. Manufactured in Qingdao, China, and certified with CE and ISO9001 standards, this diaphragm seal type pressure gauge ensures precision and durability under demanding conditions. Its compact 2.5" size, combined with a flange size of DN25 (customizable upon request), makes it adaptable to various installation requirements.

This diaphragm pressure gauge model is especially suitable for environments where the process medium is corrosive, viscous, or prone to clogging, as the diaphragm seal protects the sensing element from direct contact with the medium. The gauge’s thread standard options include NPT, BSP (G, PF), and BSPT (ZG, PT), with a connection size of 1/2 inch NPT, providing compatibility with diverse piping systems. The gauge also features an overpressure capacity of 1.5×FS, ensuring safety and longevity during pressure fluctuations.

WYYW YTN100 diaphragm pressure gauges are widely used in chemical processing plants, pharmaceutical manufacturing, food and beverage industries, and water treatment facilities. Their robust design makes them ideal for measuring pressure in autoclave systems, where stable and accurate pressure readings are critical to ensuring sterilization quality and safety. As an autoclave pressure gauge, the YTN100 model delivers reliable performance even in high-temperature, high-pressure conditions.

Beyond autoclaves, diaphragm pressure gauge types like the YTN100 are essential in applications involving aggressive fluids, steam, and slurries. They find frequent use in HVAC systems, oil and gas pipelines, and hydraulic systems where contamination of the pressure-sensing element must be avoided. The customizable flange size and multiple thread standards make the YTN100 adaptable to complex piping layouts and specialized equipment.

With a minimum order quantity ranging from 1 to 200 pieces, WYYW offers flexibility to meet both small-scale and large-scale procurement needs. Whether for replacing existing gauges or integrating into new systems, the YTN100 diaphragm seal type pressure gauge provides an efficient and cost-effective solution. Its reliable performance, combined with the rigorous quality standards of WYYW, guarantees long-term operational stability in critical industrial applications.

Customization:

WYYW offers comprehensive product customization services for the YTN100 diaphragm pressure gauge, expertly designed and manufactured in Qingdao, China. Our membrane pressure gauge, also known as a diaphragm type pressure gauge, is built to meet diverse industrial needs with high precision and reliability.

We provide flexible OEM, ODM, and OBM customization options to tailor the pressure gauge to your specific requirements, including adjustments in connection size, mounting type, and branding. The YTN100 model features a bottom mount design and a standard 1/2 inch NPT connection size to ensure easy integration into your systems.

All our diaphragm type pressure gauges come certified with CE and ISO9001, guaranteeing quality and compliance with international standards. With a minimum order quantity ranging from 1 to 200 pieces, we cater to both small and large-scale orders efficiently.

Additionally, every membrane pressure gauge we produce is backed by a 1-year warranty, ensuring durability and performance. Choose WYYW for reliable, customizable diaphragm pressure gauges that meet your unique application needs.

Support and Services:

Our Diaphragm Pressure Gauge is designed to provide accurate and reliable pressure measurements in a variety of industrial applications. For technical support, please ensure that the gauge is installed according to the user manual and operated within the specified pressure range to avoid damage.

If you experience any issues with the diaphragm pressure gauge, such as erratic readings, leaks, or physical damage, first verify that the installation environment meets the product specifications including temperature, pressure limits, and compatibility with the measured media.

Regular maintenance is recommended to ensure optimal performance. This includes periodic inspection of the diaphragm for signs of wear or corrosion and calibration checks to maintain measurement accuracy. Calibration should be performed using standard procedures and certified equipment.

For repair or replacement services, please contact authorized service centers. Using non-authorized repair services may void the warranty and affect product performance.

We also offer training and consultation services to help your team understand the proper use and maintenance of the diaphragm pressure gauge, ensuring long-term reliability and safety in your operations.

For detailed service manuals, troubleshooting guides, and FAQs, please refer to the official product documentation provided with your gauge or available on our website.
