Home /Products/High Temperature Pressure Gauge/High Temperature Pressure Gauge Thermomanometer with 2.5"-4" Dial Size, 0-16 Bar Pressure Range, and 1/4"-1/2" Connection Size

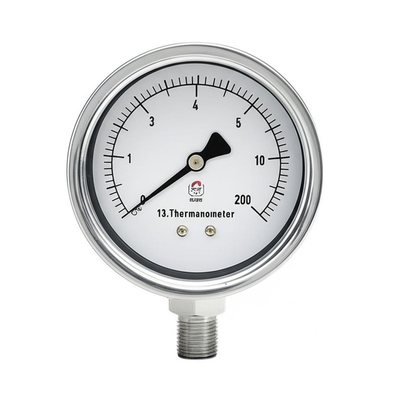

High Temperature Pressure Gauge Thermomanometer with 2.5"-4" Dial Size, 0-16 Bar Pressure Range, and 1/4"-1/2" Connection Size

1
MOQ
Depends on total quantity
Price
High Temperature Pressure Gauge Thermomanometer with 2.5"-4" Dial Size, 0-16 Bar Pressure Range, and 1/4"-1/2" Connection Size
Features Gallery Product Description Request A Quote
Features
Specifications
MATERIAL: Black Steel Or Stainless Steel
Highlight:

2.5"-4" Dial Size Thermomanometer

,

0-16 Bar Pressure Range High Temperature Pressure Gauge

,

1/4"-1/2" Connection Size Pressure Gauge
Basic Infomation
Place of Origin: Qingdao,China
Brand Name: WYYW
Certification: CE & ISO9001
Model Number: Y-100
Payment & Shipping Terms
Packaging Details: Inner plastic bag,export carton out side.Pallet optional.
Delivery Time: 5-30days
Payment Terms: TT,LC.Alipay.Western Union
Supply Ability: 30-50k per month
Product Description

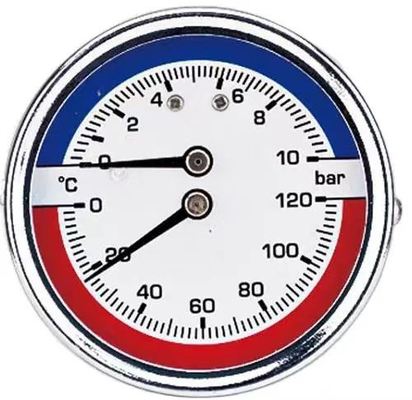

13. Thermomanometer
Product Description

The Thermomanometer is a precision instrument designed for measuring both pressure and temperature in industrial applications.

Technical Specifications
  • Dial Size: 2.5" (63mm), 3" (80mm), 4" (100mm)
  • Material:
    • Case: Black steel, Plastic (Chromed plated)
    • Internal and Thread: Brass
    • Window: Glass, Plastic
  • Pressure Range: 0-2.5/4/6/10/16 bar, Mpa
  • Temperature Range: 0-120°C, 0-160°C
  • Connection Size: 1/4", 3/8", 1/2" Metric Thread, NPT, BSP(G,PF), BSPT(ZG,PT)
  • Mounting: Bottom, Back
  • Accuracy: 2.5%, 2%, 1.6%
  • Pressure Limitation:
    • Steady: 3/4X full scale value
    • Fluctuation: 2/3X full scale value
    • Short time: full scale value
High Temperature Pressure Gauge Thermomanometer with 2.5"-4" Dial Size, 0-16 Bar Pressure Range, and 1/4"-1/2" Connection Size 0
