250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6%

500 pieces
MOQ
$7.50/pieces 1000-1999 pieces
Price
250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6%
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1Y
Material: Black Steel
Original Place: Made In China
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Mount: Bottom
Quality: 1 Year
Customized Support: OEM, ODM, OBM
Port: QingDao,ShangHai
Highlight:

Black Steel Economy Pressure Gauge

,

250mm Economy Pressure Gauge

,

0.6MPa Economy Pressure Gauge

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Certification: CE ISO
Model Number: Y-150
Payment & Shipping Terms
Packaging Details: calibration of pressure gauge<br>Each unit is packed in one paper box, 30 box in one carton . As customer requested.
Supply Ability: 100000 Piece/Pieces per Month calibration of pressure gauge
Product Description

Economy Pressure Gauge 250mm Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6%

Product Description

250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6% 0

Name

General pressure gauge

Dials Size

250mm (or dail size made as demand)

Case

Black steel case

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

None

Movement

Brass

Socket

Brass

Bourdon tube

Bronze

Dial plate and pointer

Aluminum

Window

Glass

Connection sizes

1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom (Or made as panle, bottom)

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

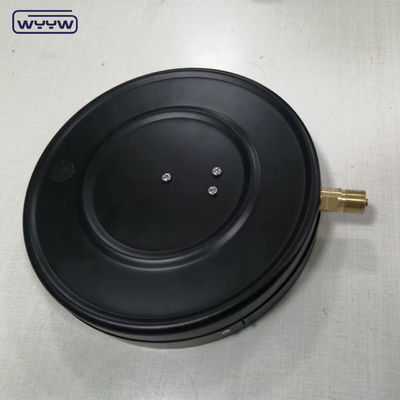

250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6% 1

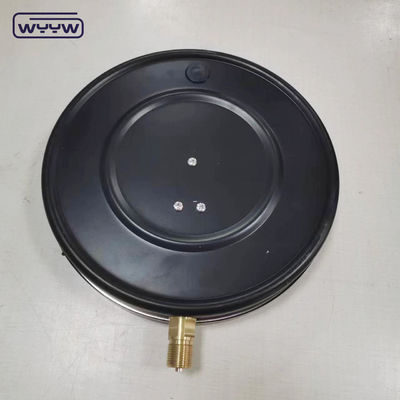

250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6% 2

250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6% 3

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6% 4

Company Information

Qingdao DaZeFengYang is a dedicated manufacturer of pressure gauges and hardware tools, proudly affiliated with the China National Hardware Association.

With the support of our skilled technical team, we ensure that our pressure gauges meet both GB/T (Chinese Standards) and international standards. Our commitment to quality is reflected in our ISO9001 and CE certifications for all our products, which include pressure gauges, gas regulators, cutting torches, and welding torches.

Over the years, we have developed an extensive range of both specialized and standard products, all offered at competitive prices and prompt delivery. Our efficient sales and after-sales service make us a preferred choice for customers worldwide, particularly for distributors and importers in Europe, Southeast Asia, the Middle East, America, and Australia.

We warmly invite you to reach out via phone or email, or to visit our company. We look forward to building a successful future together!

250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6% 5

250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6% 6

250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6% 7

Packaging & Shipping

250mm Economy Pressure Gauge Kgf/Cm2 0.6MPa Bottom Black Steel Accuracy 1.6% 8

Advantages
  • Advanced Equipment and Professional Technology: We are dedicated to delivering high-quality gauges using state-of-the-art equipment and professional technology to customers worldwide.

  • Outstanding After-Sales Service: Our company consistently provides exceptional after-sales support, aiming to build long-term trade relationships.

  • Thorough Inspection and Superior Quality: All our pressure gauges undergo 100% inspection, and we are proud to have ISO 9001 and UL certifications.

  • Timely Delivery: We ensure prompt delivery to meet our customers' needs and expectations.

  • Convenient Purchasing and Cost Efficiency: As a skilled manufacturer, we make it easy for you to purchase our high-quality products at competitive prices.

  • OEM Capabilities: Over the years, we have successfully fulfilled numerous OEM orders for well-known companies in the USA and
