1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection

200 pieces
MOQ
$3.50/pieces 200-999 pieces
Price
1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM, ODM, OBM
Material: Stainless Steel Case
Dial Size: 40mm, Or Made As Requirements
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Quality: 1 Year
Accuracy: 4%
Port: QingDao,ShangHai,TianJin,NingBo
Original Place: Made In China
Highlight:

100kpa Pressure Gauge Manometer

,

1.5" Pressure Gauge Manometer

,

40mm Pressure Gauge Manometer

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Certification: CE ISO
Model Number: YTN-40Z
Payment & Shipping Terms
Packaging Details: hydraulic oil pressure gauges<br>Each unit is packed in one paper box, 30 box in one carton . As customer requested.
Supply Ability: 100000 Piece/Pieces per Month hydraulic oil pressure gauges
Product Description

Pressure Gauge Manometer 1.5" 40mm Glycerine Filled 100kpa Bottom Connection

Product Description

1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection 0

Name

Oil filled pressure gauge

Dials Size

40/50/63/100/150mm (or dail size made as demand)

Case

Stainless steel case

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

None

Movement

Brass

Socket

Brass

Bourdon tube

Bronze

Dial plate and pointer

Aluminum

Window

Acrylic / Plastic

Connection sizes

1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom/Back and panel

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

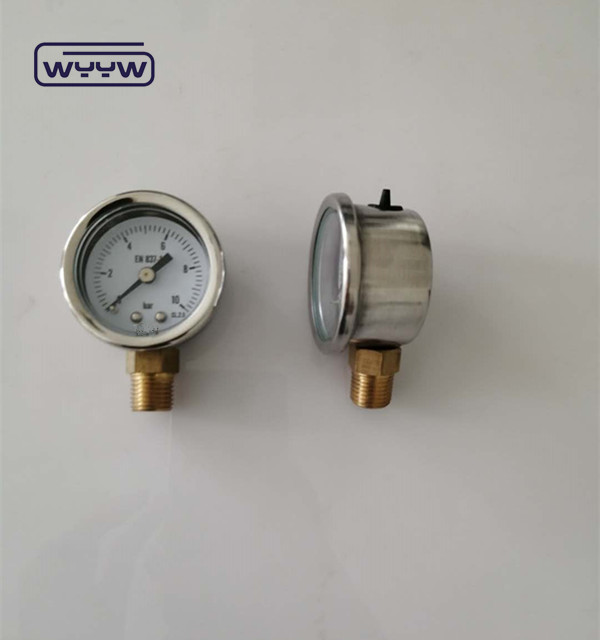

1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection 1

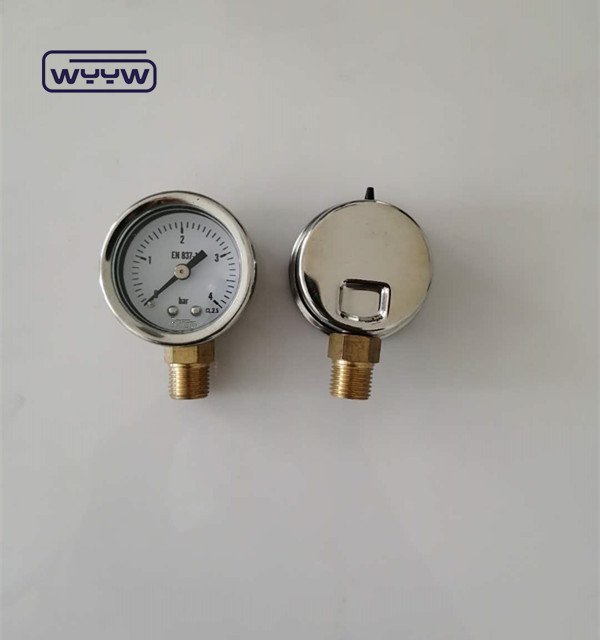

1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection 2

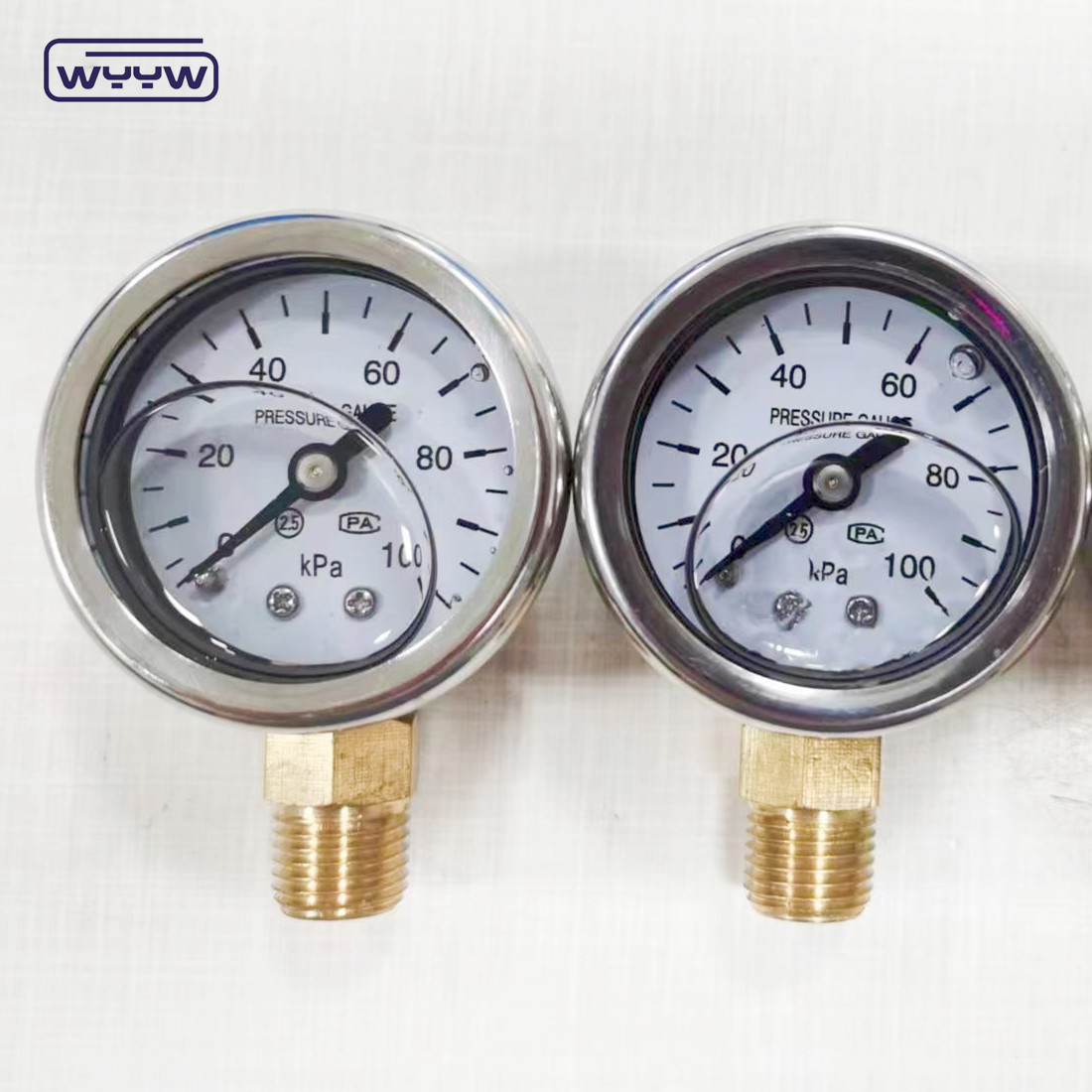

1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection 3

Product Application

Applications in Challenging Outdoor Environments

Utilized in settings with significant vibration and pulsation, such as:

  • Hydraulic machinery
  • Pressure washing systems
  • Oilfield equipment
  • Pumps and compressors
  • Process systems

1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection 4

Company Information

Qingdao DaZeFengYang is a professional manufacturer of pressure gauges and hardware tools, proudly affiliated with the China National Hardware Association.

With a team of highly skilled technical experts, we are committed to ensuring our pressure gauges meet both GB/T (Chinese Standards) and international standards. Our dedication to quality has earned us ISO 9001 and CE certifications for our entire product range, which includes pressure gauges, gas regulators, cutting torches, and welding torches.

Over the years, we have developed an impressive selection of both specialized and standard products, all offered at competitive prices with prompt delivery. Our efficient sales and after-sales services make us an attractive choice for customers worldwide, particularly distributors and importers from Europe, Southeast Asia, the Middle East, America, and Australia.

We welcome all friends to contact us via phone or email, and we invite you to visit our company. We sincerely look forward to building a prosperous future together with you.

1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection 5

1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection 6

1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection 7

Packaging & Shipping

1.5" 40mm Glycerine Filled Pressure Gauge Manometer 100kpa Bottom Connection 8

Advantages
  • Advanced Equipment and Professional Technology: We are dedicated to providing high-quality gauges using cutting-edge equipment and professional technology for customers worldwide.

  • Exceptional After-Sales Service: Our company prioritizes outstanding after-sales support, aiming for long-term trading partnerships.

  • Thorough Inspection and Superior Quality: All our pressure gauges undergo 100% inspection, and we are proud to be ISO 9001 and UL certified.

  • Timely Delivery: We ensure prompt delivery to consistently meet our customers' needs.

  • Convenient Purchasing and Cost Efficiency: As a skilled manufacturer, we offer a seamless purchasing experience, delivering high-quality products at competitive prices.

  • OEM Orders: Over the years, we have successfully fulfilled numerous OEM orders for well-known companies in the USA and European markets.
