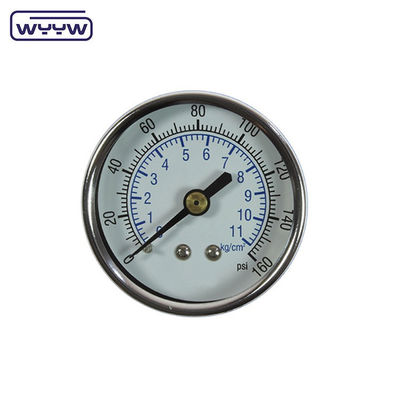

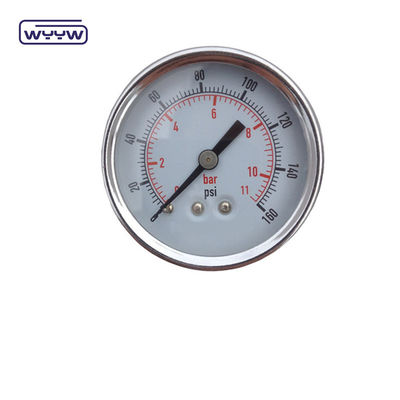

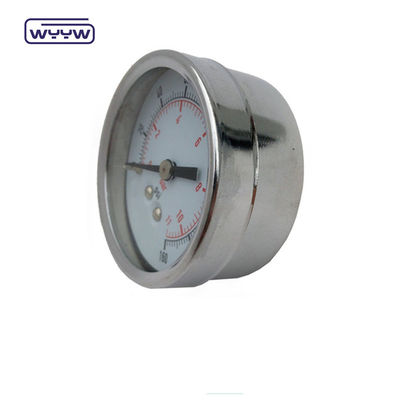

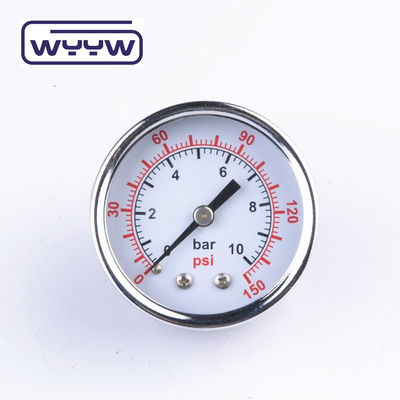

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge

100 pieces
MOQ
$9.00/pieces 100-499 pieces
Price
Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM
Product Name: Axial Oil Filled Pressure Gauge
Material: All Stainless Steel

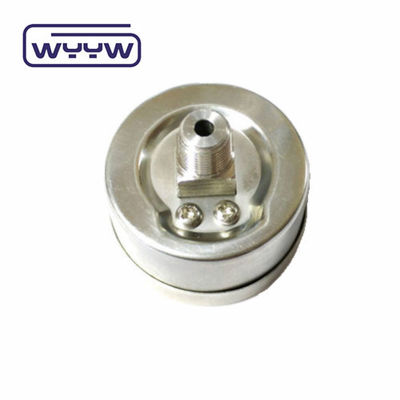

Connection: Back
Size: 60mm
Port: Qingdao
Highlight:

Back Mount Pressure Gauge 160 Psi

,

60mm SS Pressure Gauge

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Model Number: YZ-60H
Payment & Shipping Terms
Packaging Details: s.s. pressure gauge<br>Each unit in one paper box,30 boxes in one carton.As customer requested.
Supply Ability: 10000 Piece/Pieces per Month
Product Description

Dry Use No Oil Back Mount 160 Psi Air 60mm SS Pressure Gauge

s.s. pressure gauge

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge 0

Product Description

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge 1

Name

Stainless Steel pressure gauge

Dials Size

1.5"(40mm), 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)

Case

Black steel, ABS or chrome plated

Pressure range

0 -250Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

Non, black steel or chrome plated

Movement

Brass

Socket

Brass

Bourdon tube

Phosphor Bronze

Dial plate and pointer

Aluminum

Window

Glass or Plastic

Connection sizes

1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom,back and panel

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full scale value
Short time:full scale value

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge 2

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge 3

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge 5

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.



Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.



Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge 6

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge 7

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge 8

Packaging & Shipping

Dry Use No Oil Back Mount Pressure Gauge 160 Psi Air 60mm SS Pressure Gauge 9

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
