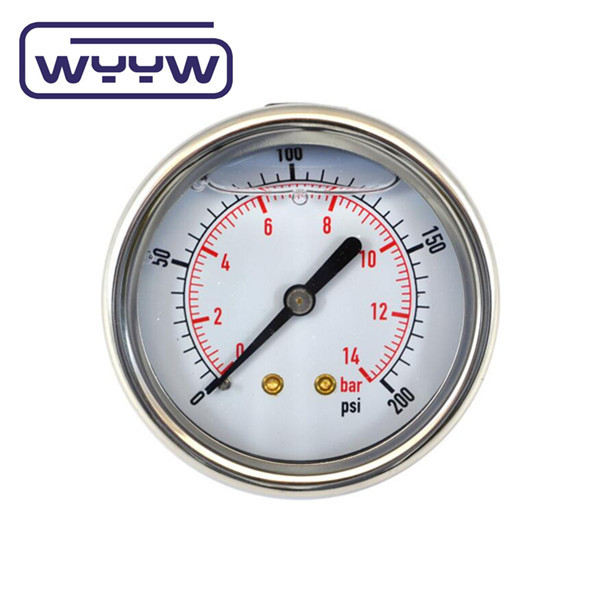

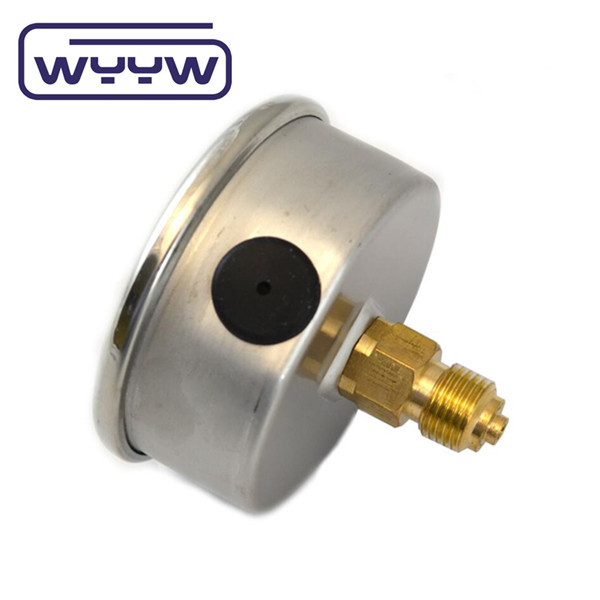

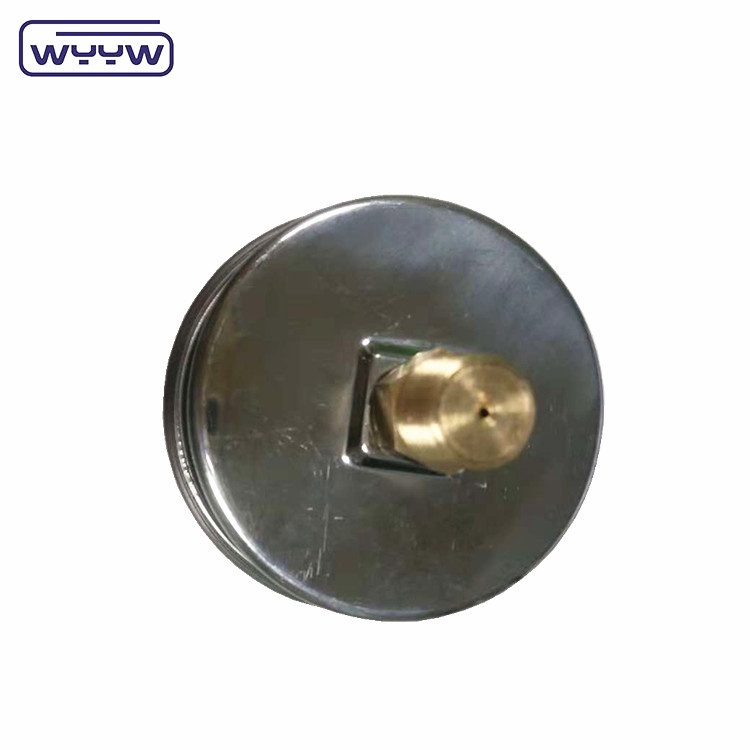

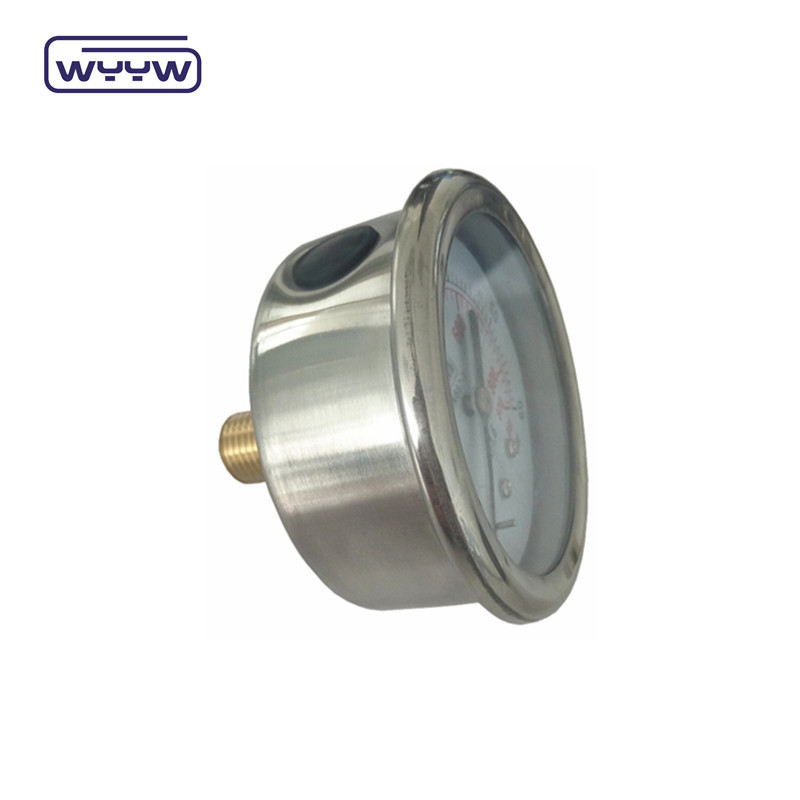

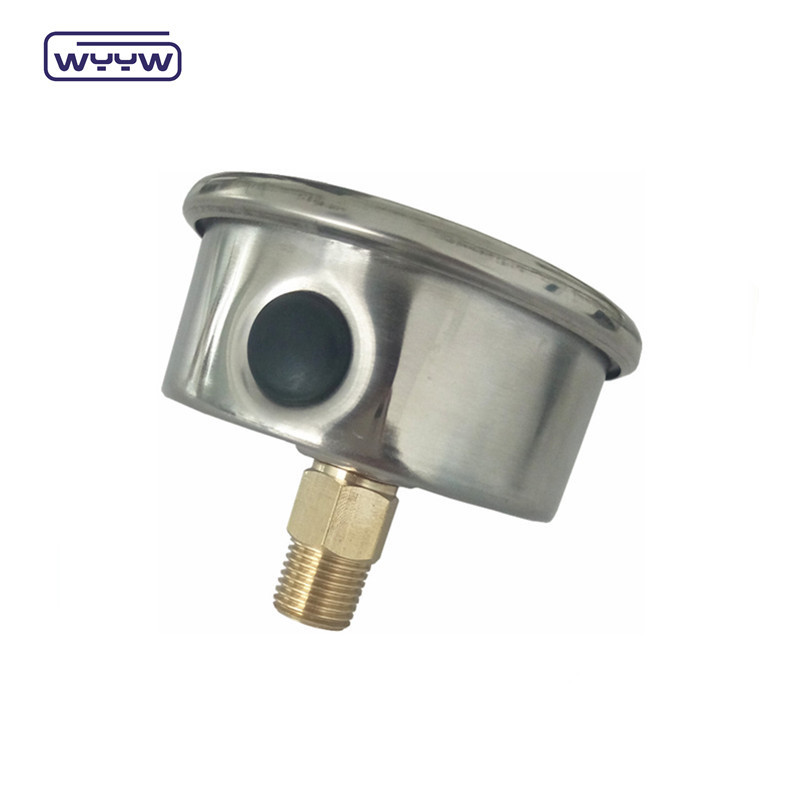

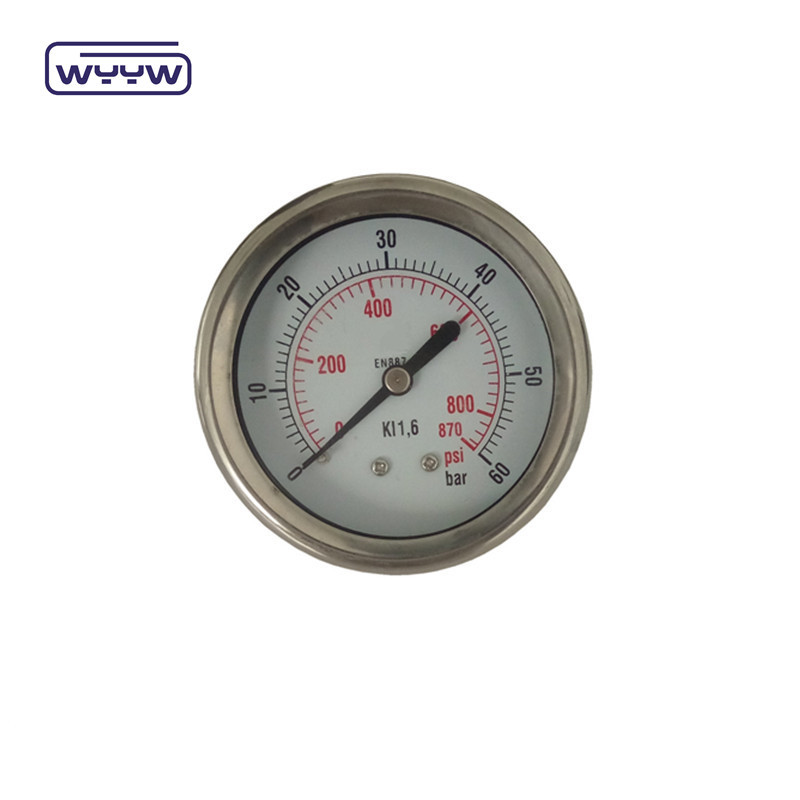

Name: Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount
Brand: Qingdao Dazefengyang Meter& Welding Instruments Co., Ltd.
SKU: YTN-60
Price: 101.50 USD
Availability: InStock

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount

200 pieces

MOQ

$4.50/pieces 200-999 pieces

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 1 Year, 1 Year

Customized Support: OEM, ODM

Dial Size: 60mm/2.5 Inch

Material: Stainless Steel Case With Brass Connection

Service: Complete After-sales Service

Quality: First To Guarantee

Connection: Back

Type: EN837-1

Oil: Glycerine

Port: QingDao,ShangHai

Highlight:

Glycerine Compound Pressure Gauge

63mm Compound Pressure Gauge

ODM Compound Gauge And Pressure Gauge

Basic Infomation

Place of Origin: Shandong, China

Brand Name: WYYW

Model Number: YTN-60

Payment & Shipping Terms

Packaging Details: back mount pressure gauge<br>Manometer Use In Air Compressor:<br>Each unit is packe in one paper box, 30 box in one carton . As customer requested.

Supply Ability: 100000 Piece/Pieces per Month back mount pressure gauge

Gallery

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount

Product Description

back mount pressure gauge

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 1

Name	Oil filled Vacuum Pressure Gauge Back mount
Dials Size	2.5 inch (60mm)
Case	ss
Pressure range	0 -2.5/ 4/ 6/ 10/ 16/ 25/ 40/ 60kpa,other scale units bar, psi, kg/cm2 etc.optional
Ring	Non, black steel or chrome plated
Movement	brass
Socket	brass
Bourdon tube	brass
Dial plate and pointer	Aluminum
Window	Glass or Plastic
Connection sizes	1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
Connection threads	Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting	Back/ Rear
Accuracy	1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5% 4(100mm) and 6 (150mm)-1.6%
Pressure limitation	Steady: 3/4x full scale value Fluctuation:2/3x full sacle value Short time:full scale value

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 2

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 3

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 4

Outdoor and severe ambient and process conditions
Use where harmful vibration and pulsation are present
Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 5

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 6

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 7

Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;
Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;
Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;
Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;
OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 8

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 9

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 10

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount 13
