23.5mm Small Tiny Pressure Gauge Manometer OEM For Airgun

1000 units
MOQ
$3.50/units 1000-1999 units
Price
23.5mm Small Tiny Pressure Gauge Manometer OEM For Airgun
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Pressure Range: 0~200psi
Mounting: Bottom Or Back
Type: Mini Pressure Gauge
Qulaity: 100% Inspection
Size: 23.5mm
Original Place: 2016 Made In China
Your Idea: Acceptable
Factory: Yes,we Are Factory
Main Market: All Over The World
Service: 24 Hours
Port: Qingdao
Highlight:

23.5mm Tiny Pressure Gauge

,

Small Tiny Pressure Gauge Manometer

,

Airgun Pressure Gauge Manometer

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Certification: CE,ISO
Model Number: Y-series
Payment & Shipping Terms
Packaging Details: Each one will be package in a paper box, and 1000pcs will be in one caton , or as customized .
Supply Ability: 1000000 Unit/Units per Month small pressure gauge
Product Description

23.5mm small tiny pressure gauge for airgun



Product Description

Reliable, small diameter, low profile gauge
• 20mm to 40mm sizes
• 1/8" NPT socket
• Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement
• Safety over-pressure port on the lens



Dial 1” (25mm), 1.25” (32mm) or 1.5” (40mm) white aluminum with black markings

Case

chrome plated brass

Lens

Plexiglass or Polycarbonate

Spiral Tube 60 to 2000 PSI:phosphor bronze

3000 PSI: Beryllium copper or Stainless steel
4000 PSI and above: 316L SS

Connection 1/8” NPT standard, back
Pointer 3000 PSI and below: Brass

4000 PSI and above: 304 SS

Over-Pressure Limit 10% of full scale value
Working Pressure 10% of full scale value
Ambient -40°F to 150°F (-40°C to 65°C)
Accuracy ±3-2-3% ANSI/ASME Grade B
Enclosure Rating IP65

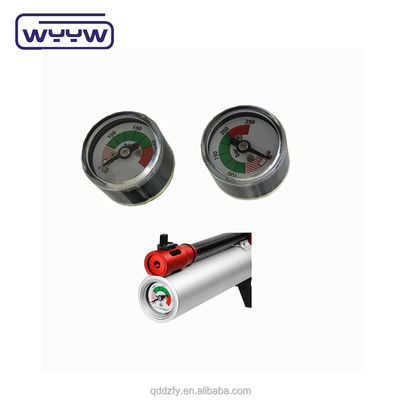

23.5mm Small Tiny Pressure Gauge Manometer OEM For Airgun 0

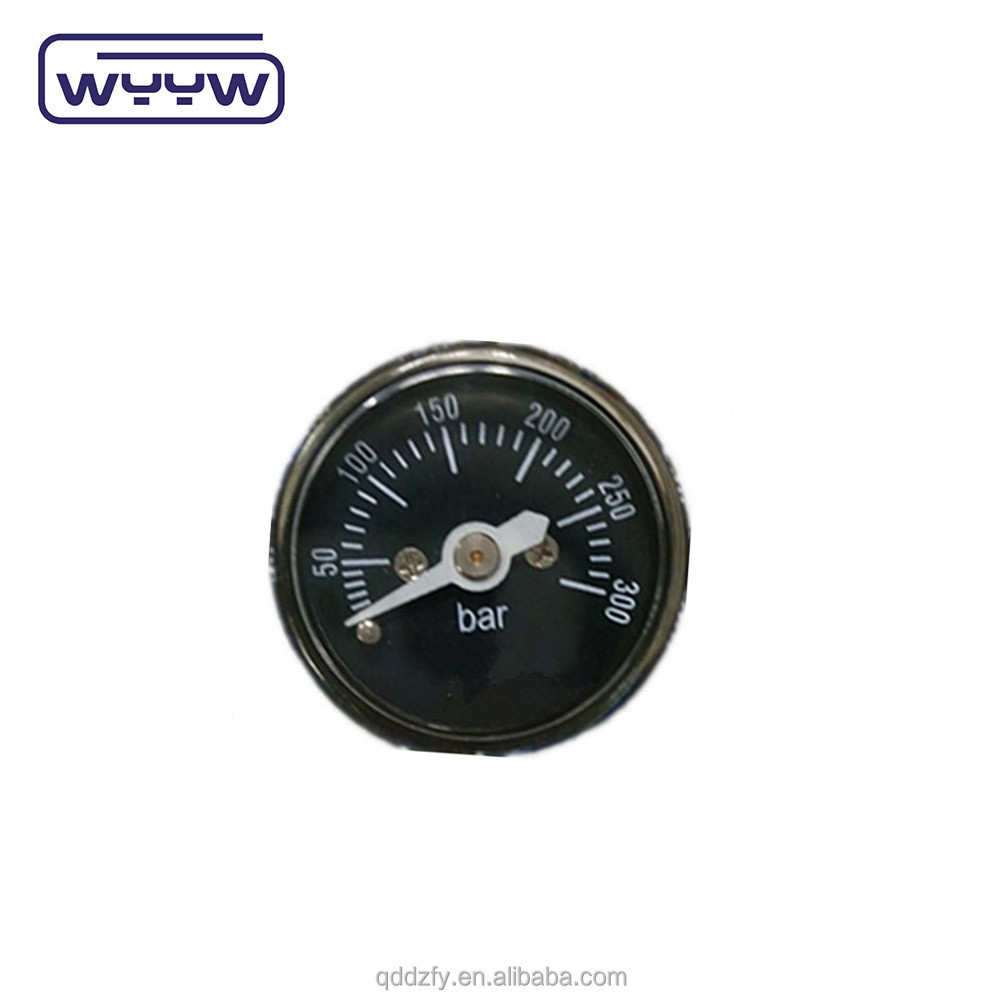

 23.5mm Small Tiny Pressure Gauge Manometer OEM For Airgun 1

Production Process

Production Process:

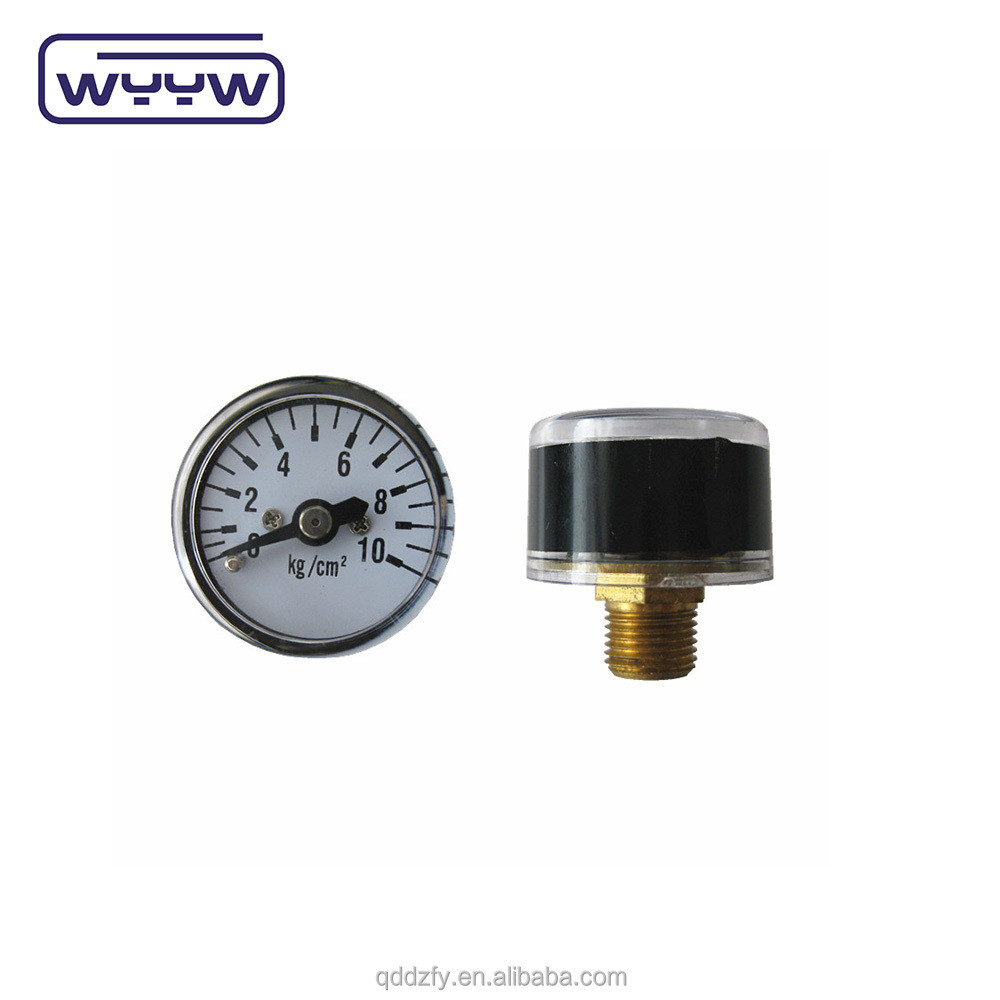

 23.5mm Small Tiny Pressure Gauge Manometer OEM For Airgun 2

Package:

1pc/small box packed wih bubble bog or foam box inside,then 20-100pcs/carton.


Why Choose Us?



1) Advance Equipment and Professional Technology we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.



2) Best After-sales Service : Our company provide best after-sale service all the time , for our goal is a long trade cooperation term.



3) Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated.



4) Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs.



5) Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price.



6) Best Reputation : Our factory have ten years experiences and have already gaining the best reputation and response from the customers from all over the world.



7) OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .

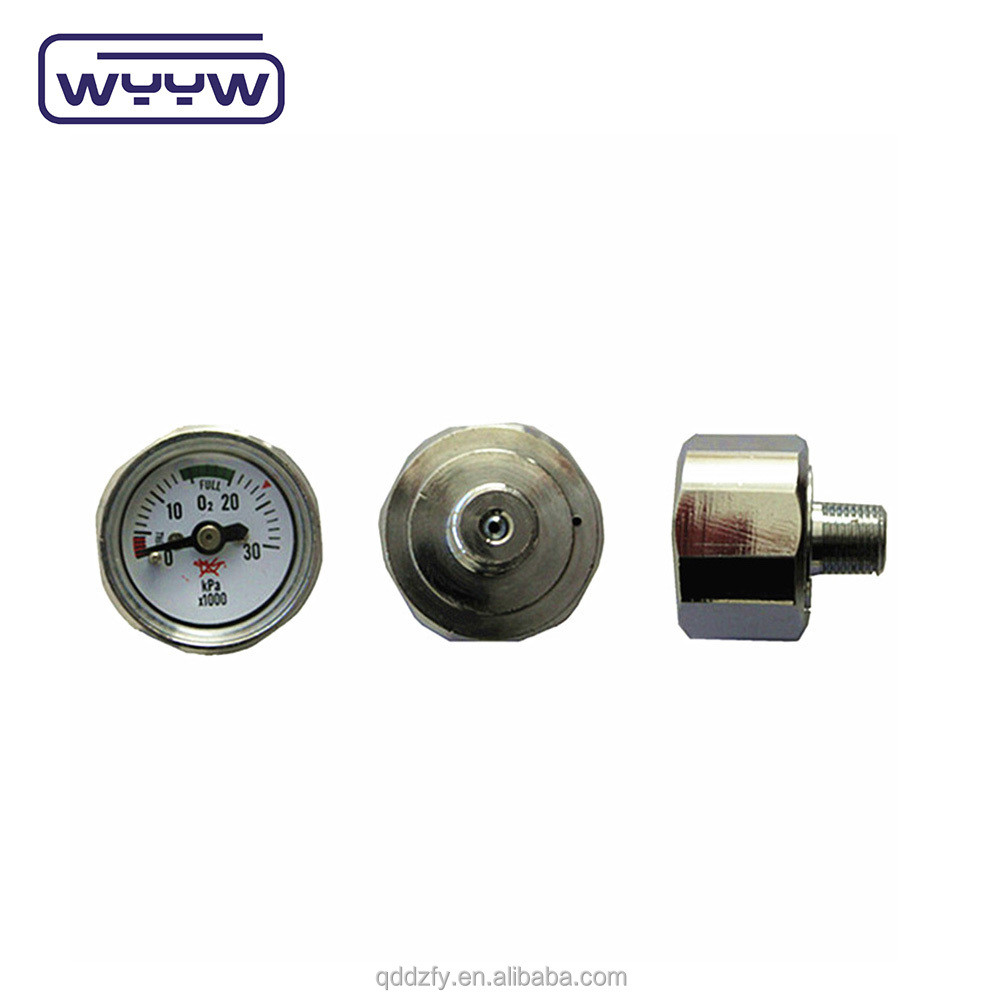

 23.5mm Small Tiny Pressure Gauge Manometer OEM For Airgun 3

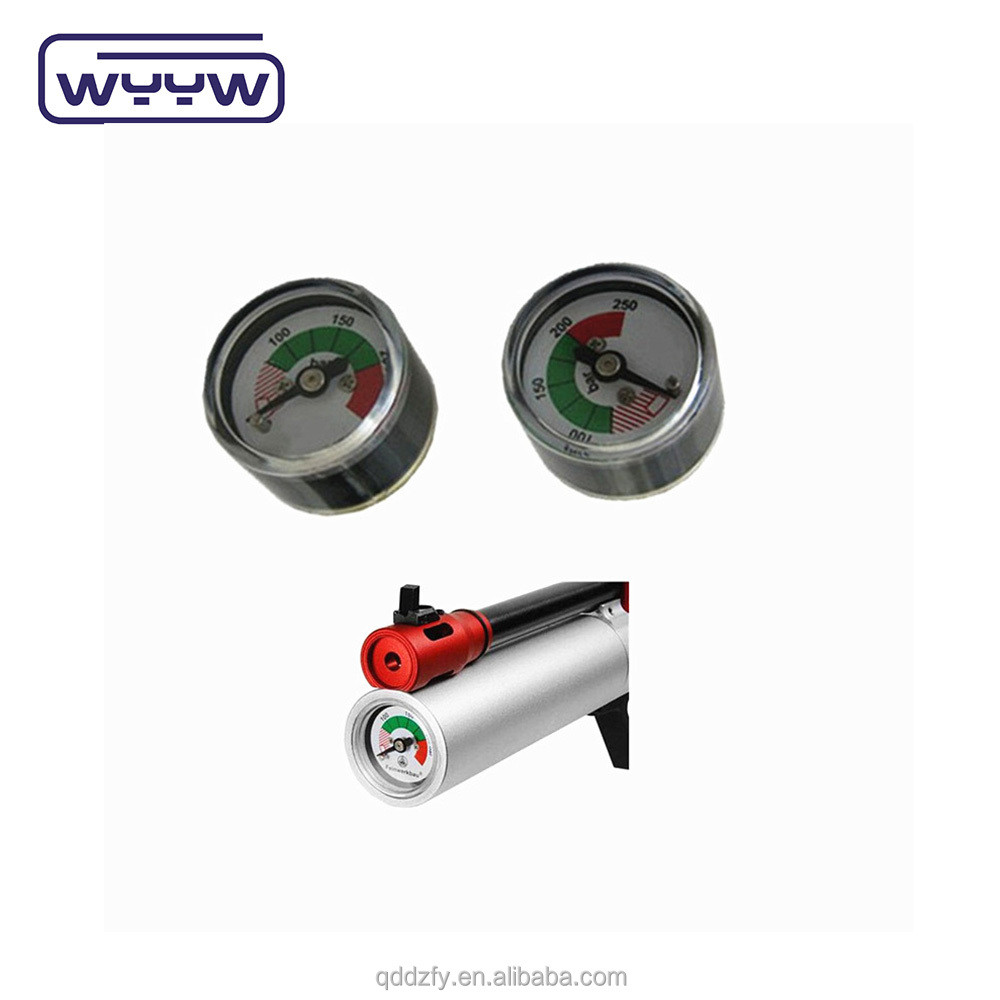

23.5mm Small Tiny Pressure Gauge Manometer OEM For Airgun 4
