350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting

1000 pieces
MOQ
$3.50/pieces 1000-1999 pieces
Price
350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1Y
Customized Support: OEM, ODM, OBM
Case Material: Brass Case
Nominal Size: 23mm
Precision: 4%
Pressure Range: As Required
Thread Type: Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Thread Size: NPT, BSPT...
Mounting: Back
Port: Qingdao, ShangHai, Ningbo, Guangzhou
Highlight:

350 Bar Miniature Pressure Gauge

,

Miniature Pressure Gauge 23mm

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Model Number: Y-23
Payment & Shipping Terms
Packaging Details: Each one will be package in a paper box, and 1000pcs will be in one caton , or as customized .
Supply Ability: 100000 Piece/Pieces per Month miniature pressure gauge
Product Description

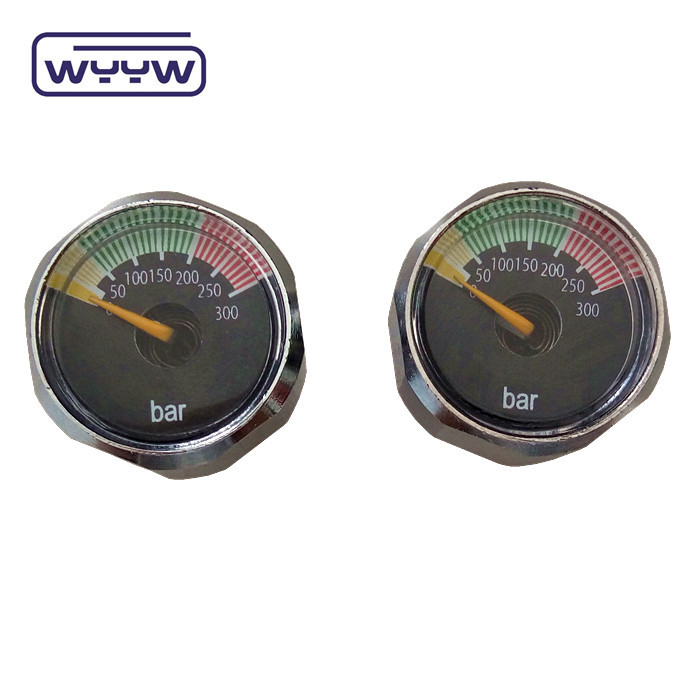

miniature pressure gauge350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting 0

Product Description

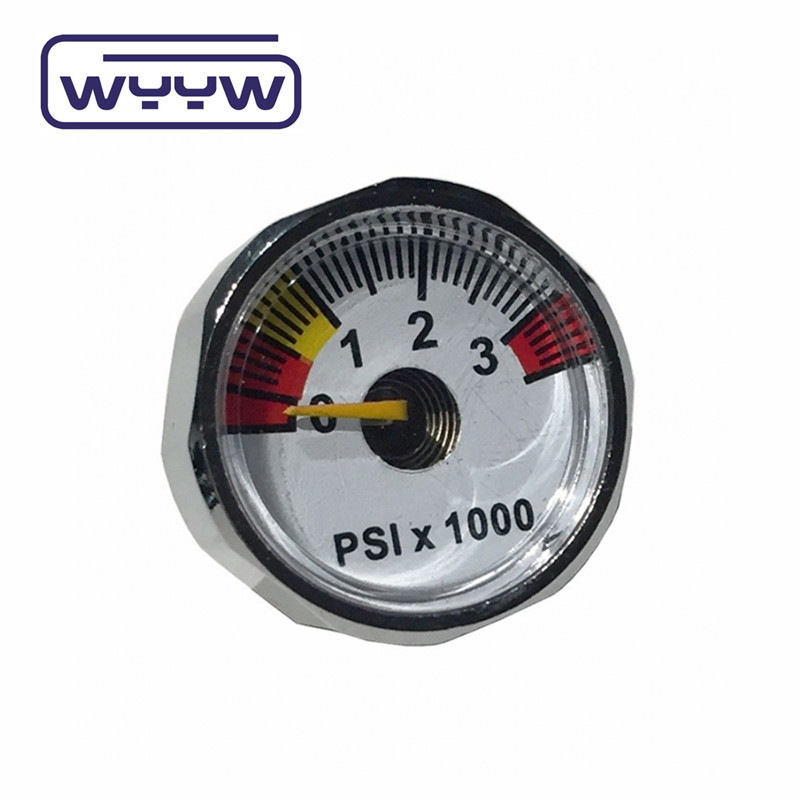

350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting 1

Name

1 inch pressure gauge

Dials Size

1.5"(40mm), 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)

Case

Black steel, ABS or chrome plated

Pressure range

0 -250Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

Non, black steel or chrome plated

Movement

Brass

Socket

Brass

Bourdon tube

Phosphor Bronze

Dial plate and pointer

Aluminum

Window

Glass or Plastic

Connection sizes

1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom,back and panel

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full scale value
Short time:full scale value

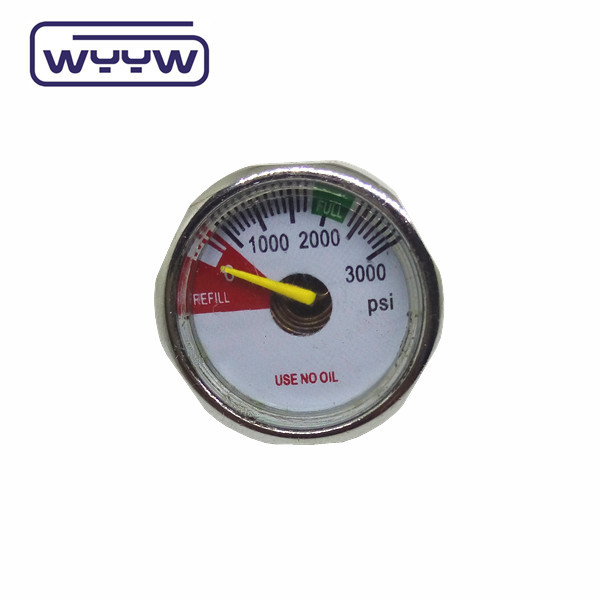

350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting 2

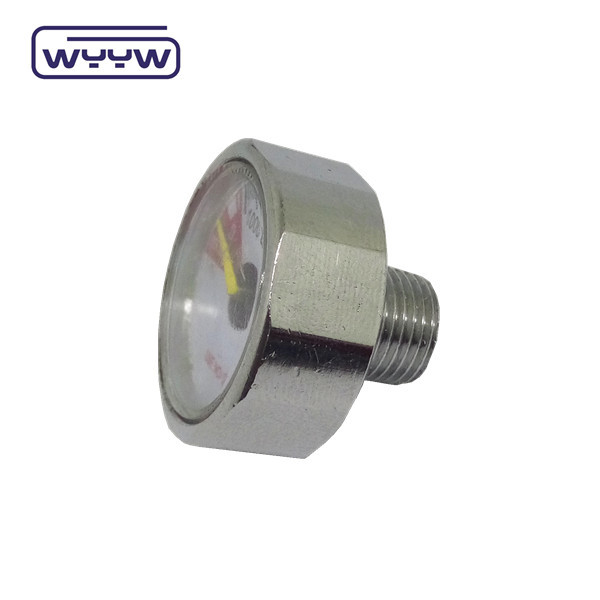

350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting 3

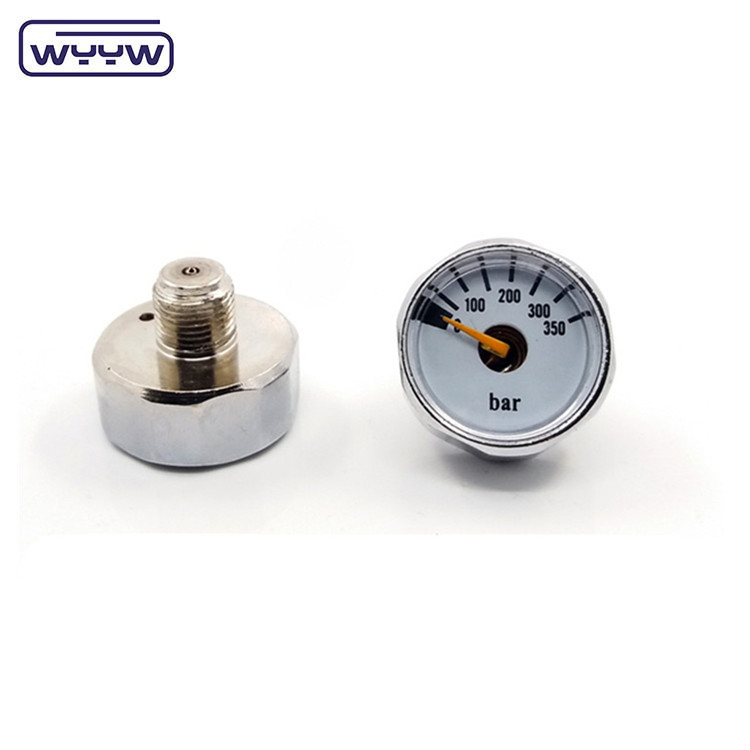

350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

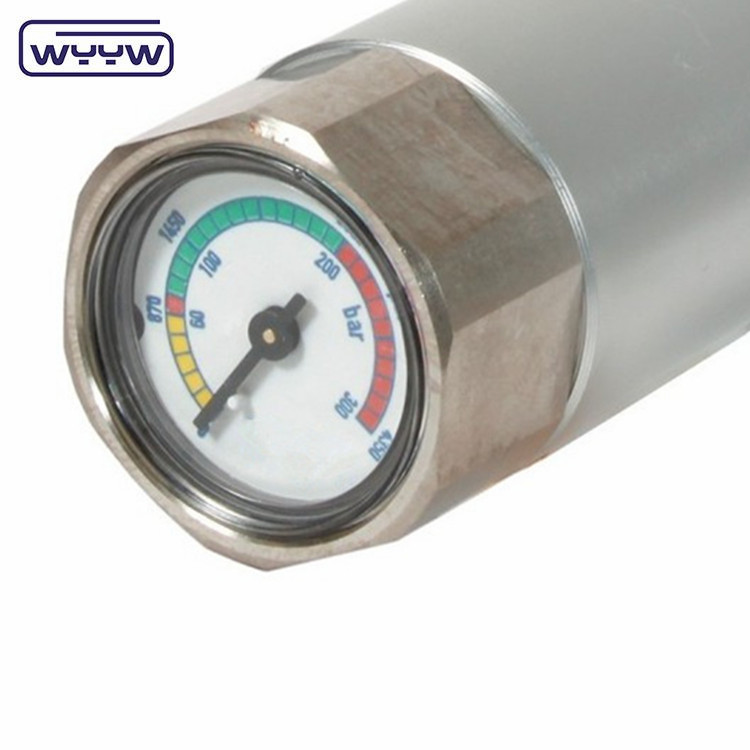

350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting 5

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.



Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.



Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting 6350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting 7350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting 8

Packaging & Shipping

350 Bar Miniature Pressure Gauge 23mm Brass Case Back Mounting 9

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
