Home /Products/Diaphragm Pressure Gauge/All Stainless Steel Indicator Pressure Gauge With Flange CE Approved

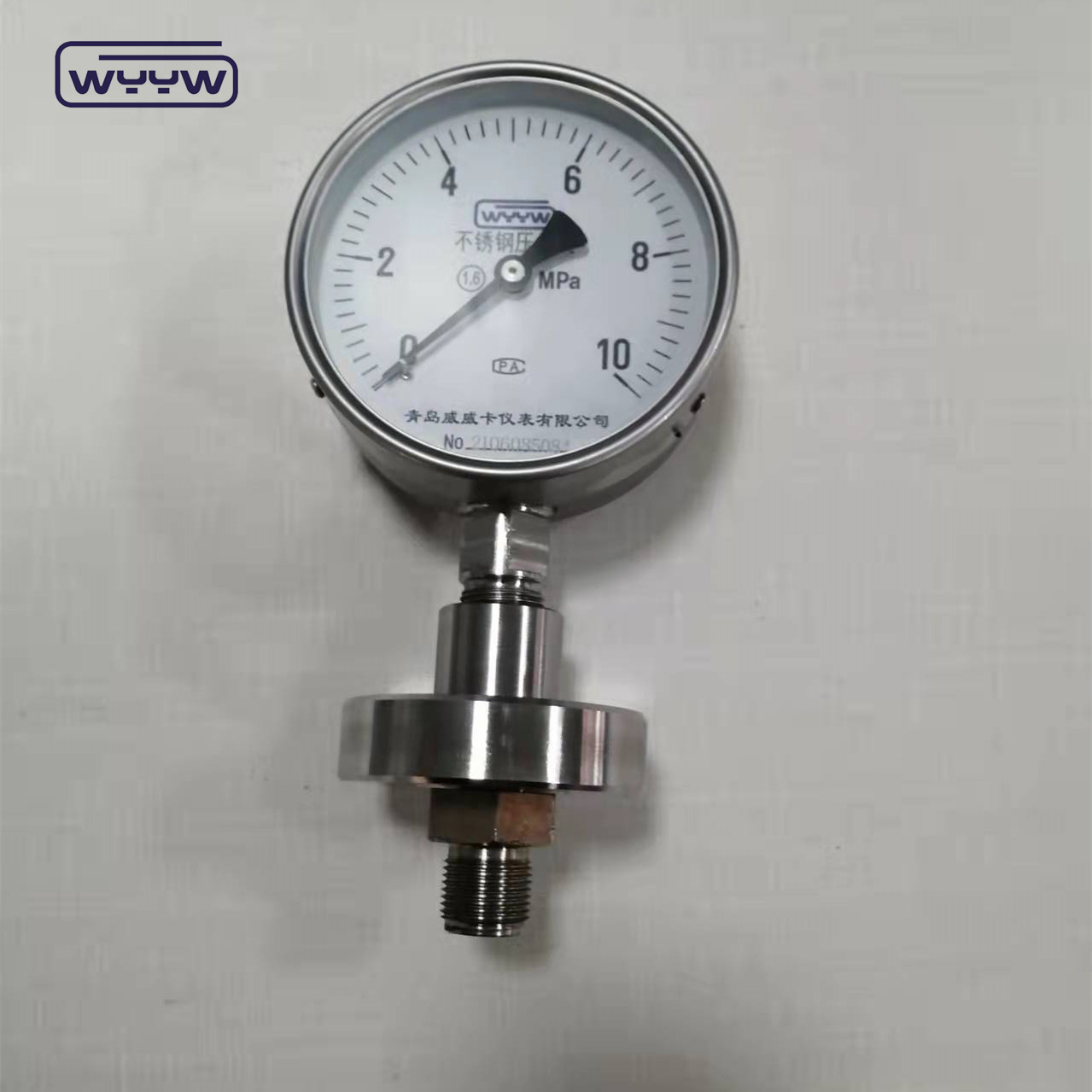

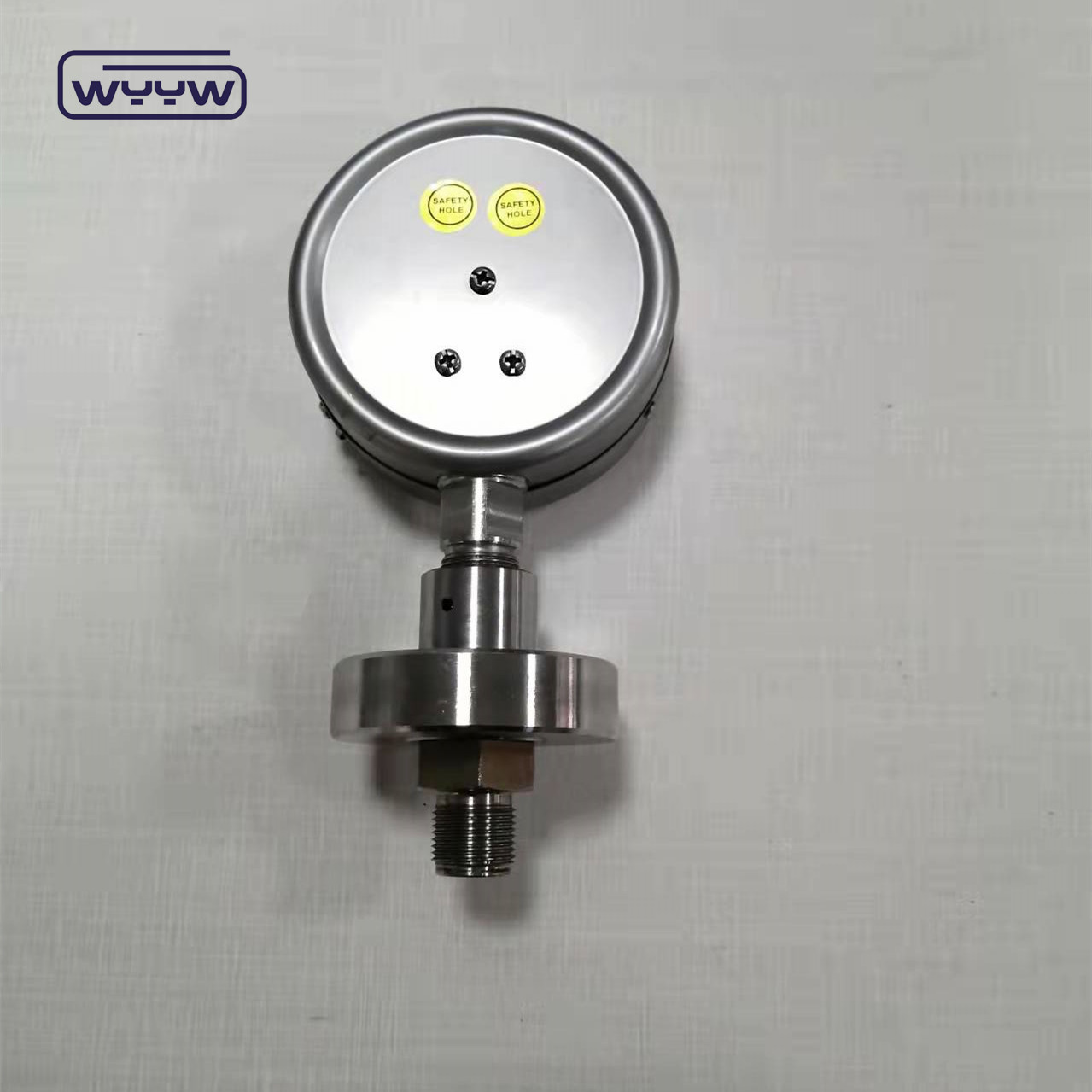

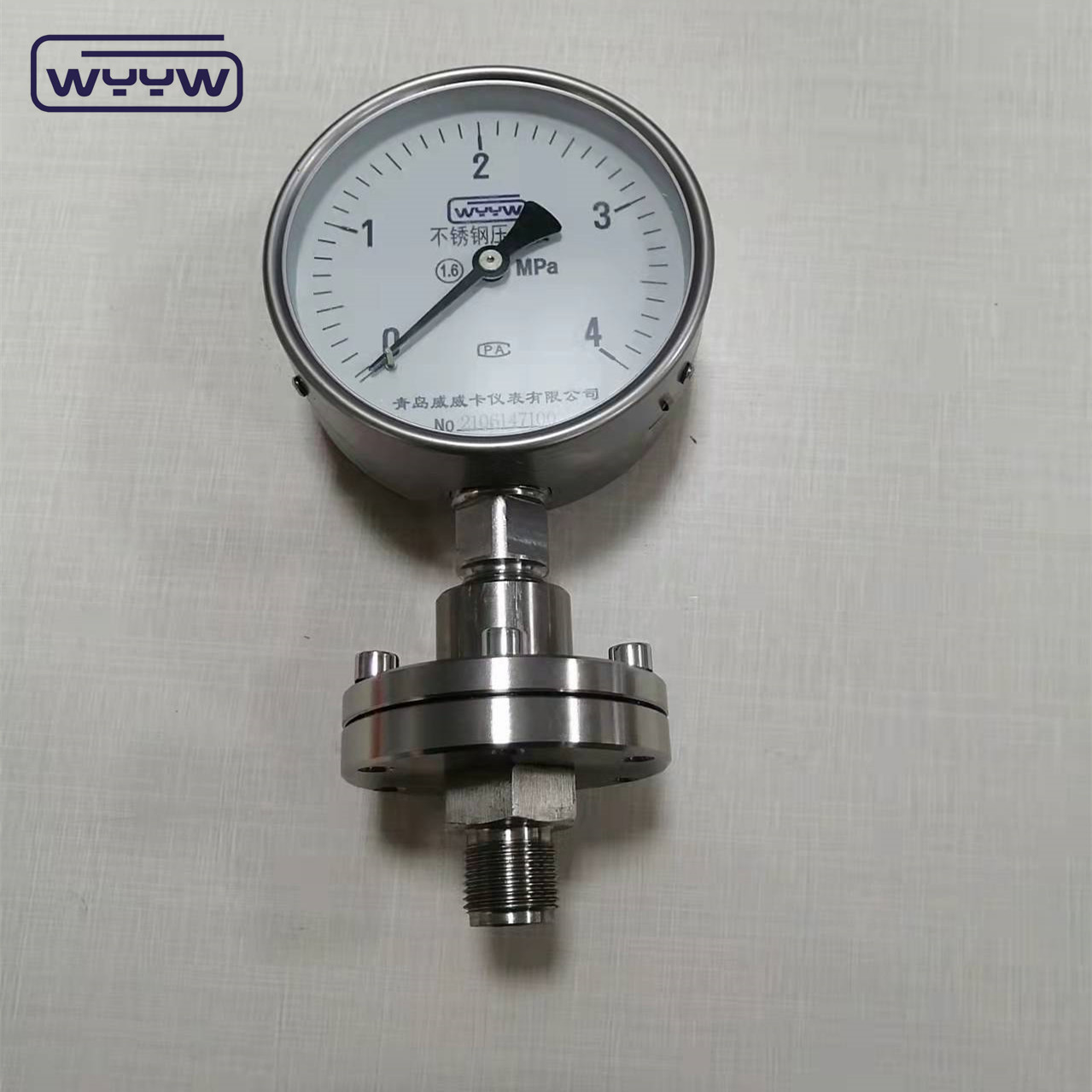

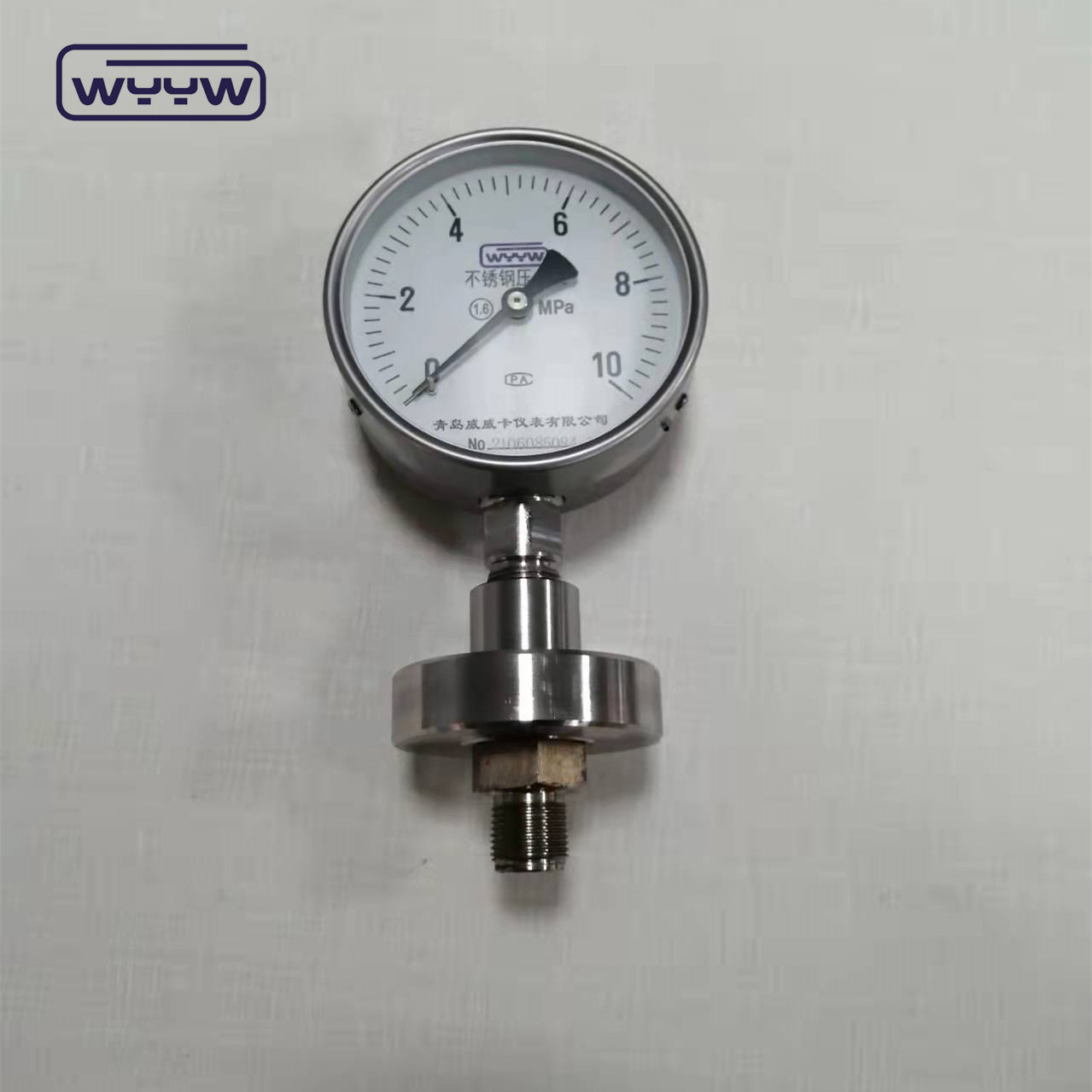

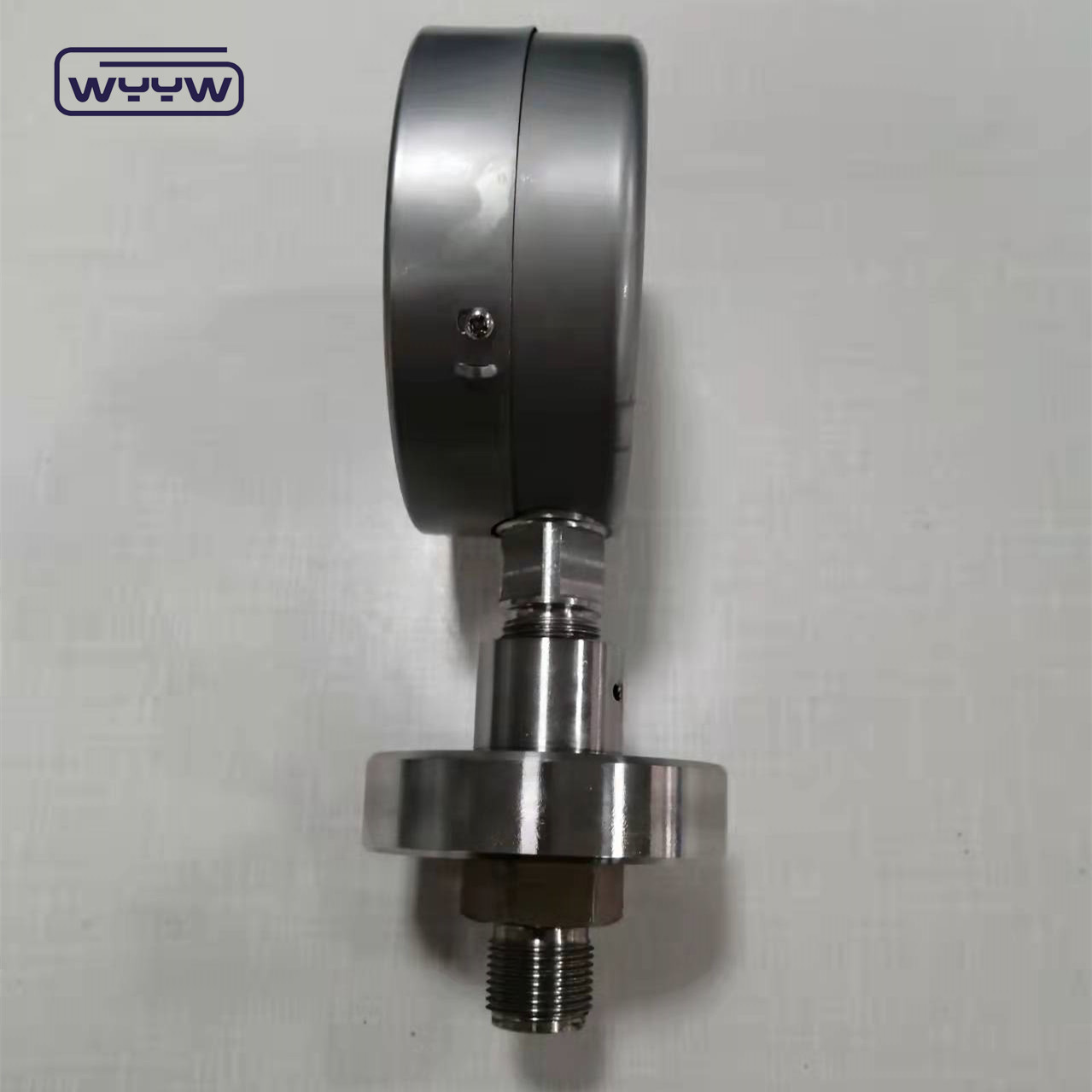

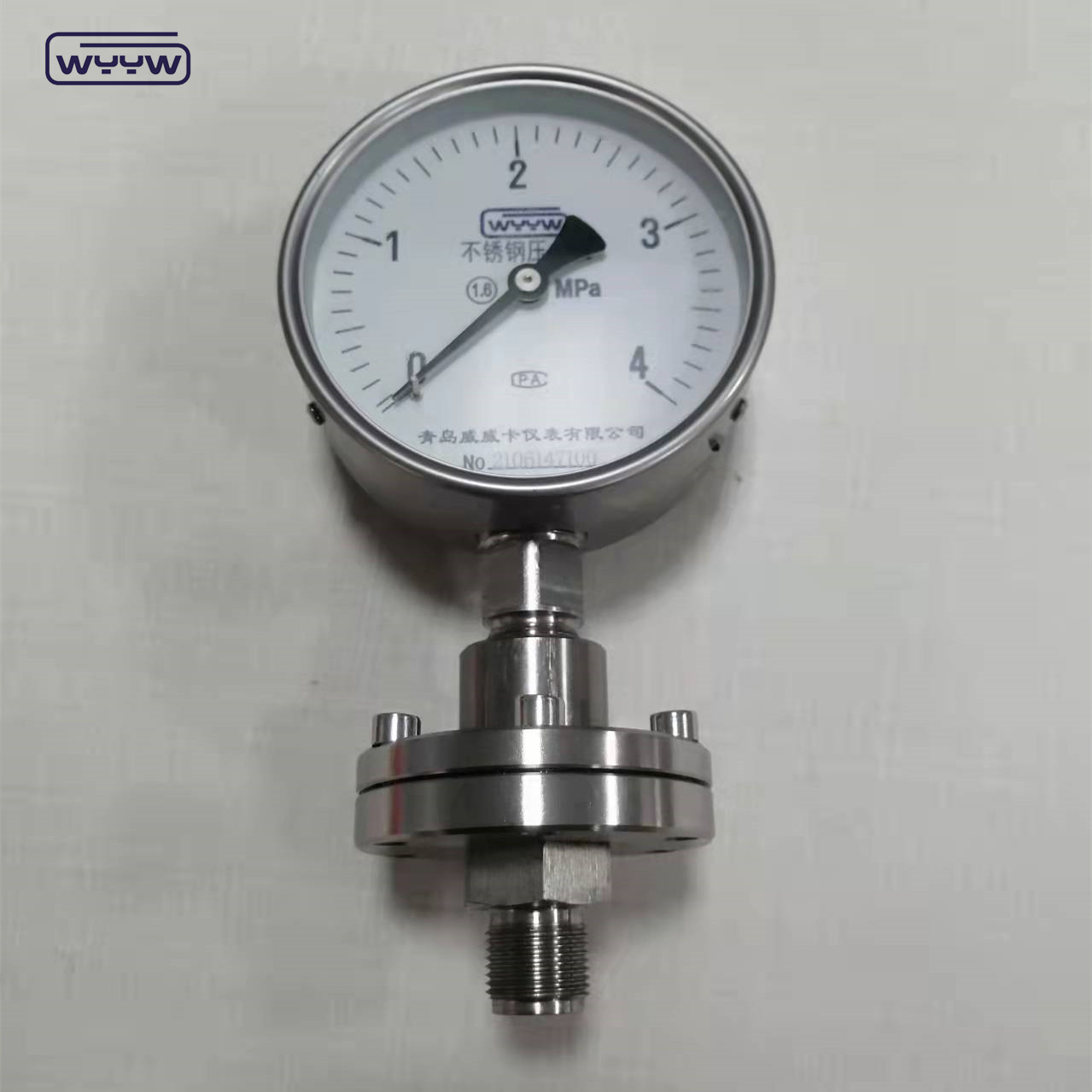

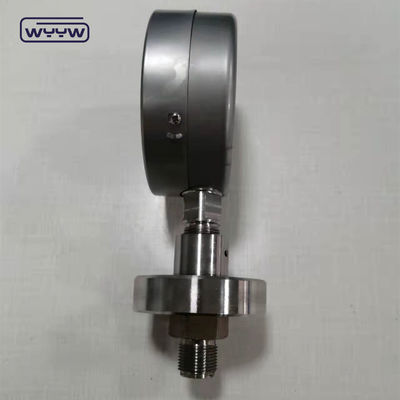

All Stainless Steel Indicator Pressure Gauge With Flange CE Approved

20 units
MOQ
$50.00/units 20-49 units
Price
All Stainless Steel Indicator Pressure Gauge With Flange CE Approved
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM, ODM
Dial Size: 6"(2.5",4" Optional)
Measuing Range: 0~6MPa
Accuracy: 1.6%
Warranty: 1 Year
Mounting: Bottom With Connection Or With Flange
Material: All Stainless Steel
Port: Qingdao
Highlight:

CE Indicator Pressure Gauge

,

Stainless Steel Indicator Pressure Gauge

,

Indicator Pressure Gauge With Flange
Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Certification: CE
Model Number: YTPF-150MG
Payment & Shipping Terms
Packaging Details: Each unite is packed in one paper box, or as customer's request.
Supply Ability: 1000000 Unit/Units per Month price of pressure indicator
Product Description



price of pressure indicator



Product Description



Dial size 2.5"(6.3mm),4"(100mm),6"(150mm)
Case

Black steel , SS
Pressure range 0.1-10MPa, other scale unite available
Ring Non, roll and bayonet type
Movement Brass, SS
Socket Brass,SS
Bourdon tube Phosphor bronze, SS
Diaphragm SS316
Flange SS316,SS304
Dial plate and pointer Aluminum
Window Glass, safe glass
Connection sizes 1/4" for 2.5" case, 3/8" & 1/2" for 4" and 6" case
Connection threads Metric thread, NPT,BSP(G,PF),BSPT(ZG,PT)
Flange type

Open flange, I-beam flange,

with angle type flange,clamp type flange
Liquid Dry, silicone, glycerine filled
Mounting Bottom with connection or with flange
Accuracy 2.5"(63mm)-2.5%; 4"(100mm),6"(150mm)-1.6%
Pressure limitation

Steady:3/4 x full scale value
Fluctuation:2/3 x full scale value

Short time: full scale value
Production Process

All Stainless Steel Indicator Pressure Gauge With Flange CE Approved 0

 All Stainless Steel Indicator Pressure Gauge With Flange CE Approved 1

 All Stainless Steel Indicator Pressure Gauge With Flange CE Approved 2

Packaging & Shipping

 All Stainless Steel Indicator Pressure Gauge With Flange CE Approved 3All Stainless Steel Indicator Pressure Gauge With Flange CE Approved 4





Company Information

 All Stainless Steel Indicator Pressure Gauge With Flange CE Approved 5All Stainless Steel Indicator Pressure Gauge With Flange CE Approved 6





FAQ

Why Choose Us?



1) Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.



2) Best After-sales Service : Our company provide best after-sale service all the time , forour goal is a long trade cooperation term.



3) Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated.



4) Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs.



5) Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price.





6) OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .



 If you are interested in our products, welcome to send inquiy !
