Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized

100 pieces
MOQ
$20.00/pieces 100-999 pieces
Price
Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM, ODM, OBM
Material: Shock Resistant Pressure Gauge
Original Place: Made In China
Dial Size: 60mm, Or Made As Requirements
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Mount: Bottom Mount
Oil Filled: Glycerin Or Silicon
Quality: 1 Year
Warranty: 1Y
Producing Experience: 10 Years
Connection Thread: G/M/BSP/NPT
Range: Customized
Port: QingDao,ShangHai,Ningbo, Guangzhou
Highlight:

Shock Resistant Hydraulic Jack Pressure Gauge

,

Glycerine Hydraulic Jack Pressure Gauge

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Model Number: YTN-60
Payment & Shipping Terms
Packaging Details: Each unit is packed in one paper box, 30 boxes in one carton . As customer requested.
Supply Ability: 100000 Piece/Pieces per Month shock resistant pressure gauge
Product Description

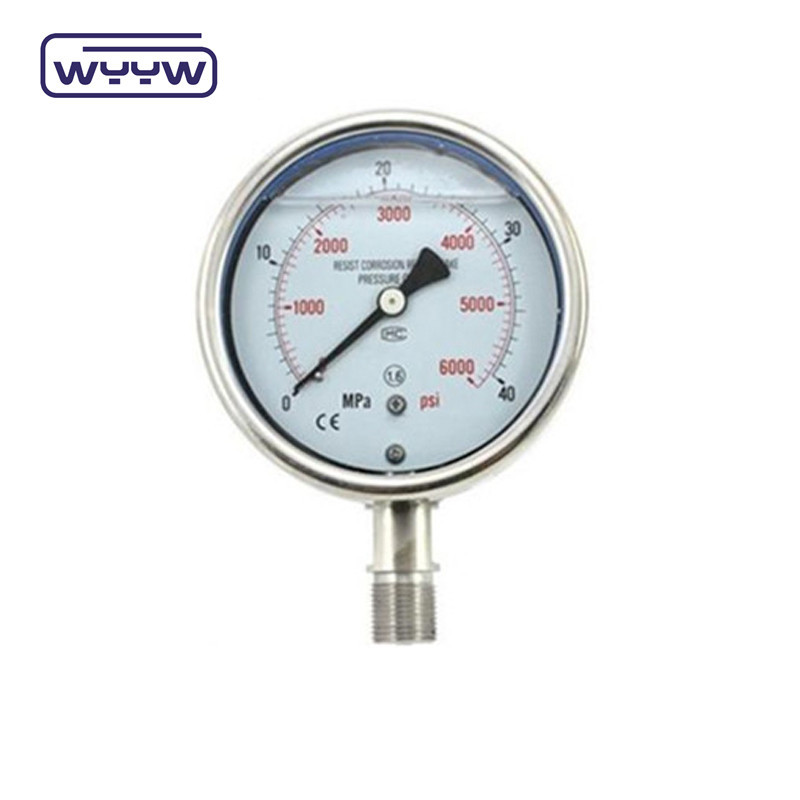

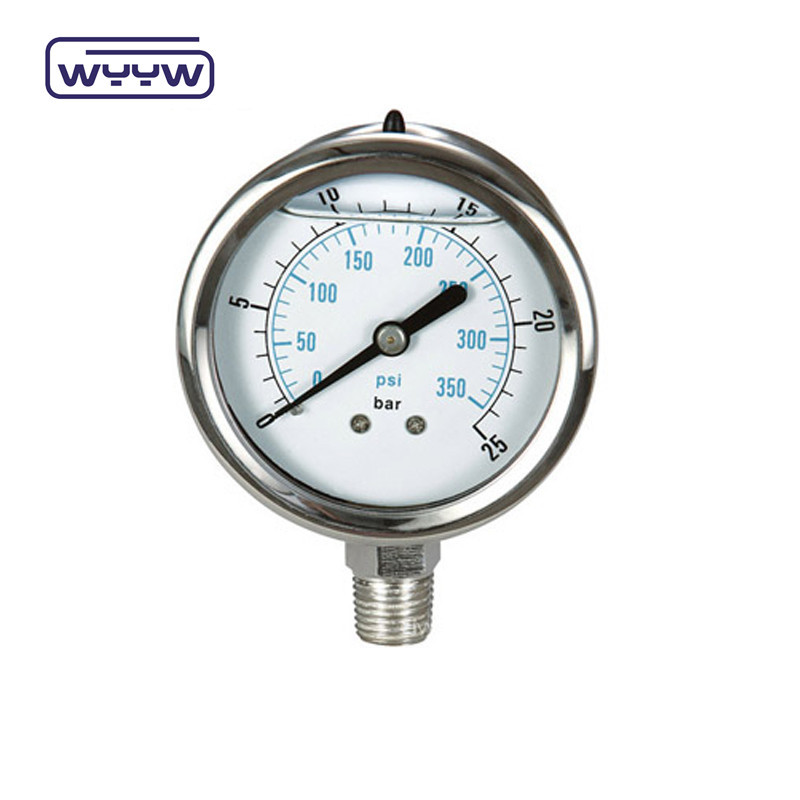

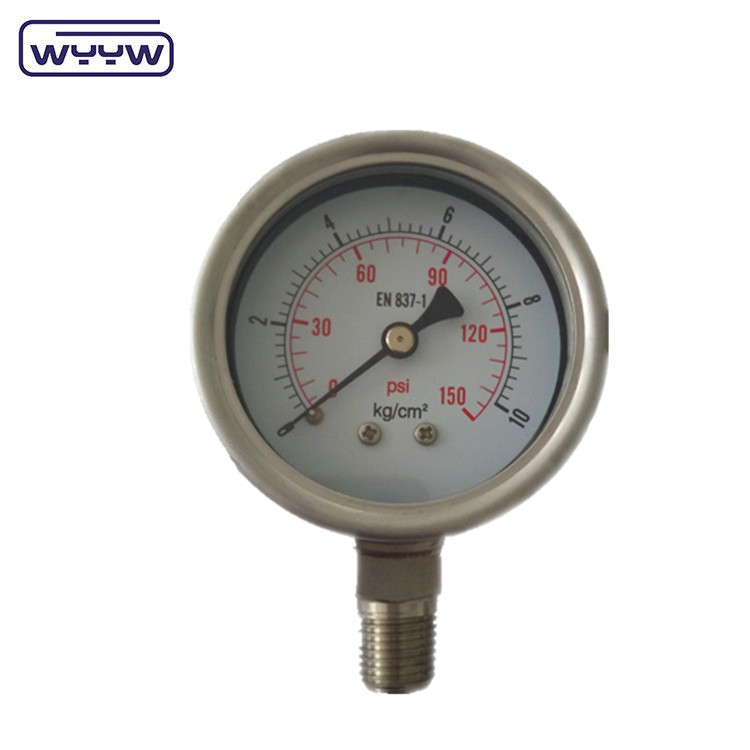

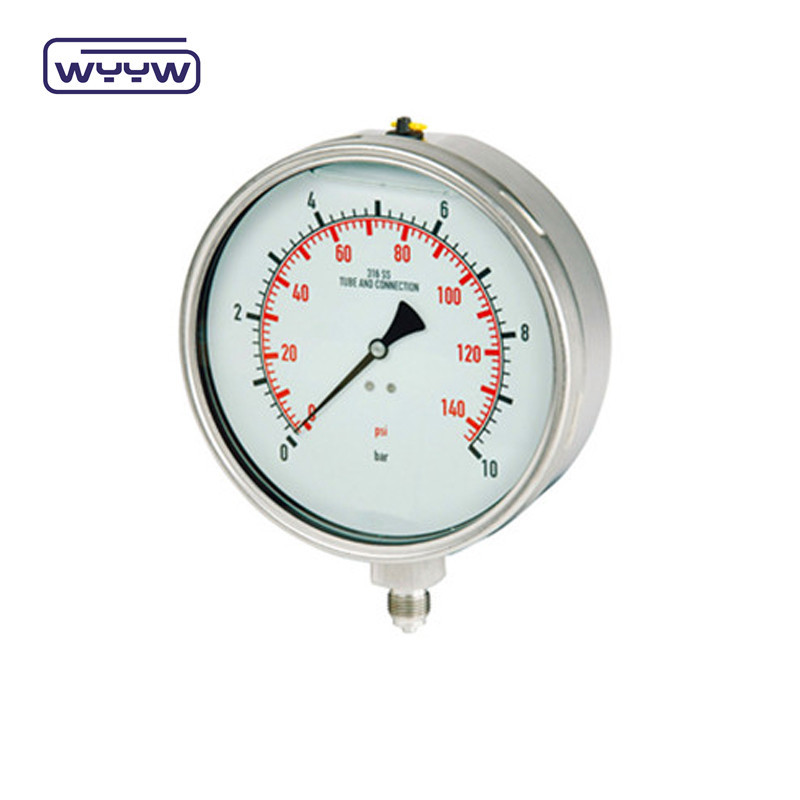

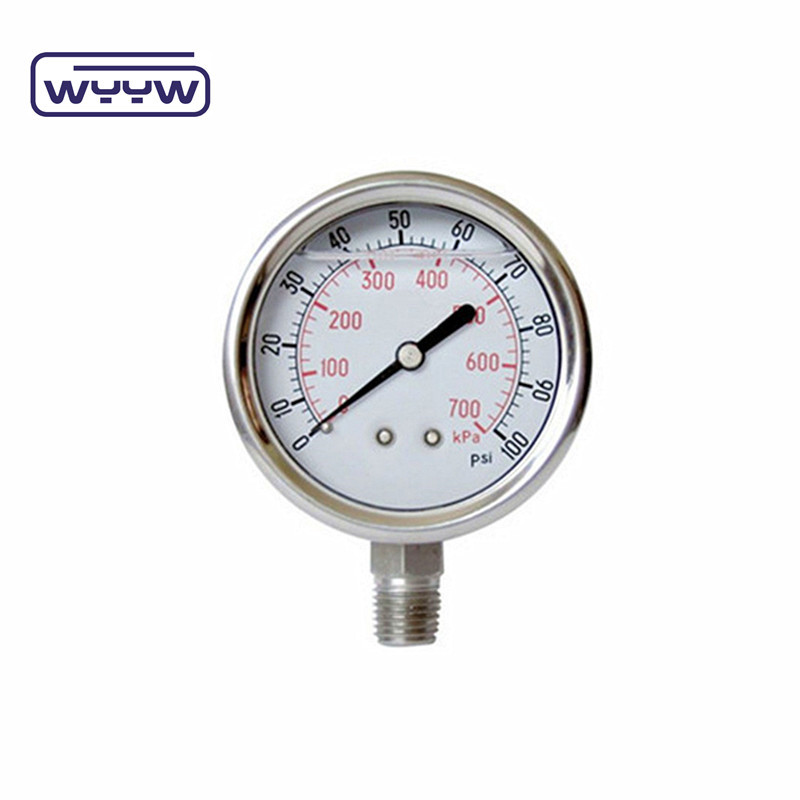

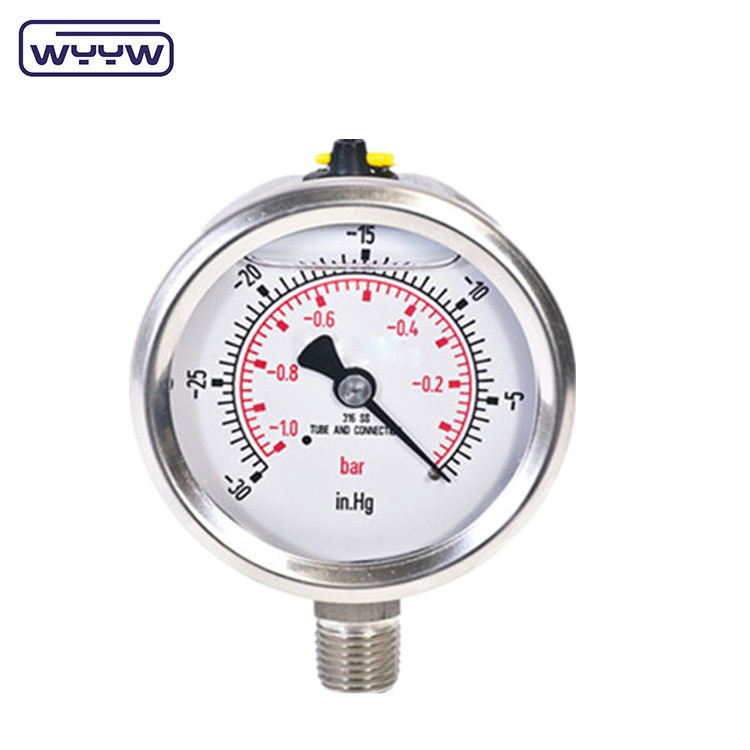

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge





shock resistant pressure gauge

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 0

Product Description

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 1

Name

shock resistant pressure gauge

Dials Size

60mm(or dail size made as demand)

Case

Stainless steel case

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

Gasket under the window

Movement

Brass

Socket

Brass

Bourdon tube

Phosphor Bronze

Dial plate and pointer

Aluminum

Window

Glass

Connection sizes

1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom (Or made as panle, back)

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 2



Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 3

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 4

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 5

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 6

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.



Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.



Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 7

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 8

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 9

Packaging & Shipping

Back Glycerine Shock Resistant Hydraulic Jack Pressure Gauge Range Customized 10

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
