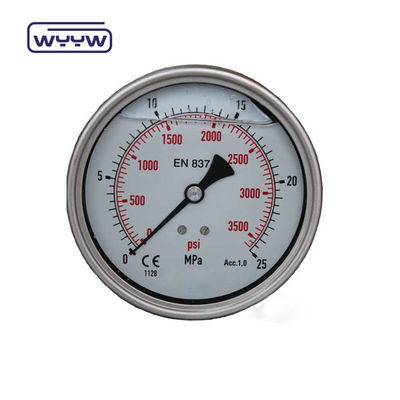

Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size

200 pieces
MOQ
$7.50/pieces 200-999 pieces
Price
Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM, ODM, OBM
Material: Stainless Steel Case
Original Place: Made In China
Dial Size: 100mm, Or Made As Requirements
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Mount: BACK
Warranty: 1Y
Quality: 1 Year
Accuracy: 2.5%
Port: QingDao,ShangHai,TianJin,NingBo
Highlight:

Hydraulic Jack Pressure Gauge Center Back Connection

,

Pressure Gauge Center Back Connection 100mm

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Model Number: YTN-100Z
Payment & Shipping Terms
Packaging Details: center back connection pressure gauge<br>Each unit is packed in one paper box, 30 box in one carton . As customer requested.
Supply Ability: 100000 Piece/Pieces per Month center back connection pressure gauge
Product Description

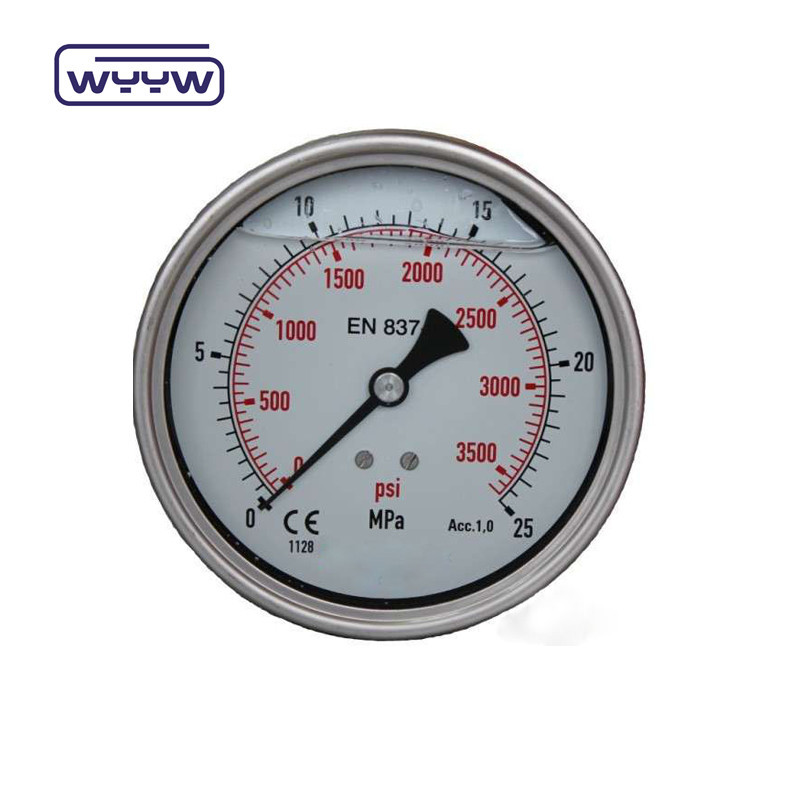

center back connection pressure gaugeHydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size 0

Product Description

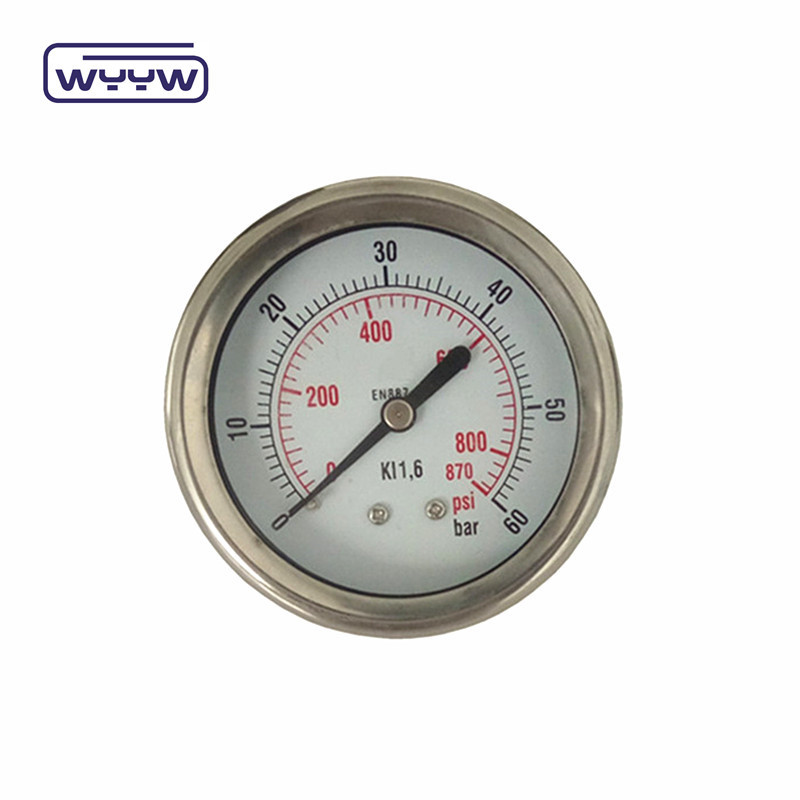

Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size 1

Name

Oil filled pressure gauge

Dials Size

40/50/63/100/150mm (or dail size made as demand)

Case

Stainless steel case

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

None

Movement

Brass

Socket

Brass

Bourdon tube

Bronze

Dial plate and pointer

Aluminum

Window

Acrylic / Plastic

Connection sizes

1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom/Back and panel

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

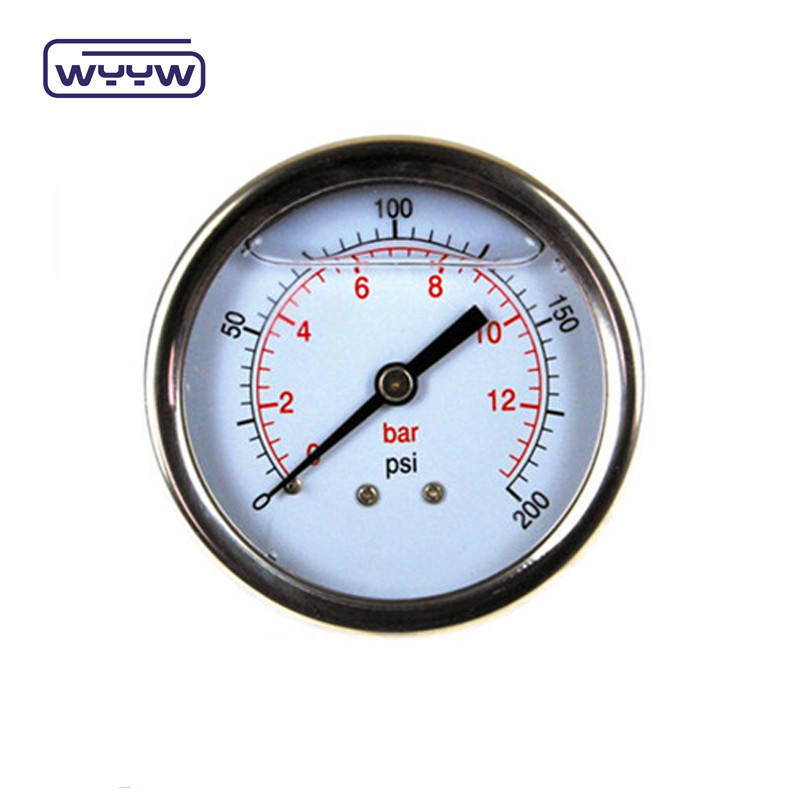

Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size 2

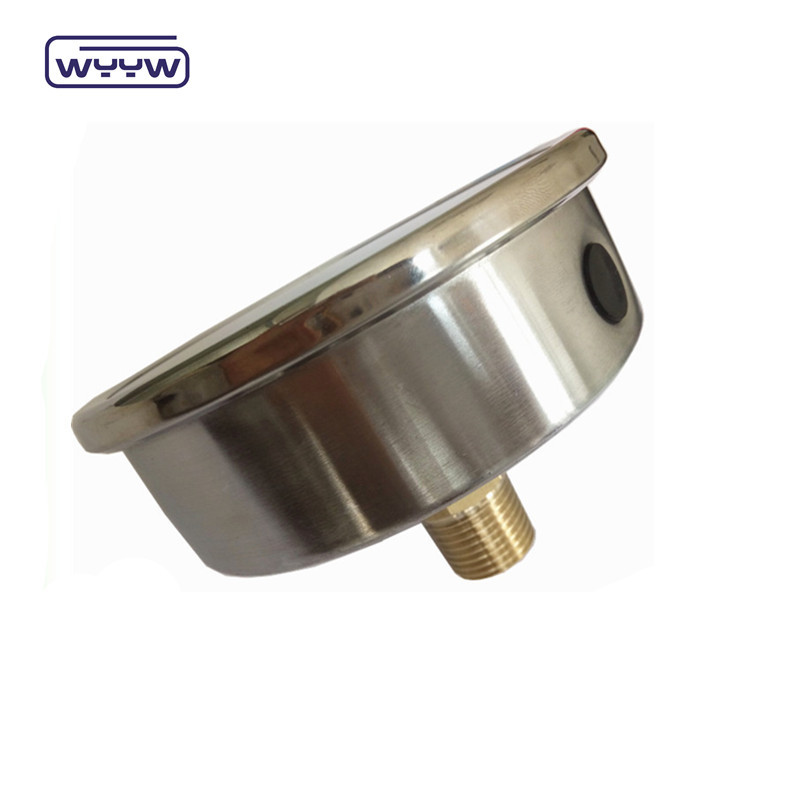

Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size 3

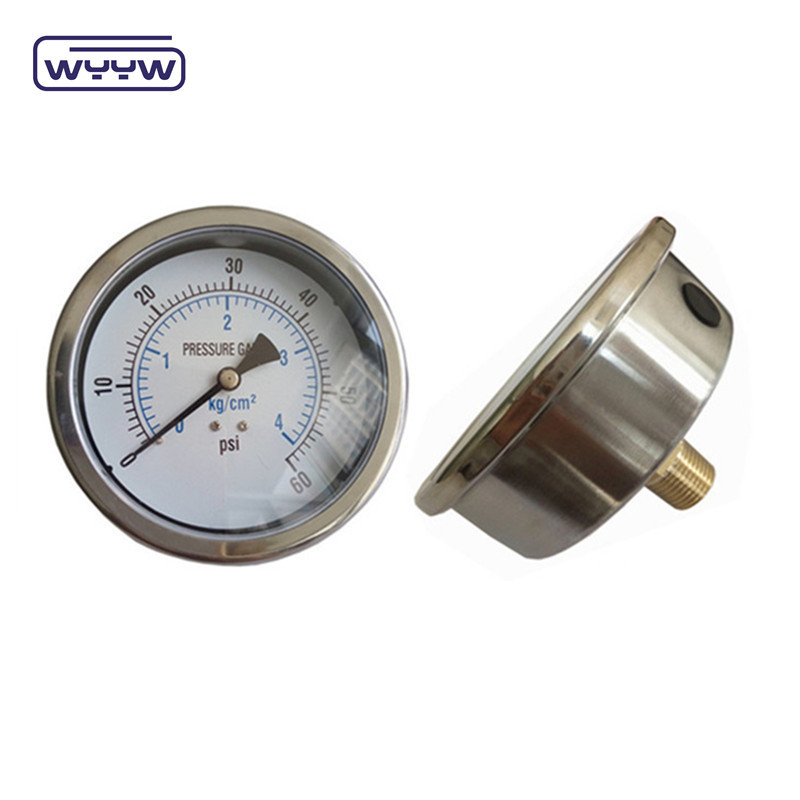

Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

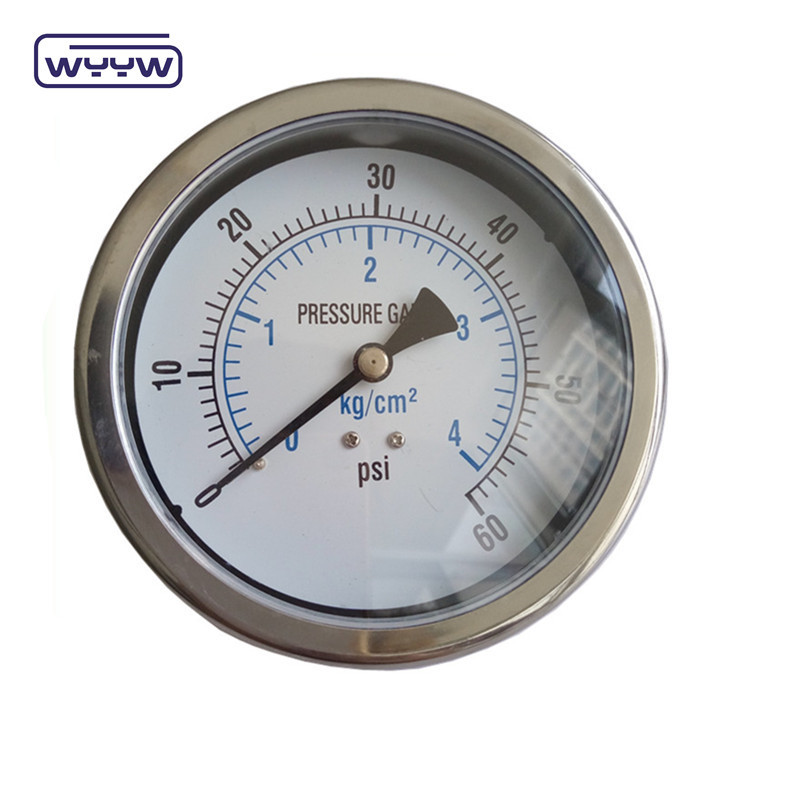

Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size 5

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.



Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.



Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size 6

Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size 7

Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size 8

Packaging & Shipping

Hydraulic Jack Pressure Gauge Center Back Connection 100mm Dial Size 9

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
