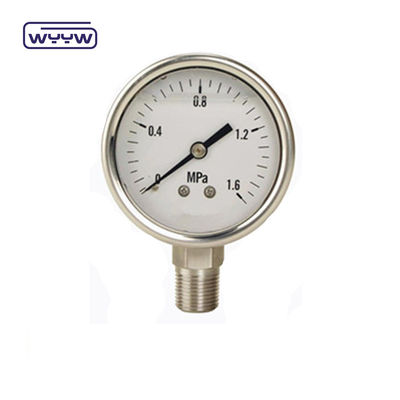

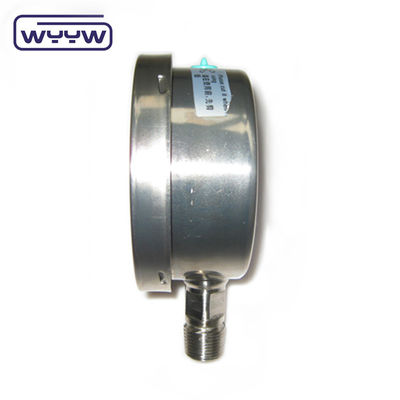

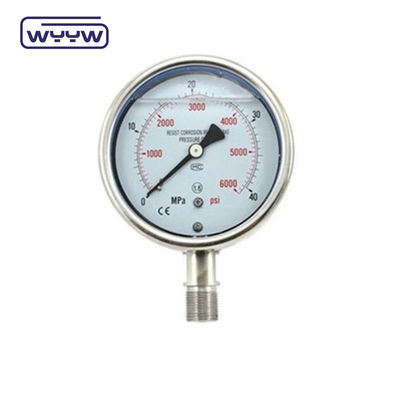

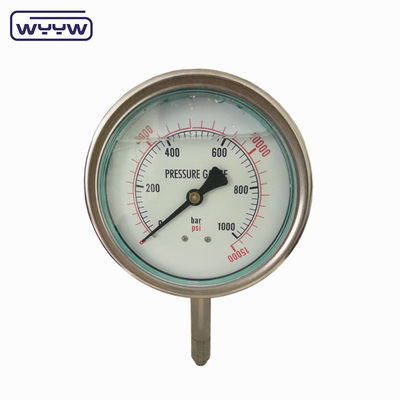

Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi

200 pieces
MOQ
$6.80/pieces 200-499 pieces
Price
Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM
Product Name: Brass Connector Pressure Gauge
Size: 100mm
Material: Stainless Steel Case, Brass Internals
Accuracy: 1.6%
Pressure Range: 0~250Mpa,bar,mbar,etc
Thread: 1/2''PT/NPT/G/M
Type: Measuring Instruments
Application: Glycerine
Case: Stainless Steel
Port: QINGDAO,SHANGHAI,NINGBO
Highlight:

Brass Internals Tire Hydraulic Manometer

,

Mpa psi Tire Hydraulic Manometer

,

Stainless Steel Case Tire Hydraulic Manometer

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Model Number: YTN-100
Payment & Shipping Terms
Packaging Details: Each gauge packed in one paper box <br>With outer carton box <br>or packed accordiong to client's requirements
Supply Ability: 100000 Piece/Pieces per Month pressure gauge Mpa psi
Product Description

pressure gauge Mpa psiDial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi 0

Product Description

Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi 1

Name

brass connector pressure gauge

Dials Size

100mm (or dail size made as demand)

Case

Stainless steel case

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

Gasket under the window

Movement

Brass

Socket

Brass

Bourdon tube

Phosphor Bronze

Dial plate and pointer

Aluminum

Window

Glass; Plastic

Connection sizes

1/8" for 1.5; 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom (Or made as panle, back)

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full scale value
Short time:full scale value

Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi 2

Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi 3

Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi 5

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.



Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.



Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi 6Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi 7Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi 8

Packaging & Shipping

Dial Tire Hydraulic Manometer Pressure Gauge With Brass Internals And Stainless Steel Case Mpa Psi 9

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
