Name: 50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy
Brand: Qingdao Dazefengyang Meter& Welding Instruments Co., Ltd.
SKU: Y-50
Price: 500.80 USD
Availability: InStock

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy

1000 pieces

MOQ

$2.80/pieces 1000-4999 pieces

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Size: 2" (50mm)

Material: Black Steel Case And Brass Internals

Warranty: 1 Year

Mount: Radial Mount

Accuracy: 2.5%

Customized Support: OEM

Keyword: Pressure Gauge

Port: QingDao,ShangHai

Highlight:

Medical Oxygen Gas Cylinder Pressure Gauge

Medical Oxygen Pressure Gauge 50mm

50mm Pressure Gauge

Basic Infomation

Place of Origin: Shandong, China

Brand Name: WYYW

Model Number: Y-50

Payment & Shipping Terms

Packaging Details: medical oxygen pressure gauge<br>Each unit is packed in one paper box, 100 box in one carton . As customer requested.

Supply Ability: 100000 Piece/Pieces per Month medical oxygen pressure gauge

Gallery

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy

Product Description

medical oxygen pressure gauge

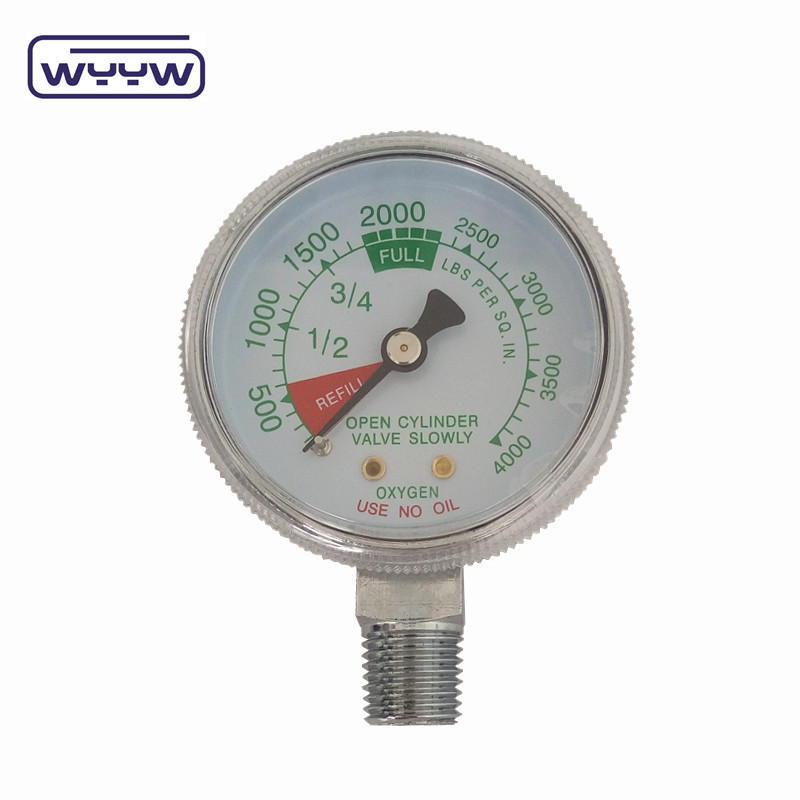

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 1

Name	pressure gauge
Dials Size	1.5"(40mm), 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)
Case	Black steel, ABS or chrome plated
Pressure range	0 -250Mpa,other scale units bar, psi, kg/cm2 etc.optional
Ring	Non, black steel or chrome plated
Movement	Brass
Socket	Brass
Bourdon tube	Phosphor Bronze
Dial plate and pointer	Aluminum
Window	Glass or Plastic
Connection sizes	1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
Connection threads	Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting	Bottom,back and panel
Accuracy	1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5% 4(100mm) and 6 (150mm)-1.6%
Pressure limitation	Steady: 3/4x full scale value Fluctuation:2/3x full sacle value Short time:full scale value

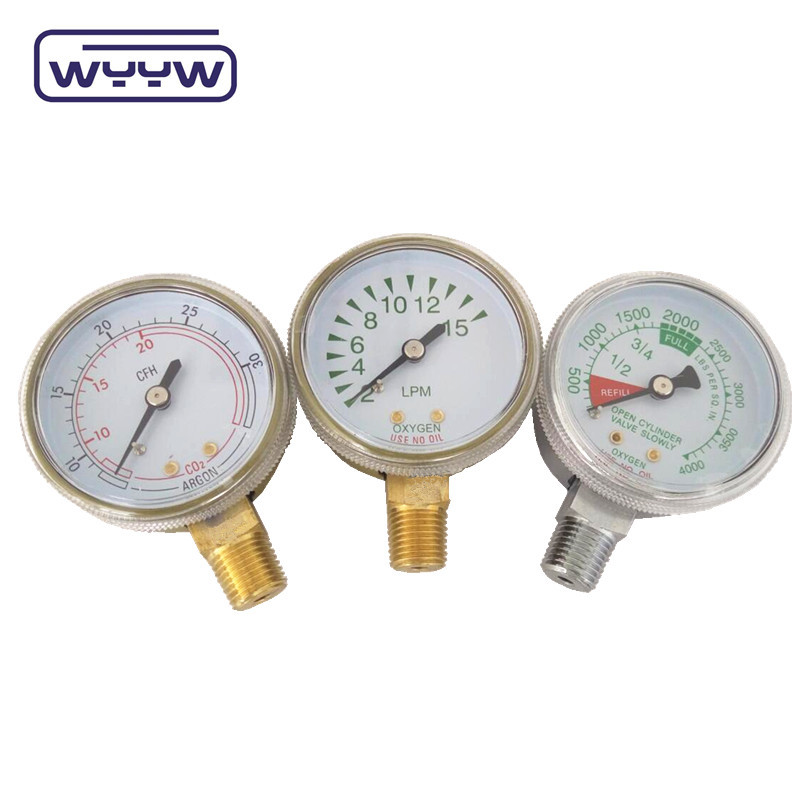

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 2

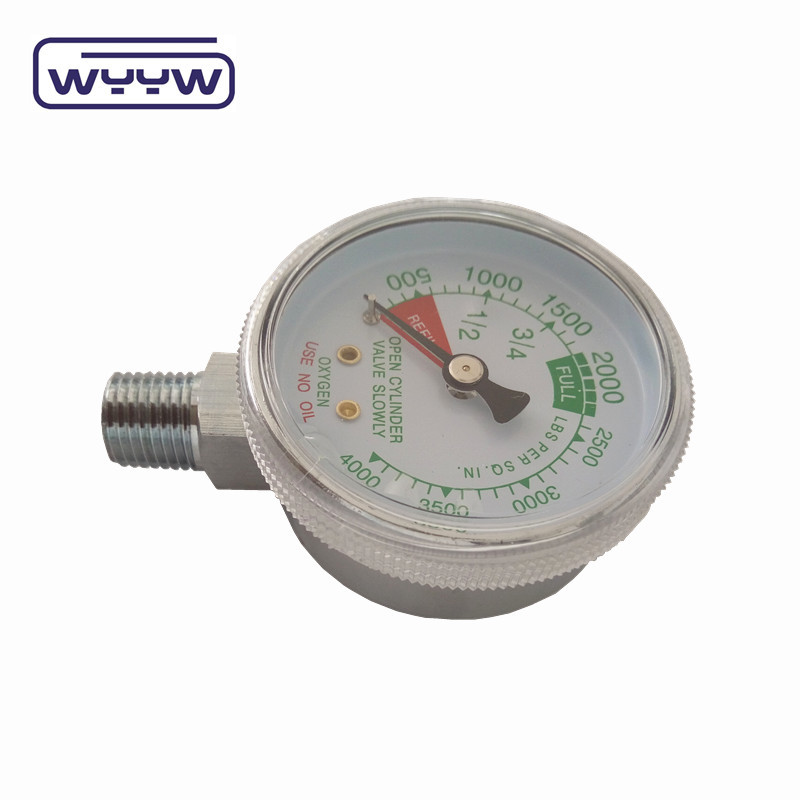

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 3

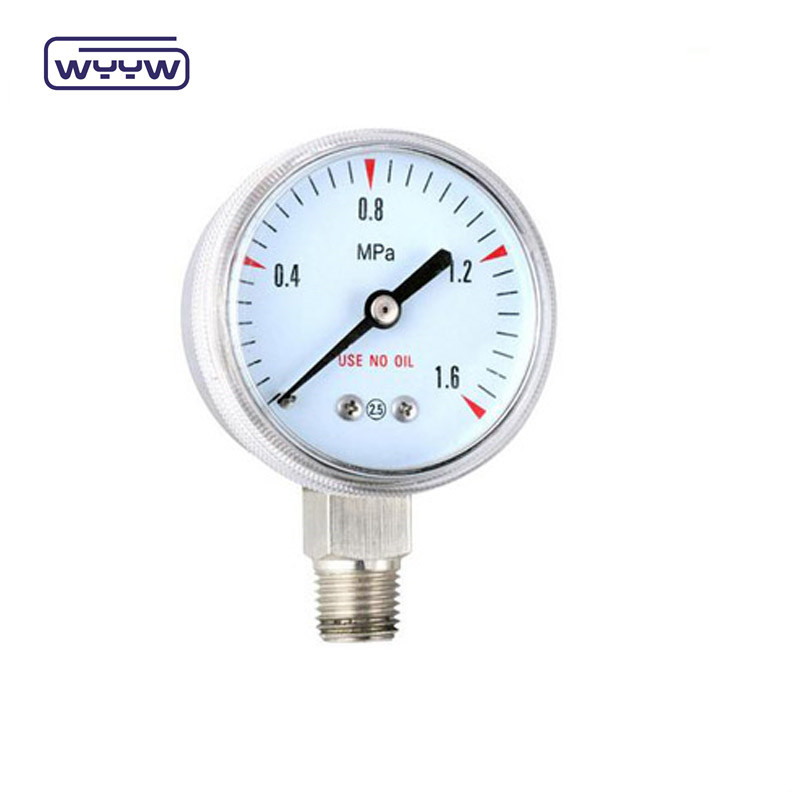

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 4

Outdoor and severe ambient and process conditions
Use where harmful vibration and pulsation are present
Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

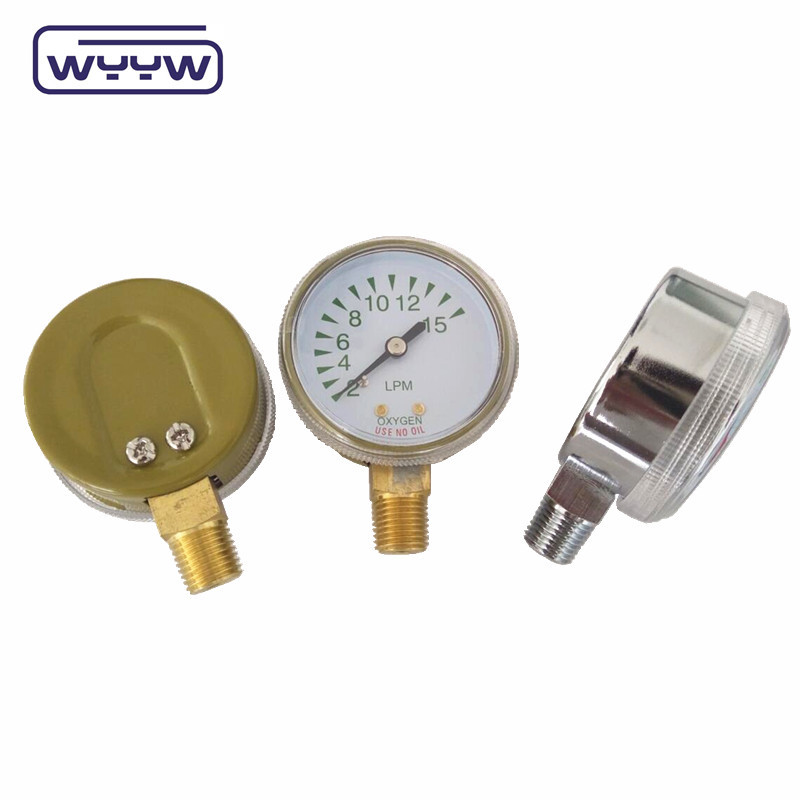

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 5

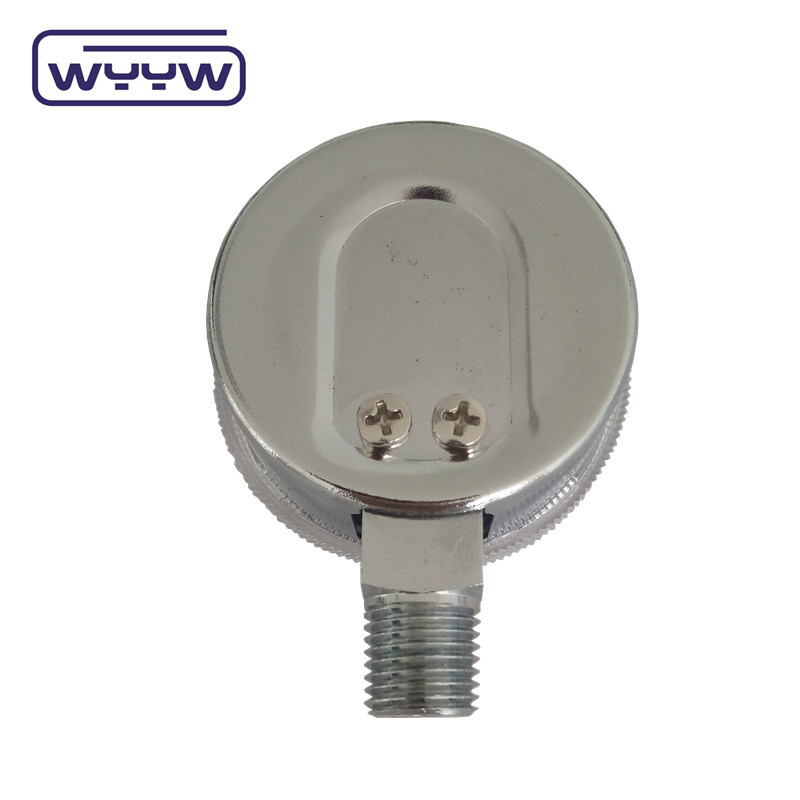

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 6

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 7

Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;
Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;
Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;
Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;
OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 8

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 9

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 10

50mm Medical Oxygen Gas Cylinder Pressure Gauge 2.5% Accuracy 13
