Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty

1000 pieces
MOQ
$1.60/pieces 1000-2999 pieces
Price
Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM, ODM, OBM
Material: Black Steel Case
Original Place: Made In China
Dial Size: 100mm, Or Made As Requirements
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Mount: Bottom Mount
Quality: 1 Year
Payment: Various Payment Methods
Warranty: 1Y
Producing Experience: 10 Years
Port: QingDao,ShangHai,Ningbo,Guangzhou
Highlight:

Wall Mount Pressure Gauge 100mm

,

Wall Mounted Pressure Gauge 100mm Dial

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Model Number: Y-100
Payment & Shipping Terms
Packaging Details: Digital pressure gauge specifications for water<br>Each unit is packed in one paper box, 30 box in one carton . As customer requested.
Supply Ability: 100000 Piece/Pieces per Month Pressure Gauge
Product Description

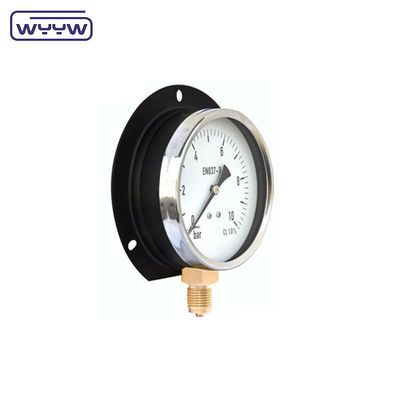

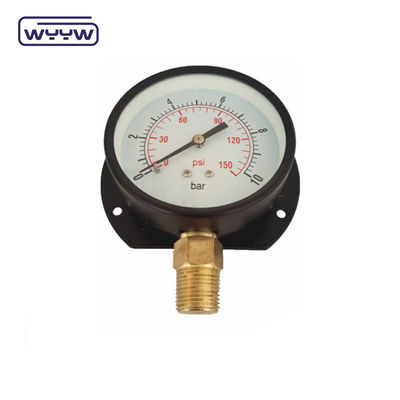

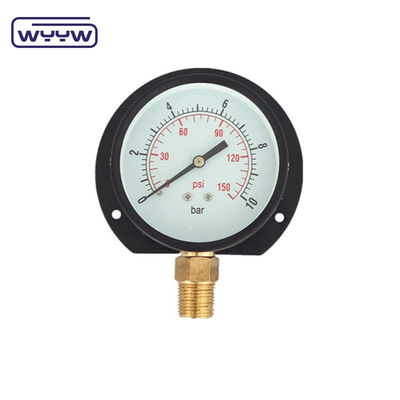

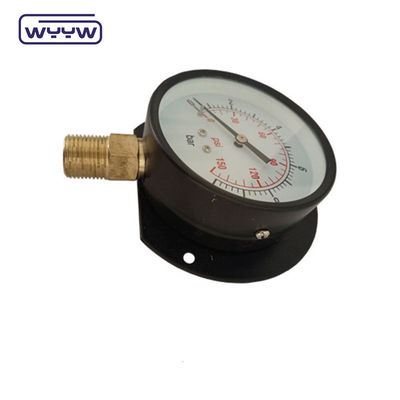

Black steel type wall mounted pressure gauge 100mm Dial size

Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty 0

Product Description

Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty 1

Name

Black steel type wall mounted pressure gauge 100mm Dial size

Dials Size

100mm (or dail size made as demand)

Case

Black steel case

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

None

Movement

Brass

Socket

Brass

Bourdon tube

Bronze

Dial plate and pointer

Aluminum

Window

Glass

Connection sizes

1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom (Or made as panle, bottom)

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty 2

Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty 3

Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty 5

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.



Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.



Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty 6

Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty 7

Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty 8

Packaging & Shipping

Black Steel Type Wall Mounted Pressure Gauge 100mm Dial 1 year Warranty 9

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
