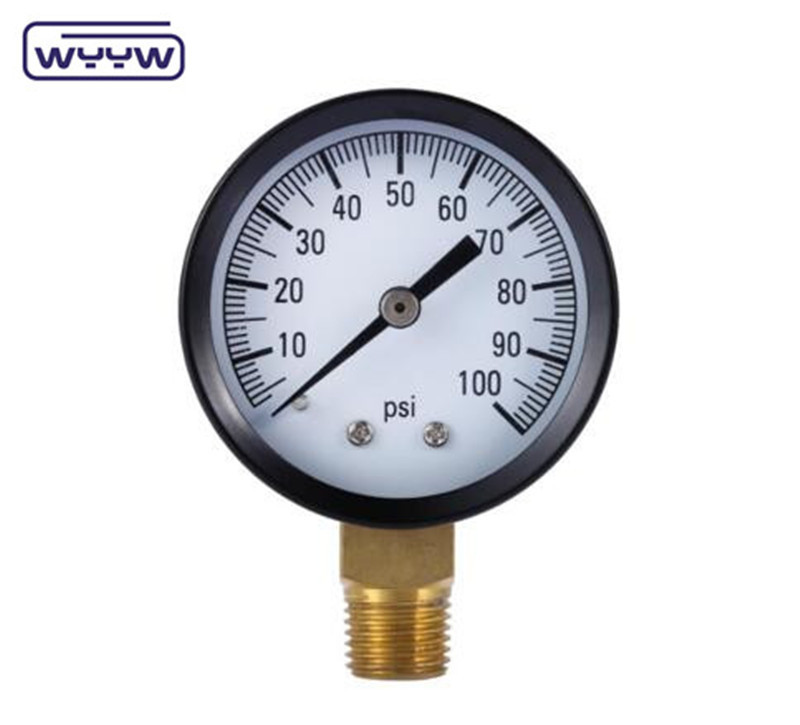

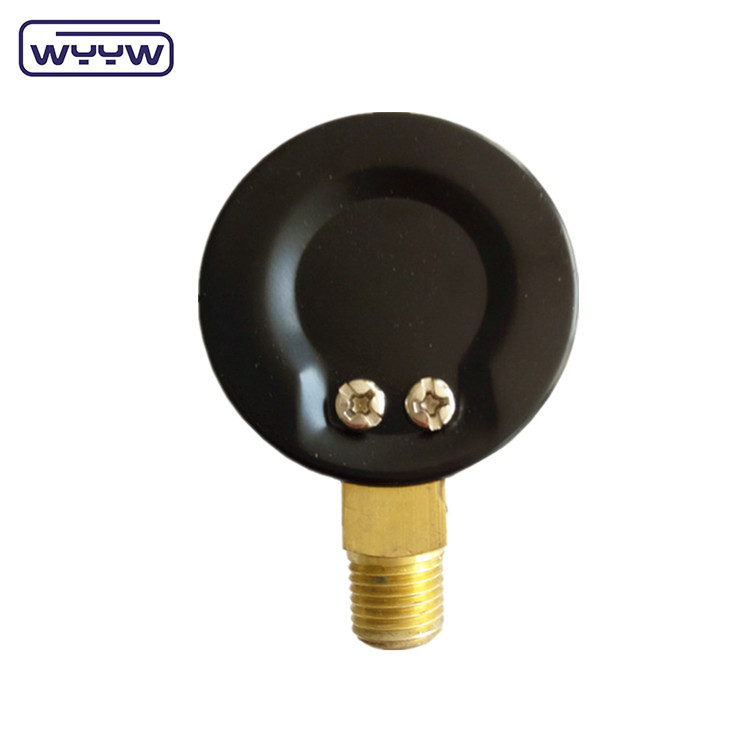

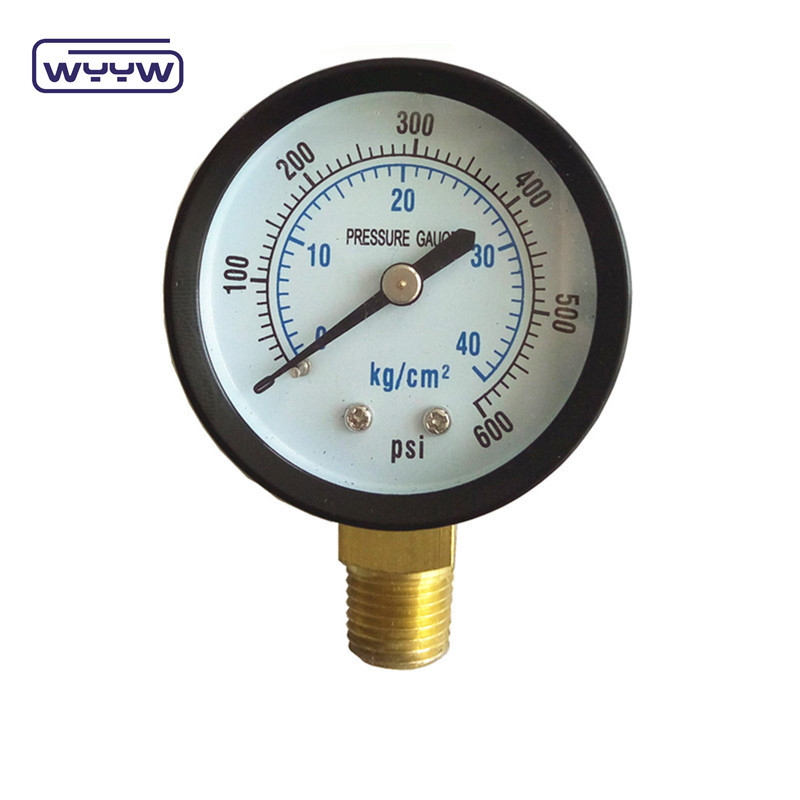

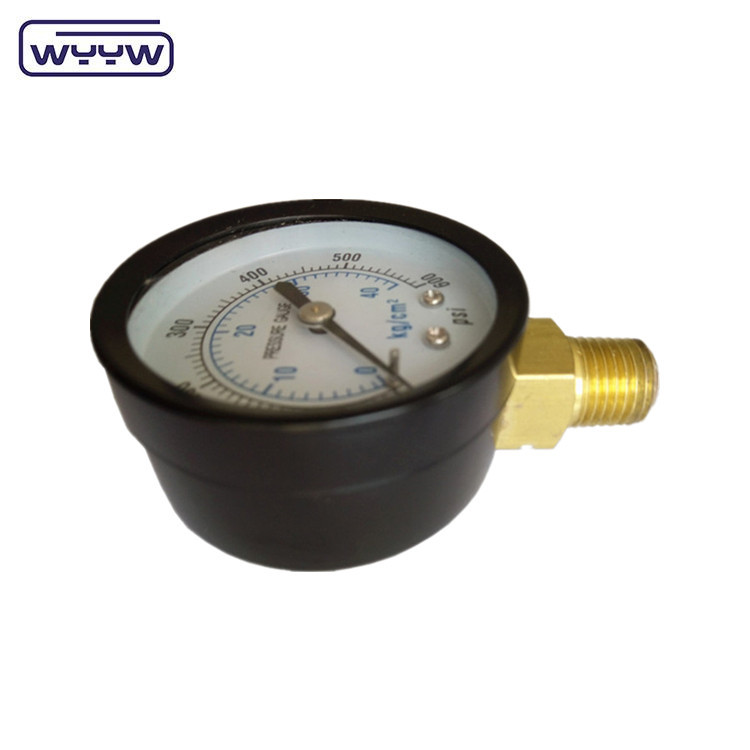

63mm dry 1/4" NPT Lower Mount Pressure Gauge

1000 pieces
MOQ
$1.40/pieces 1000-4999 pieces
Price
63mm dry 1/4" NPT Lower Mount Pressure Gauge
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM
Product Name: Bottom Pressure Gauge
Material: Black Steel Case
Original Place: Made In China
Dial Size: 60mm
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Mount: Bottom
Quality: 1 Year
Payment: Various Payment Methods
Producing Experience: 10 Years
Accuracy: 2.5%
Port: QingDao,ShangHai
Highlight:

63mm Lower Mount Pressure Gauge

,

Dry Lower Mount Pressure Gauge

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Model Number: Y-60
Payment & Shipping Terms
Packaging Details: Lower Mount Pressure Gauge<br>Each unit is packed in one paper box, 30 boxes in one carton . As customer requested.
Supply Ability: 100000 Piece/Pieces per Month Lower Mount Pressure Gauge
Product Description

Lower Mount Pressure Gauge63mm dry 1/4" NPT Lower Mount Pressure Gauge 0

Product Description

63mm dry 1/4" NPT Lower Mount Pressure Gauge 1

Name

bottom pressure gauge

Dials Size

60mm (or dail size made as demand)

Case

Black steel case

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

None

Movement

Brass

Socket

Brass

Bourdon tube

Phosphor Bronze

Dial plate and pointer

Aluminum

Window

Glass

Connection sizes

1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom (Or made as panle, back)

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

63mm dry 1/4" NPT Lower Mount Pressure Gauge 2

63mm dry 1/4" NPT Lower Mount Pressure Gauge 3

63mm dry 1/4" NPT Lower Mount Pressure Gauge 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

63mm dry 1/4" NPT Lower Mount Pressure Gauge 5
