1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale

1000 pieces
MOQ
$1.50/pieces 1000-4999 pieces
Price
1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM
Material: Black Steel
Original Place: Made In China
Dial Size: 50mm, Or Made As Requirements
Pressure Range: Made As Requirments, Mpa, Bar, Psi, Kg Etc.
Mount: Back Or Bottom Mount
Payment: Various Payment Methods
Producing Experience: 10 Years
Port: QingDao,ShangHai
Highlight:

1.5inches pressure gauge

,

bottom connection pressure gauge

Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Certification: CE,ISO
Model Number: Y-40
Payment & Shipping Terms
Packaging Details: 40mm pressure gauge manometer<br>Each unit is packed in one paper box, 30 box in one carton . As customer requested.
Supply Ability: 100000 Piece/Pieces per Month 40mm pressure gauge manometer
Product Description

40mm pressure gauge manometer

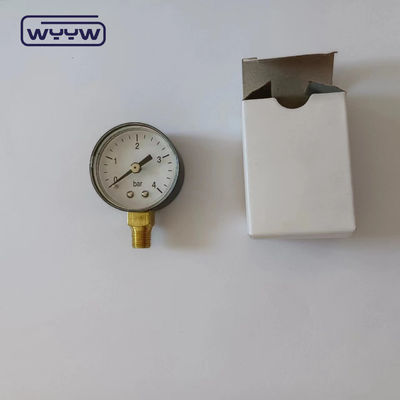

1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale 0

Product Description

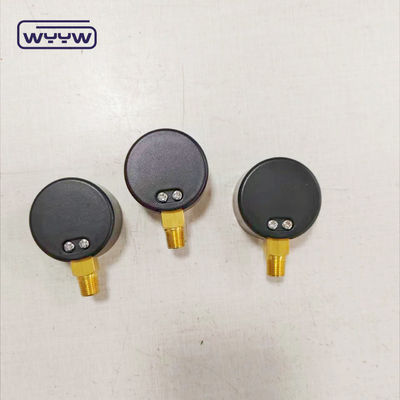

1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale 1

Name

High presure gauge from China

Dials Size

60mm (or dail size made as demand)

Case

Black steel case

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

None

Movement

Brass

Socket

Brass

Bourdon tube

Phosphor Bronze

Dial plate and pointer

Aluminum

Window

Glass

Connection sizes

1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Back (Or made as panle, bottom)

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

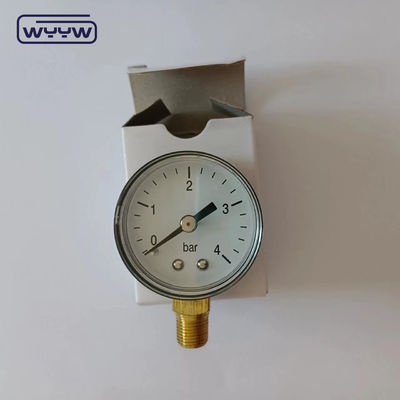

1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale 2

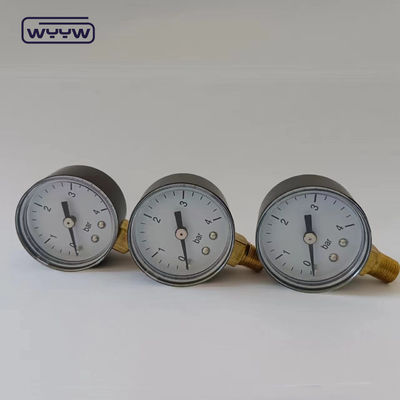

1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale 3

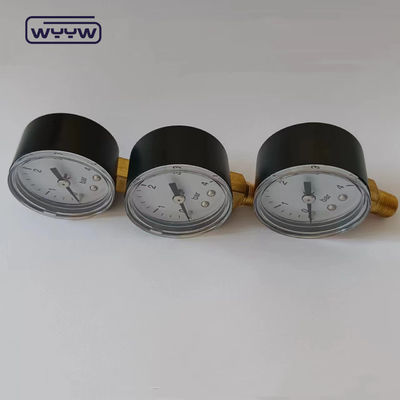

1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

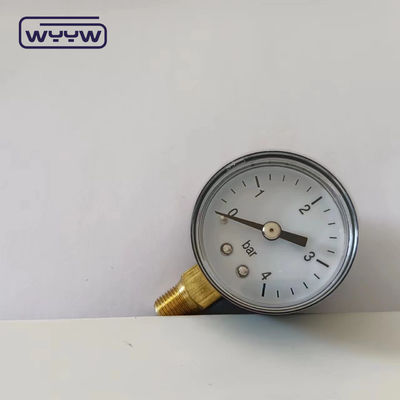

1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale 5

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.



Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.



Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale 6

1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale 7

1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale 8

Packaging & Shipping

1.5inches 40mm high quality pressure gauge manometer cheap pressure gauge bottom connection factory direct sale 9

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
