63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection

20 pieces
MOQ
$10.00/pieces
Price
63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Black Steel Case & Brass Conenction
Connection: Bottom
Pressure Range: Micro Low Pressure
Accuracy: 2.5%
Dial Size: 63mm
Port: Qingdao
Basic Infomation
Place of Origin: Shandong, China
Brand Name: WYYW
Certification: CE ISO
Model Number: YE-63
Payment & Shipping Terms
Packaging Details: Each unit in one paper box,30 boxes in one carton.As customer requested.
Delivery Time: 20-30 days
Payment Terms: T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Product Description

63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection 0

Product Description

63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection 1

Name

Capsule/ Bellows/ Low pressure manometer

Dials Size

63/100/150mm (or dail size made as demand)

Case

Black Steel,Stainless steel

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

Gasket under the window

Movement

Brass,Stainless Steel

Socket

Brass,Stainless Steel

Bourdon tube

Phosphor Bronze,Stainless Steel

Dial plate and pointer

Aluminum

Window

Glass; Safe Glass

Connection sizes

1/8" for 1.5; 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom/ Back

Liquid

dry, silicone or glycerine filled

Accuracy

2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection 2

63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection 3

63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection 5

Company Information

Qingdao DaZeFengYang are diverse, high-quality, competitively priced, and accompanied by excellent customer service. Here are a few suggestions:

  1. "which, combined with our swift sales and exceptional after-sales support, redefine our company's commitment to excellence."
  2. "resulting in a comprehensive product range, competitive pricing, and prompt deliveries, all backed by efficient sales and after-sales services, setting a new benchmark for our company."
  3. "leading to a broad array of products at competitive prices and swift deliveries, supported by efficient sales and after-sales services, redefining our company's approach."
  4. "resulting in an extensive product lineup, competitive pricing, and efficient deliveries, all complemented by fast sales and after-sales service, showcasing our company's dedication to customer satisfaction."

You can choose the option that best fits the tone and style you want to convey for your message.

attractive to cust63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection 6omers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.



Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection 7

63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection 8

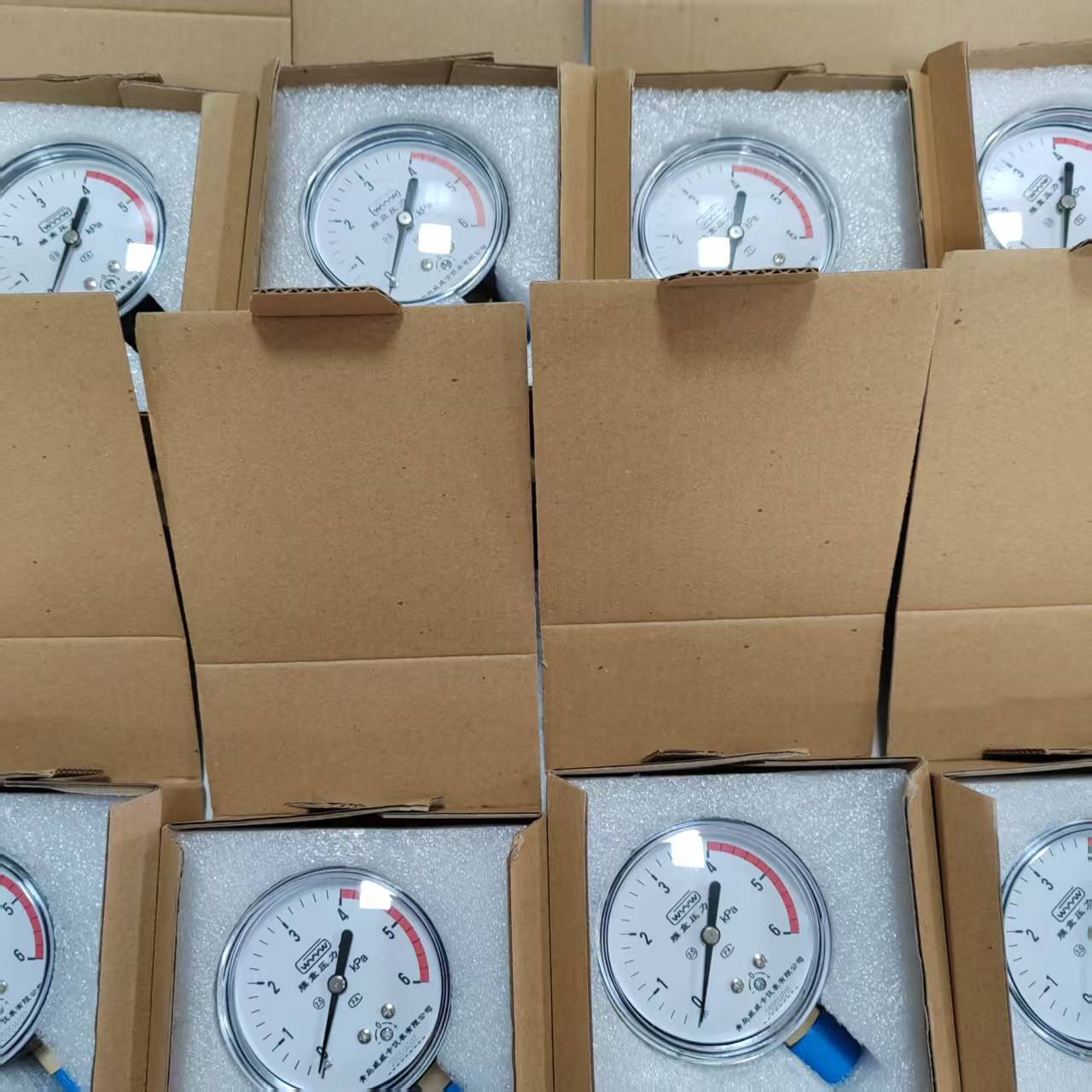

Packaging & Shipping

63mm capsule pressure gauge bellows manometer kpa cmH2O bottom connection 9

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
